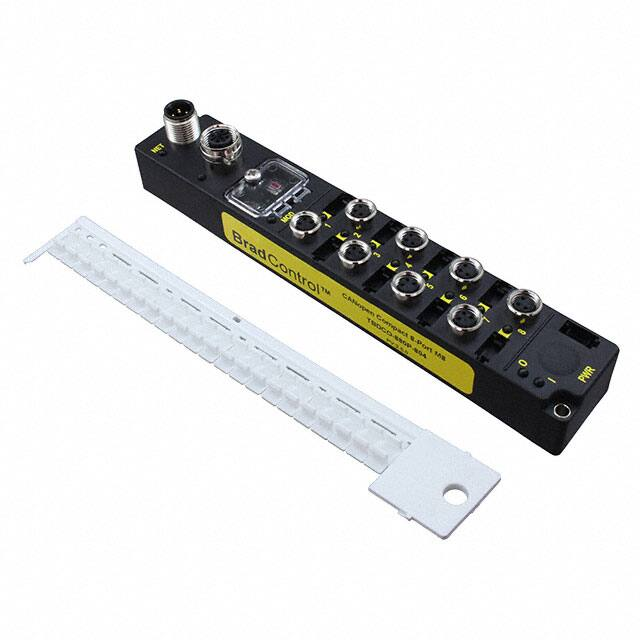

The Brad® HarshIO IP67 I/O modules provide a reliable solution for connecting industrial controllers to I/O devices in harsh environments Contained in an IP67 rated housing, Brad I/O modules can be machine mounted and are able to withstand areas where liquids, dust or vibration may be present. This makes them ideally suited for many applications including material handling equipment and automated assembly machinery. Brad® HarshIO 300 sCO Compact 30mm CANopen Digital I/O Modules   Advanced module features such as short-circuit detection, and visible diagnostic LEDS offer easy-of-use and operation simple. Following traditional industrial fieldbus practices, standard M8 connectors from sensing devices or actuators plug directly into the I/O module. An environmentally sealed IP67 connection between the I/O module and the CAN network is created using the M12 Ultra-Lock® connection system which is built into the Brad HarshIO module. Features and Benefits Rated IP67 for harsh environments Supports PNP and NPN input devices Compact 30mm design allows space savings for direct machine mount applications Choose from several I/O configuration module versions Overmolded module electronics Visible diagnostic LEDs provide maintenance personnel with the ability to easily determine I/O, module and network status Metallic connectors Advanced diagnostics Standard hole housing pattern allows for interchangeability with popular I/O modules Short-circuit diagnostics per I/O channel Tested to vibrations and shocks Several I/O configurations to choose including fixed, universal and user configurable versions Complete module and channel diagnostics supported via PROFIBUS Supports CANopen DS401 profile CANopen Certified Compact 30mm HarshIO Module Module addressing: 1 – 99 by rotary switches or 1 – 125 by Set_Slave_ Address command Bus speed up to 1 Mbps Built-in 2-port CAN for bus wiring topology Module and Input Power (I): Output Power (O): Diagnostics Error (MOD) Green - power present Green - power present Green - no error Off - power not connected Off - power not connected Single flash - warning limit reached Digital Input/Output (Ix/Ox): CANopen Network Status (NET) Triple flash - sync error Green - input/output on Green - operational Red - bus off Red - input/output fault Blinking - pre-operational Off - input/output off Single flash - stopped Module power supply via CAN bus Applications Machine tool industry Material handling systems Filling and packaging machines Steel industry LED Indicators Double flash - error control event Brad® HarshIO 300 sCO Specifications TECHNICAL INFORMATION I/O Configurations: 8 digital channels, fully configurable through ESD file Input Type: Compatible with dry contact, PNP or NPN, 2/3-wire sensors Electronic short circuit protection Protection: IP67 according to IEC 60529 I/O Connectors: Female, M8, 3-pole Input Delay: 2.5 ms default or configurable through CANopen object parameter Approvals: CE, UL, cUL, CANopen Certification Bus Connectors: Bus In: Male, M12, A-Coded, 5-pole Bus Out: Female, M12, A-Coded, 5-pole Power Connectors: NO - Power supply via CAN bus Power Requirements: Module input power: 24V DC Module output power: 24V DC (16 to 28V), 4.0A max per module Communication Rate: Auto baud, All CAN baud rates up to 1 MBaud Address Settings: 1 – 99 by 2 rotary switches Fieldbus Specifications: CANopen Slave, DS401 profile I/O data acces method according Synchronous Acyclic, Synchronous (Sync) and Asynchronous Input Device Supply: 200mA per port at 25°C Output Load Current: Maximum 2A per channel, max 4 A per module Electronic short circuit protection Vibration: IEC 60068-2-6 conformance Mechanical Shock: 10G, 11ms, 3 axis     Maximum Switching Frequency: 300 Hz Housing Dimensions: 30x 175 x 20mm Mounting Dimensions: 23mm horizontal on centers 168mm vertical on centers Center hole Operating Temperature: -25 to +70°C Storage Temperature: -25 to +85°C RH Operating: 5 to 95% non-condensing EMC: IEC 61000-6-2 Ordering Information I/O Configurations I/O Channels Input Output 112098-5006 8 0 NPN TBDCO-862N-804 112098-5004 6 2 NPN TBDCO-844N-804 112098-5002 4 4 NPN TBDCO-880P-804 112098-5007 8 0 PNP TBDCO-862P-804 112098-5005 6 2 PNP TBDCO-844P-804 112098-5003 4 4 PNP TBDCO-808P-804 112098-5001 0 8 PNP TBDCO-8YYX-804 112098-5008 Order No. Engineering No. TBDCO-880N-804 No. of Ports 8 I/O Connectors M8 8 I/O universal or user configurable I/O Channels Configurable CANopen is a registered trademark of CAN in Automation (CiA) www.molex.com/link/harshiomodules.html Order No. 987650-9332 Printed in EUR/GF/2013.07 ©2013 Molex
