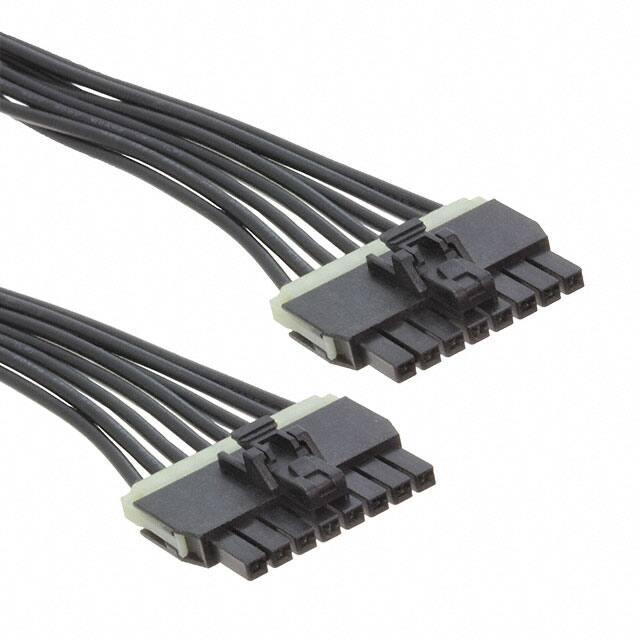

Part Number : 1451300801
Product Description : Nano-Fit-to-Nano-Fit
Off-the-Shelf (OTS) Cable Assembly, Single
Row, Matte Tin (Sn) Plating, 150.00mm
Length, 8 Circuits, Black
Series Number : 145130
Status : Active
Product Category : Power and Signal Cable
Assemblies
Documents & Resources
Drawings
Drawing 1451300801_sd.pdf
3D Models and Design Files
3D Model 1451300801_stp.zip
Product Environment Compliance
Compliance
GADSL/IMDS
Not Relevant
China RoHS
EU ELV
Not Relevant
Low-Halogen Status
Not Low-Halogen per IEC 61249-221
REACH SVHC
Not Contained per D(2023)3788-DC
(14 Jun 2023)
EU RoHS
Compliant per EU 2015/863
Multiple Part Product Compliance Statements
- Eu RoHS
- REACH SVHC
- Low-Halogen
Multiple Part Industry Compliance Documents
- IPC 1752A Class C
- IPC 1752A Class D
- Molex Product Compliance Declaration
- IEC-62474
- chemSHERPA (xml)
EU RoHS Certificate of Compliance
Part Details
General
Status
Active
Category
Power and Signal Cable Assemblies
Series
145130
Description
Nano-Fit-to-Nano-Fit Off-the-Shelf
(OTS) Cable Assembly, Single Row,
Matte Tin (Sn) Plating, 150.00mm
Length, 8 Circuits, Black
Application
Power, Wire-to-Board
Assembly Configuration
Dual Ended Connectors
Connector to Connector
Nano-Fit-to-Nano-Fit
Product Family
Nano-Fit Power Connectors
Product Name
Nano-Fit
Type
Discrete Wire Assembly
UPC
191130119028
Current - Maximum per Contact
8.0A
Voltage - Maximum
250V AC (RMS)
Cable Length
150.00mm
Circuits (Loaded)
8
Circuits (maximum)
8
Color - Resin
Black
Gender
Female-Female
Lock to Mating Part
Yes
Material - Metal
High Conductivity Copper
Material - Plating Mating
Matte Tin
Material - Plating Termination
Matte Tin
Material - Resin
Nylon
Net Weight
12.771/g
Electrical
Physical
Number of Rows
1
Overmolded
No
Packaging Type
Bag
Pitch - Mating Interface
2.50mm
Plating min - Mating
2.540µm
Plating min - Termination
2.540µm
Single Ended
No
Termination Interface Style
Crimp or Compression
Wire/Cable Type
UL 1061
Wire Insulation Diameter
1.57mm
Wire Size (AWG)
20
Mates With / Use With
Mates with Part(s)
Description
Part Number
Nano-Fit Vertical Header, Through
Hole, 2.50mm Pitch, Single Row, 8
Circuits, with Kinked Pins, Tin (Sn)
Plating, Black, Glow-Wire Capable,
Tray
1053091108
Nano-Fit Vertical Header, Through
Hole, 2.50mm Pitch, Single Row, 8
Circuits, with Solder Clips, Tin (Sn)
Plating, Black, Glow-Wire Capable,
Tray
1053111108
Nano-Fit Right-Angle Header,
Through Hole, 2.50mm Pitch, Single
Row, 8 Circuits, Tin (Sn) Plating,
Black, Glow-Wire Capable, Tray
1053131108
Nano-Fit Vertical Header, Surface
Mount, 2.50mm Pitch, Single Row,
8 Circuits, 0.76µm Tin (Sn) Plating,
Black, Glow-Wire Capable
1054311108
Nano-Fit Right-Angle Header,
Surface Mount, 2.50mm Pitch,
Single Row, 8 Circuits, 0.76µm Tin
(Sn) Plating, Black, Glow-Wire
Capable
1054301108
Nano-Fit Plug Housing, TPA
Capable, 2.50mm Pitch, Single Row,
8 Circuits, Black, Glow-Wire
Capable
2002771108
Nano-Fit Plug Housing, TPA
Capable, 2.50mm Pitch, Single Row,
8 Circuits, Black, Panel Mount,
Glow-Wire Capable
2002771208
This document was generated on Jan 24, 2024
