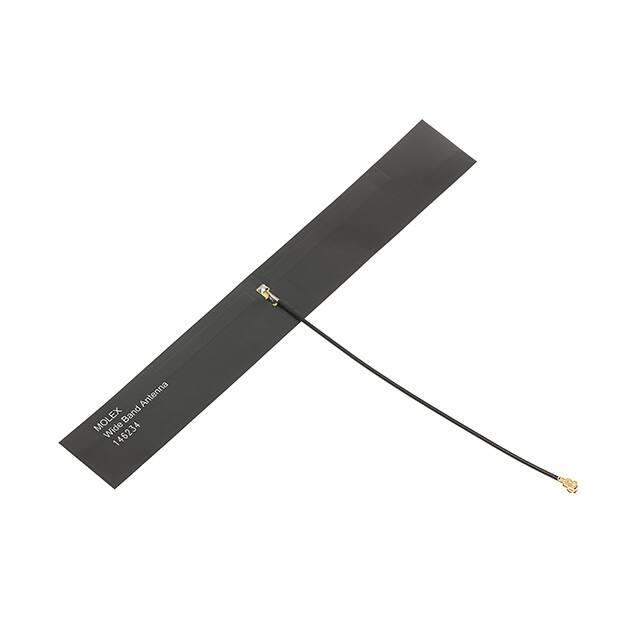

PRODUCT SPECIFICATION TITLE 698MHZ-6GHZ WIDE BAND ANTENNA TABLE OF CONTENTS 1.0 SCOPE 2.0 PRODUCT DESCRIPTION 3.0 APPLICABLE DOCUMENTS AND SPECIFICATIONS 4.0 RATINGS 5.0 PERFORMANCE 6.0 TEST GROUPINGS 7.0 PACKING THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION DESCRIPTION REMOVED OBSOLETED PART NUMBERS AND THEIR RESPECTIVE TABLES AS PER PCN#511683 REQUEST. CHANGE NO. 755035 REVISED BY ANIKES1 DATE 2023/03/22 DOC TYPE DOC TYPE DESCRIPTION DOC PART REV APPR BY GGA DATE 2023/06/29 PS PRODUCT SPECIFICATION WORD PS 146234 DOCUMENT NUMBER REVISION SHEET 1462340100 A2 1 OF 5 INITIAL RELEASE PS FOR 698MHZ-6GHZ WIDE BAND ANTENNA CUSTOMER INITIAL DRWN KCHENG06 DATE 2017/11/20 INITIAL APPR XJSONG DATE 2017/11/21 TEMPLATE: 2090580003-PPS-A Rev A2 2020 / 04 / 05 SERIES PRODUCT SPECIFICATION 698MHZ-6GHZ WIDE BAND ANTENNA 1.0 SCOPE This Product Specification covers the mechanical, electrical and environmental performances requirements and test methods for 698MHz-6GHz Wide Band Antenna. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: 698MHz-6GHz Wide Band Antenna. 2.2 Design and Construction Antenna shall be of the design, construction and physical dimensions specified on the applicable sales drawing. 2.3 Materials a) Flex: Refer to sales drawings SD of 1462340100. b) Cable Line: Refer to sales drawings SD of 1462340100. c) Connector: Refer to sales drawings SD of 1462340100. 3.0 APPLICABLE DOCUMENTS AND SPECIFICATIONS See drawings and other sections of this specification for the relevant reference documents. In cases where the specification differs from the drawings, the drawings take precedence. 4.0 RATINGS 4.1 RF POWER 2 WATTS 4.2 TEMPERATU Operating : Storage : 4.3 HUMIDITY Operating : Storage : -30℃ to -40℃ to -30℃ -30℃ 50℃ -40℃ -40℃ 50℃ 85℃ 95℃ to 85℃ to 50℃, 85%RH or less to 85℃, 60%RH or less to 95℃ to 50℃, 85%RH or less to 95℃, 60%RH or less THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION DESCRIPTION REMOVED OBSOLETED PART NUMBERS AND THEIR RESPECTIVE TABLES AS PER PCN#511683 REQUEST. CHANGE NO. 755035 REVISED BY ANIKES1 DATE 2023/03/22 DOC TYPE DOC TYPE DESCRIPTION DOC PART REV APPR BY GGA DATE 2023/06/29 PS PRODUCT SPECIFICATION WORD PS 146234 DOCUMENT NUMBER REVISION SHEET 1462340100 A2 2 OF 5 INITIAL RELEASE PS FOR 698MHZ-6GHZ WIDE BAND ANTENNA CUSTOMER INITIAL DRWN KCHENG06 DATE 2017/11/20 INITIAL APPR XJSONG DATE 2017/11/21 TEMPLATE: 2090580003-PPS-A Rev A2 2020 / 04 / 05 SERIES PRODUCT SPECIFICATION 5.0 PERFORMANCE 5.1 ELECTRICAL REQUIREMENTS FOR CABLE LENGTH 100mm (1462340100) DESCRIPTION TEST CONDITION Frequency Range 698MHz-960MHz / 1.5GHz~6GHz REQUIREMENTS 698~960MHz 1.5~2.7GHz 2.7GHz~6GHz Return Loss Antenna with 100mm long,1.13mm diameter micro coaxial cable in free space Measured by VNA5071C < -4 dB Peak Gain (Max) Measure antenna in free space through OTA chamber 1.8dBi 2.8dBi 5.0dBi Total Efficiency Measure antenna in free space through OTA chamber >70% >70% >70% Polarization Measure antenna in free space through OTA chamber Linear Input Impedance Measure antenna in free space through VNA E5071C 50 Ohms < -5 dB 5.2 CABLE LOSS ITEM DESCRIPTION TEST CONDITION 5.2.1 Frequency Range 698MHz~6GHz 5.2.2 Attenuation REQUIREMENTS 698MHz~960MH z 1.5GHz~3GHz 3GHz~5GHz 5GHz~6GHz ≤1.8dB/m ≤3dB/m ≤4dB/m ≤5dB/m 1m cable measured by VNA5071C 5.3 CABLE LENGTH AFFECT THE ANTENNA PERFORMANCE Balance antenna resonance is insensitive by cable’s length, but the cable’s loss will affect the total efficiency. Refer to 5.7. 5.4 MECHANICAL REQUIREMENTS ITEM DESCRIPTION 5.4.1 Pull test TEST CONDITION Test machine : Max intelligent load tester Stick the Flex antenna in a PC block, pull cable in horizontal direction REQUIREMENT Pull force >8N THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION DESCRIPTION REMOVED OBSOLETED PART NUMBERS AND THEIR RESPECTIVE TABLES AS PER PCN#511683 REQUEST. CHANGE NO. 755035 REVISED BY ANIKES1 DATE 2023/03/22 DOC TYPE DOC TYPE DESCRIPTION DOC PART REV APPR BY GGA DATE 2023/06/29 PS PRODUCT SPECIFICATION WORD PS 146234 DOCUMENT NUMBER REVISION SHEET 1462340100 A2 3 OF 5 INITIAL RELEASE PS FOR 698MHZ-6GHZ WIDE BAND ANTENNA CUSTOMER INITIAL DRWN KCHENG06 DATE 2017/11/20 INITIAL APPR XJSONG DATE 2017/11/21 TEMPLATE: 2090580003-PPS-A Rev A2 2020 / 04 / 05 SERIES PRODUCT SPECIFICATION 5.5 ENVIRONMENTAL REQUIREMENTS ITEM DESCRIPTION 5.5.1 5.5.2 5.5.4 REQUIREMENT Temperature /Humidity cycling Test condition: 1) The device under test is kept for 30 mins in an environment with a temperature of -40 ℃. 2) Kept for 4 Hours in an environment with a temperature of 85 degrees and a 1) Parts should meet RF spec relative humidity of 95%. before and after test. 3) Kept for 2 Hours in an environment with 2）No cosmetic problem a temperature of 125 degrees and a relative humidity of 95%. 4) The cycle is repeated until a total of 40 cycles have been completed. Hereafter the conditions are stabilized at room temperature. Temperature Shock Test condition: The device under test at -40 ℃⇔125 ℃ by 100 1) Parts should meet RF spec cycles, Dwell of 30 mins, transition time between before and after test. Dwell 30 secs (~ 61 mins / cycle ) and each item 2）No cosmetic problem should be measured after exposing them in normal temperature and humidity for 24 h. High Temperature 5.5.3 TEST CONDITION Salt mist test Test condition: 1) Temperature:125℃, time:1008hours 1) Parts should meet RF spec 2) There is no substantial obstruction to before and after test. air flow across and around the samples, and the samples are not touching each 2) No cosmetic problem other. 1.Test condition: The device under test is exposed to a spray of a 5% (by volume) resolution of Nacl in water for 2 hours. Thereafter the device under test is left for 1 week in room temperature at a relative humidity of 95%. The cycle is repeated until a total of 2 cycles have been completed. Here after the conditions are stabilized at room temperature. 1) Parts should meet RF spec before and after test. 2) No visible corrosion. Discoloration accept. The meaning of text “No Cosmetic Problem” in the table above is: a. No soldering problem b. No adhesion problem of glue THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION DESCRIPTION REMOVED OBSOLETED PART NUMBERS AND THEIR RESPECTIVE TABLES AS PER PCN#511683 REQUEST. CHANGE NO. 755035 REVISED BY ANIKES1 DATE 2023/03/22 DOC TYPE DOC TYPE DESCRIPTION DOC PART REV APPR BY GGA DATE 2023/06/29 PS PRODUCT SPECIFICATION WORD PS 146234 DOCUMENT NUMBER REVISION SHEET 1462340100 A2 4 OF 5 INITIAL RELEASE PS FOR 698MHZ-6GHZ WIDE BAND ANTENNA CUSTOMER INITIAL DRWN KCHENG06 DATE 2017/11/20 INITIAL APPR XJSONG DATE 2017/11/21 TEMPLATE: 2090580003-PPS-A Rev A2 2020 / 04 / 05 SERIES PRODUCT SPECIFICATION 6.0 TEST GROUPINGS Test Item 5.9.1 5.10.1 5.10.2 5.10.3 5.10.4 Description Group1 Pull test Group2 Group3 Group4 Group5 X Temperature /Humidity cycling Temperature Shock High Temperature X X X Salt mist test X Sample Quantity 5 5 5 5 5 7.0 PACKAGING Refer to the Molex related packaging drawings of 1462340100. THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION DESCRIPTION REMOVED OBSOLETED PART NUMBERS AND THEIR RESPECTIVE TABLES AS PER PCN#511683 REQUEST. CHANGE NO. 755035 REVISED BY ANIKES1 DATE 2023/03/22 DOC TYPE DOC TYPE DESCRIPTION DOC PART REV APPR BY GGA DATE 2023/06/29 PS PRODUCT SPECIFICATION WORD PS 146234 DOCUMENT NUMBER REVISION SHEET 1462340100 A2 5 OF 5 INITIAL RELEASE PS FOR 698MHZ-6GHZ WIDE BAND ANTENNA CUSTOMER INITIAL DRWN KCHENG06 DATE 2017/11/20 INITIAL APPR XJSONG DATE 2017/11/21 TEMPLATE: 2090580003-PPS-A Rev A2 2020 / 04 / 05 SERIES
