15-24-6042

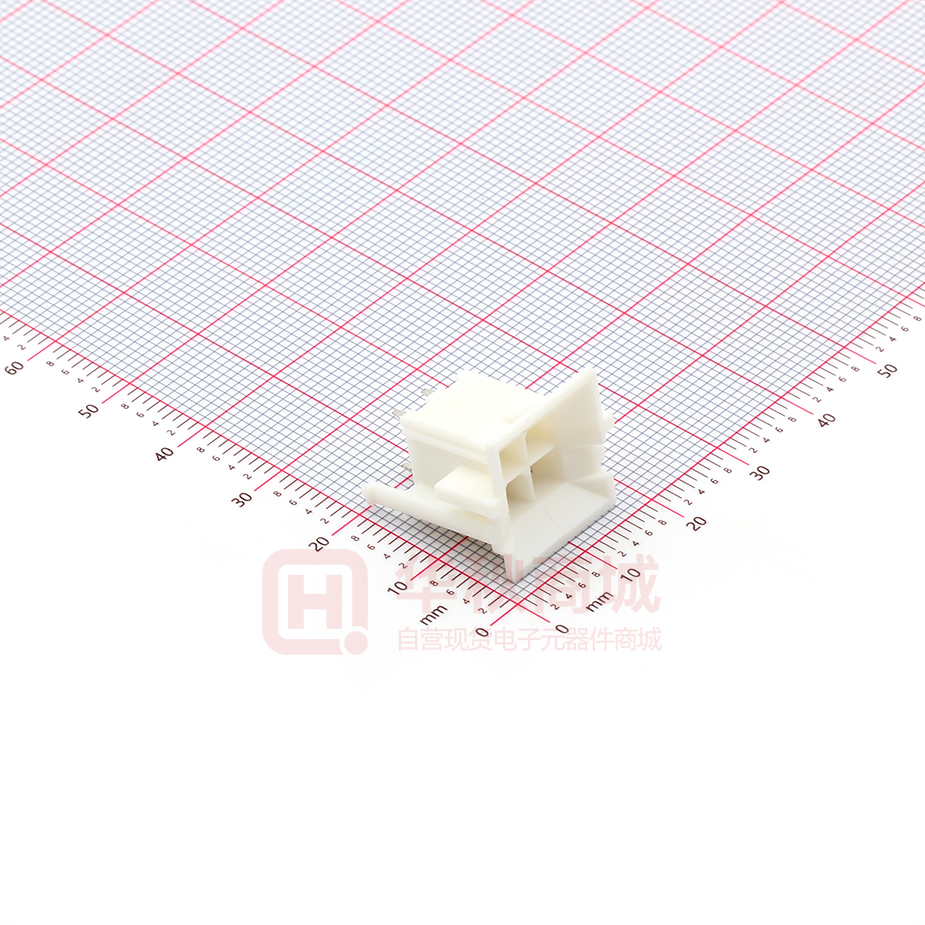

This document was generated on 07/11/2019 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0015246042 Active Mini-Fit BMI Connectors Mini-Fit BMI Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6, UL 94V-0, Tin (Sn) Plating, without Drain Holes Documents: 3D Model Drawing (PDF) Product Specification PS-5556-002-001 (PDF) Agency Certification CSA UL General Product Family Series 3D Viewer Application CURRENT-MAX-NUMERIC Comments Test Summary TS-5556-002-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only LR19980 E29179 Overview PITCH-MATING-NUMERIC Product Name UPC PCB Headers 42440 Yes Board-to-Board, Power, Wire-to-Board 13.0 Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire., See Molex product specification PS-45750-001 for additional current derating information. Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire., See Molex product specification PS-45750-001 for additional current derating information. Mini-Fit BMI Connectors 4.20 Mini-Fit BMI 800753535008 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Flammability Glow-Wire Capable Guide to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PC Tail Length PCB Locator PCB Retention No 4 4 Natural (White) 30 94V-0 No Yes Yes Brass Tin Tin Nylon 1.321/g 2 Vertical 3.56mm Yes Yes Comments EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per -ED/88/2018 (15 January 2019) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 42440 Series Mates With 15060041 Mini-Fit BMI Panel Mount Receptacle, 39013048 Mini-Fit Jr. Receptacle, 15247041 Mini-Fit BMI Vertical Receptacle Header, 245135 Mini-Fit Jr. Cable Assembly PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style 1.80mm Tray 4.20mm 2.540µm 2.540µm Yes Yes Partial No No -40° to +105°C Through Hole Electrical Current - Maximum per Contact Voltage - Maximum 13.0A 600V Solder Process Data Duration at Max. Process Temperature (seconds) Lead-freeProcess Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 005 WAVE 001 240 Material Info Engineering Number A-42440-0421 Reference - Drawing Numbers Product Specification Sales Drawing Symbol/Footprint Data Test Summary PS-5556-002-001 SDA-42440-XXXX SYM-A42440-04XX TS-5556-002-001 This document was generated on 07/11/2019 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
