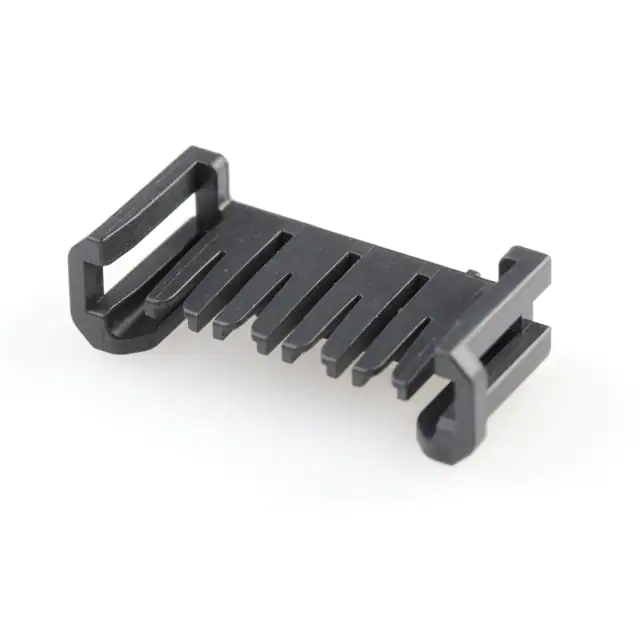

1502120014

10 9 7 8 6 A 5 4 3 2 1 7.6 NOTES: 1. MATERIAL: PA66, UL RATED 94V-0 COLOR: BLACK 2. 150212001* PARTS ARE USED WITH 150201001* HOUSING SERIES. 3. PRODUCT SPECIFICATION 1502000000-PS 4. PACKAGING SPECIFICATION PK-150212-0000 5. COSMETIC SPECIFICATION: PS-45499-002 CLASS B F 3.0 PITCH 5.13 E F E D D B C C B A B PART NUMBER 1502120012 1502120013 1502120014 1502120015 1502120016 1502120017 1502120018 DOCUMENT STATUS FORMAT: master-tb-prod-A3 REVISION: H DATE: 2018/01/18 10 P1 A± 0.40 11.6 14.6 17.6 20.6 23.6 26.6 29.6 CIRCUIT SIZE 2 3 4 5 6 7 8 RELEASE DATE 9 2019/06/28 B 3.0 6.0 9.0 12.0 15.0 18.0 21.0 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION SCALE mm 8:1 ANGULAR TOL ± 4 PLACES ± 3 PLACES ± 2 PLACES ± 1 PLACE ± 0 PLACES ± 0.5 ° 0.13 0.25 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 7 CURRENT REV DESC: ADDED HT MARKING GENERAL TOLERANCES (UNLESS SPECIFIED) 13:26:18 8 DIMENSION UNITS 6 5 4 EC NO: 619365 DRWN: SMAHAJANSHET CHK'D: NCSR APPR: NCSR INITIAL REVISION: DRWN: SMAHAJANSHET APPR: NCSR THIRD ANGLE PROJECTION DRAWING 2019/06/03 2019/06/28 2019/06/28 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2018/10/05 2018/12/10 SERIES A3-SIZE 150212 3 SALES DRAWING TPA V-0, HIGH TEMP DITTO INTERCONNECTS 1502120010-SD MATERIAL NUMBER PSD 000 CUSTOMER GENERAL MARKET SEE TABLE 2 B SHEET NUMBER 1 OF 1 1 A
