1510020005

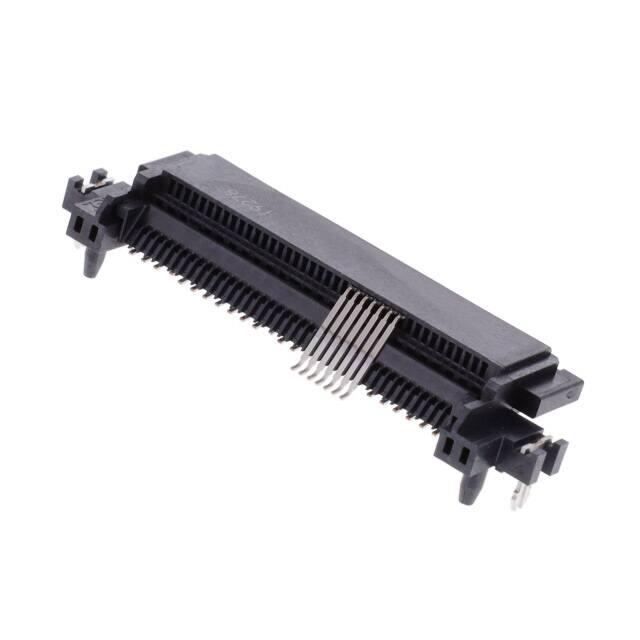

Part Number : 1510020005 Product Description : 1.27mm Signal Pitch, 0.80mm Signal Pitch, 1.27mm Power Pitch SAS-3 Receptacle, Right-Angle, Surface Mount, with Forklock, 4.15mm Height, 3.50mm Peg Length, 1.60mm PCB Thickness, 29 Circuits, with Cap, Embossed Tape and Reel, LeadFree Series Number : 151002 Status : Active Product Category : I/O Connectors Documents & Resources Drawings Drawing 1510020005_sd.pdf Packaging Design Drawing PK-151002-0002-001.pdf 3D Models and Design Files 3D Model 1510020005_stp.zip Electrical Model Document EE-151002-0001-001.pdf S-Parameter Model SP-151002-0001-001.zip Specifications Application Specification AS-151002-0001-001.pdf Product Specification PS-151002-0001-001.pdf Product Specification RPS-151002-0001-001.pdf Test Summary TS-151002-0001-001.pdf Product Environment Compliance Compliance GADSL/IMDS Compliant with Exemption 44; 34; 33 China RoHS EU ELV Compliant per 2000/53/EC Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category I/O Connectors Series 151002 Description 1.27mm Signal Pitch, 0.80mm Signal Pitch, 1.27mm Power Pitch SAS-3 Receptacle, Right-Angle, Surface Mount, with Forklock, 4.15mm Height, 3.50mm Peg Length, 1.60mm PCB Thickness, 29 Circuits, with Cap, Embossed Tape and Reel, Lead-Free Application Board-to-Board Comments Without Cap Component Type Receptacle Product Family Serial Attached SCSI (SAS) Connectors Product Name SAS 12G,SAS-3 Type N/A UPC 889056632096 UL E29179 Current - Maximum per Contact 1.5A Agency Electrical Voltage - Maximum 30V Circuits Detail Signal 14, Power 15 Circuits (Loaded) 29 Color - Resin Black Durability (mating cycles max) 500 Flammability 94V-0 Gender Female Keying to Mating Part Yes Lock to Mating Part None Material - Metal Copper Alloy Material - Plating Mating Gold Material - Plating Termination Tin Material - Resin Liquid Crystal Polymer Net Weight 2.076/g Number of Rows 2 Orientation Right Angle Packaging Type Embossed Tape on Reel Panel Mount No PCB Locator Yes PCB Retention Yes PCB Thickness - Recommended 1.60mm Pitch - Mating Interface 0.80mm, 1.27mm Pitch - Termination Interface 0.80mm, 1.27mm Plating min - Mating 0.762µm Plating min - Termination 2.540µm Polarized to Mating Part Yes Polarized to PCB Yes Temperature Range - Operating 0° to +55°C Termination Interface Style Surface Mount Waterproof / Dustproof No Physical Solder Process Data Max-Duration 10 Lead-Free Process Capability REFLOW Max-Cycle 1 Max-Temp 260 Mates With / Use With Mates with Part(s) Description Part Number Mates With SFF-8482 and SFF-8680 Plugs, SAS / SATA Plugs This document was generated on Jan 24, 2024
