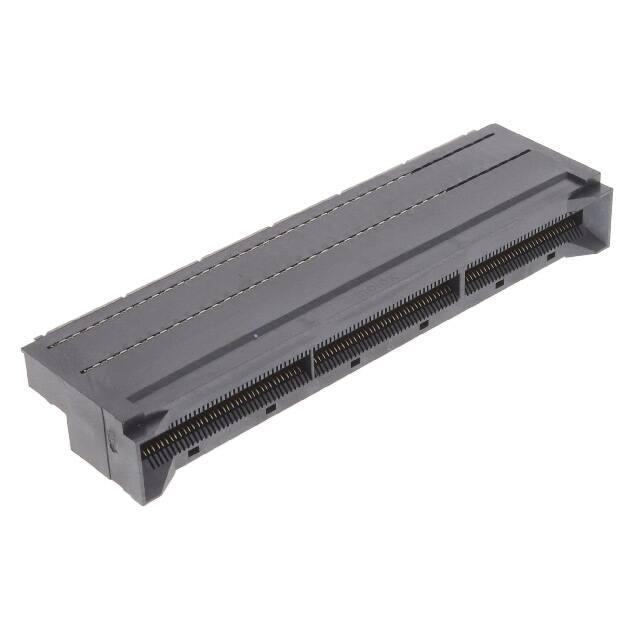

This document was generated on 07/30/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 1700820216 Active EdgeLine High-Speed Connectors EdgeLine CoPlanar+ Connector, 15 Gbps, 0.80mm Pitch, 2.36mm PCB Thickness, 216 Circuits Documents: 3D Model Drawing (PDF) 3D Model (PDF) Product Specification PS-170305-0001-001 (PDF) Application Specification AS-170305-0001-001 (PDF) Application Specification AS-170305-0002-001 (PDF) Packaging Specification PK-170082-0001-001 (PDF) Symbol Footprint Data SYM-170082-0216-001 (PDF) RoHS Certificate of Compliance (PDF) Application tooling part link Application Tooling Part Link Application Tooling Part Link 62100-0600 62202-2803 General Product Family Series Component Type Data Rate Edge Card Thickness Electrical Model High Power Bay (30.0A or more) Orientation Overview Product Name Standard Based UPC Edge Card Connectors 170082 Edgecard to PCB 12.5-20.0 Gbps 2.36mm Yes No Coplanar EdgeLine High-Speed Connectors EdgeLine General 884982519978 Physical (p)ower-(s)ignal Configuration Circuit Size Range Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Entry Angle Keying to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight PCB Locator PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Temperature Range - Operating Termination Interface: Style 216s - 0p 201-294 Circuits 216 216 Black 200 N/A N/A Copper Alloy Gold Tin High Temperature Thermoplastic 36.603/g No 2.79mm Tray 2.35mm 0.80mm 0.762µm 0.762µm Yes -40° to +85°C Through Hole - Compliant Pin Electrical Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Not Reviewed REACH SVHC Not Contained Per -ED/88/2018 (15 January 2019) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 170082 Series Current - Maximum per Contact Voltage - Maximum 0.5A 250V AC (RMS)/DC Solder Process Data Lead-freeProcess Capability N/A Material Info Reference - Drawing Numbers Application Specification Electrical Model Document Packaging Specification Product Specification S-Parameter Model Sales Drawing Symbol/Footprint Data AS-170305-0001-001, AS-170305-0002-001 EE-170082-0001-001 PK-170082-0001-001 PS-170305-0001-001 SP-170082-0001-001 SD-170082-0216 SYM-170082-0216-001 This document was generated on 07/30/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
