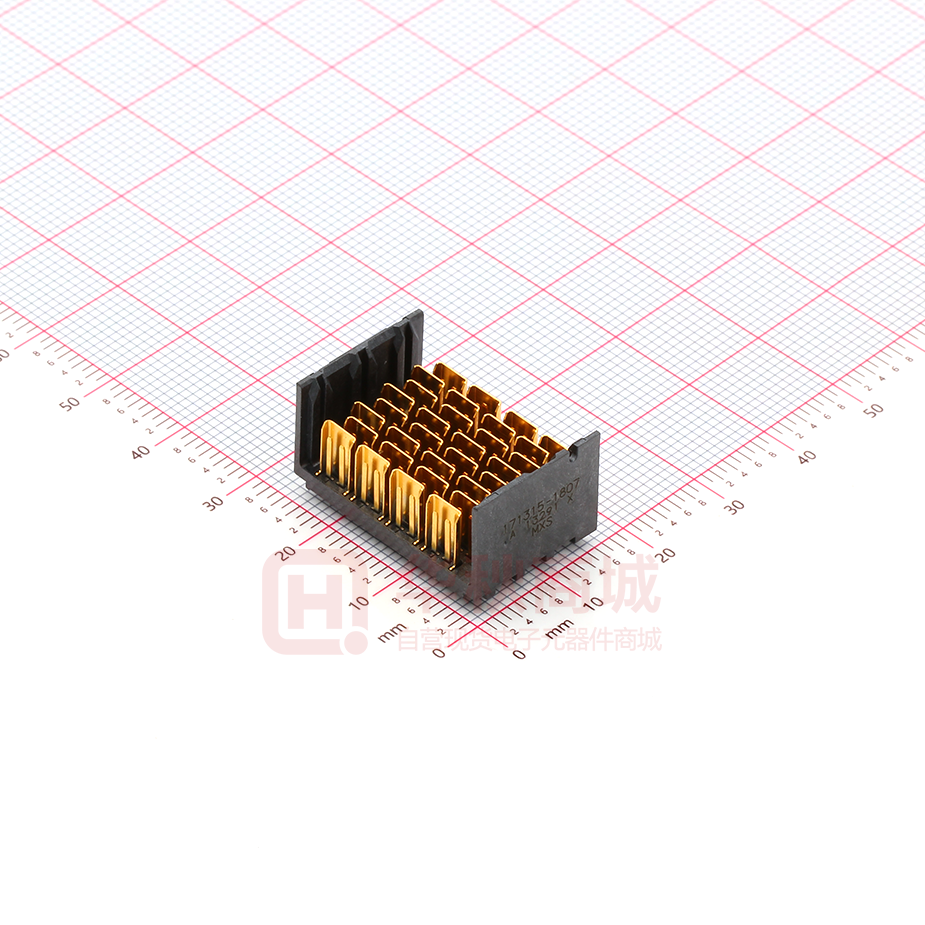

This document was generated on 03/27/2019 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 1713151807 Active Impel and Impel Plus Backplane Solutions Impel 92 Ohm, 4 Pair Vertical Backplane Header, 1.90mm Pitch, Unguided, Open Endwalls, 8 Columns, 64 Circuits, Pin Length 4.90mm, Plated ThroughHole Dimension 0.36mm Documents: 3D Model Drawing (PDF) Product Specification PS-171320-999-001 (PDF) Application Specification AS-171320-990-001 (PDF) Application Specification AS-171320-991-001 (PDF) Application Specification AS-171320-992-001 (PDF) Packaging Specification PK-78888-084-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only EU ELV Not Relevant Agency Certification UL E29179 General Product Family Series Application Application Tooling Documents Component Type Overview Product Name UPC Backplane Connectors 171315 Backplane TM-622018899 PCB Header Impel and Impel Plus Backplane Solutions Impel 887191330426 Physical Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Guide to Mating Part Keying to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Columns Number of Pairs Number of Rows Orientation PC Tail Length PCB Locator PCB Retention PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Temperature Range - Operating 64 64 Black 200 No No None High Performance Alloy (HPA) Gold over Nickel Tin over Nickel High Temperature Thermoplastic 4.526/g 8 4 8 Vertical 1.30mm No None 1.00mm Tray 1.90mm 1.90mm 0.762µm -55° to +85°C Electrical Current - Maximum per Contact Data Rate Impedance 0.75A 40.0 Gbps 92Ω EU RoHS China RoHS Compliant REACH SVHC Not Contained Per -ED/88/2018 (15 January 2019) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 171315 Series Mates With Impel Right-Angle Daughtercard 1713201038 Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # IMPEL Backplane 622018946 Press-In Tool Shield Type Voltage - Maximum Full Shield 150V AC (RMS)/DC Solder Process Data Lead-freeProcess Capability N/A Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing Symbol/Footprint Data AS-171320-990-001, AS-171320-991-001, AS-171320-992-001 PK-78888-084-001 PS-171320-999-001 SD-171315-0001-001 SYM-171315-1807 This document was generated on 03/27/2019 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
