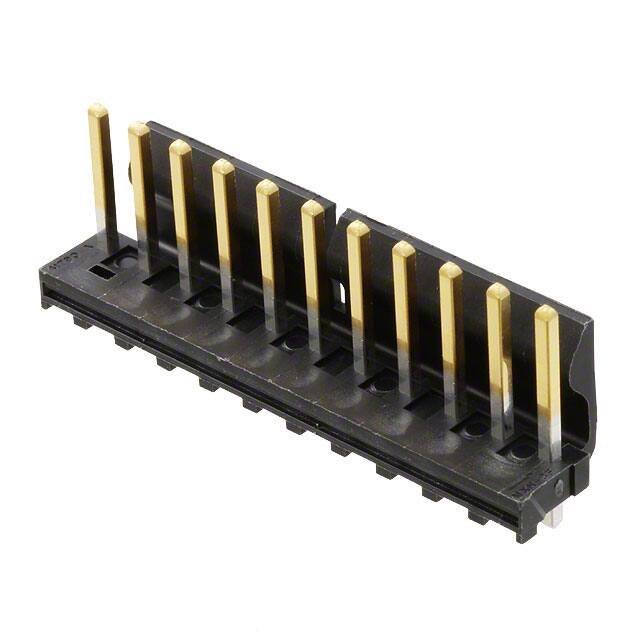

Delivering 13.0A and 600V per circuit, the KK® 396 Reflow Process Compatible (RPC) Connector System suports a lead-free solder process and is ideal for low- to mid-power wire-to-board and board-to-board applications The KK® Reflow Process Compatible (RPC) connector system is designed to support RoHS lead-free initiatives. Designed with a nylon housing, the wire-toboard system can withstand temperatures up to +260°C. KK® 396 Reflow Process Compatible (RPC) Connector System 171813 Vertical Header 171814 Right-Angle Header Features and Benefits High-temperature nylon housing Withstands lead-free hightemperature solder processing up to +260°C. Does not require the drying needs of normal nylon Optional MarKK terminal with four points of contact Support up to 13.0A per circuit. Ideal for higher power and highvibration applications Polarized friction-lock header Prevents mismating Standard KK header footprint design Allows for drop-in replacement on existing header applications. Mates with standard KK receptacles Matte-tin over nickel plating Inhibits tin whiskering PCB receptacles are available in standard KK® connectors Ensures secure mating between headers and receptacles KK® 396 RPC Vertical and Right-Angle Headers with Friction Lock Applications Consumer – Home appliances – Washer/dryer – Dishwashers – Fire/smoke detectors – HVAC – Gaming – Coin changers, ATM – Gaming consoles – Vending – Voting machines Office Scanner Data/Computing and Telecommunications/Networking – Scanners/multi-function machines – Printers – Workstations – Mainframes Home Appliances Medical – Respirators – Blood warming bags Automotive – Control modules – Stereos Medical Equipment KK® 396 Reflow Process Compatible (RPC) Connector System Ordering Information Reflow Process Compatible Connectors Order No. Circuits Vertical Right-Angle 171813-0002 171814-0002 2 171813-0003 171814-0003 3 171813-0004 171814-0004 4 171813-0005 171814-0005 5 171813-0006 171814-0006 6 171813-0007 171814-0007 7 171813-0008 171814-0008 8 171813-0009 171814-0009 9 171813-0010 171814-0010 10 171813-0011 171814-0011 11 171813-0012 171814-0012 12 171813-1002 171814-1002 2 171813-1003 171814-1003 3 171813-1004 171814-1004 4 171813-1005 171814-1005 5 171813-1006 171814-1006 6 171813-1007 171814-1007 7 171813-1008 171814-1008 8 171813-1009 171814-1009 9 171813-1010 171814-1010 10 171813-1011 171814-1011 11 171813-1012 171814-1012 12 Pitch Plating Tin (Sn) 3.96mm 15 μm Gold (Au) Standard PCB Headers Series No. Configuration 41791 Vertical 41792 Right-Angle 41671 Vertical 41672 Right-Angle 42491 Vertical 42492 Right-Angle 41661 Vertical 41662 Right-Angle 41771 Vertical 41772 Right-Angle Pitch Application Friction Lock PC Peg Breakaway No No Yes 3.96mm Wire-to-Board, Board-to-Board, Power Yes Yes No Yes No No No KK® 396 Reflow Process Compatible (RPC) Connector System Ordering Information Standard PCB Receptacles Series No. 41815 2145 Pitch 3.96mm Application Board-to-Board Material Configurations UL 94V-0 Top Entry, Through Hole, Right-Angle UL 94V-2 Standard Crimp Terminals Series No. Pitch Application 2478 2578 8818 Base Material Phosphor Bronze 3.96mm Power Brass 6838 Phosphor Bronze 45570 Copper Alloy Standard Crimp Housings Series No. Pitch Application 3.96mm Wire-to-Board, Power 2139 3069 6442 Base Material Yes 41695 No Yes Specifications Reference Information Packaging: Bag; T&R packaging to be released UL File No.: TBD CSA File No.: TBD Mates With: a  ny KK® 3.96mm housing or PCB receptacle Designed In: Millimeters RoHS: Yes Low Halogen: Yes Glow Wire Compliant: Yes Electrical Voltage (max.): 600V Current (max.): 13.0A Contact Resistance (max.): 10mΩ Dielectric Withstanding Voltage: 500V AC (RMS) Insulation Resistance (min.): 1000MΩ Mechanical Contact Insertion Force: 17.8N Contact Retention to Housing: 36.8N Mating Force: 10.7N per circuit Unmating Force: 3.4N per circuit Durability (min.): 25 cycles Physical Housing: High-temperature Nylon Contact: Brass Plating: C  ontact Area — Matte Tin (Sn) or Select Gold (Au) Solder Tail Area — Matte Tin (Sn) Underplating — Nickel (Ni) PCB Thickness: 0.062mm Operating Temperature: Brass: -40 to +80°C Phosphor Bronze: -40 to +105°C www.molex.com/link/kk396.html Order No. 987650-9461 Printed in USA/KC/2013.08 ©2013 Molex
