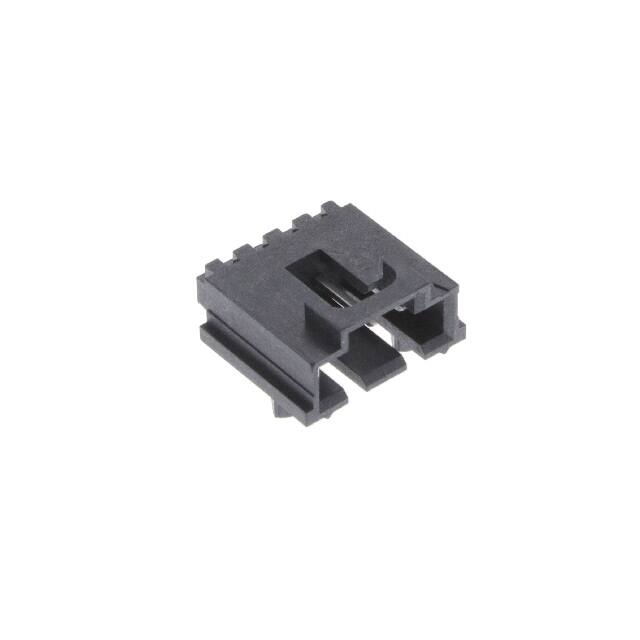

PRODUCT SPECIFICATION //////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// SL SHROUDED HEADERS SL VERTICAL HEADERS THROUGH HOLE THROUGH HOLE WITH PEGS SMT SERIES 171971 SERIES 171972 SERIES 171973 SL RIGHT ANGLE HEADERS REVISION: A1 ADD PHOTOS THROUGH HOLE THROUGH HOLE WITH PEGS SERIES 171974 SERIES 171975 SMT SMT WITH PEGS SERIES 171976 SERIES 171977 TITLE: SHEET No. PRODUCT SPECIFICATION SL SHROUDED HEADERS EC No: 176221 DATE: 2018-06-11 DOCUMENT NUMBER: 1719710000-PS 1 of 3 DOC TYPE: DOC PART: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS 000 KSAMIEC KSAMIEC FSMITH TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.3).DOC PRODUCT SPECIFICATION SL SHROUDED HEADERS 1.0 SCOPE This Product Specification covers the SL 2.54 millimeter centerline SL Shrouded Header Assemblies 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT SERIES AND DESCRIPTION SERIES 171971 171972 171973 171974 171975 171976 171977 2.2 DIMENSIONS, MATERIALS, PLATINGS AND MARKINGS 2.2.1 2.2.2 2.2.3 2.2.4 2.2.4 2.2.5 2.3 DESCRIPTION SL Vertical Shrouded Header Assy Thru Hole no Pegs SL Vertical Shrouded Header Assy Thru Hole with Pegs SL Vertical Shrouded Header Assy SMT no Pegs SL Right Angle Shrouded Header Assy Thru Hole no Pegs SL Right Angle Shrouded Header Assy Thru Hole with Pegs SL Right Angle Shrouded Header Assy SMT no Pegs SL Right Angle Shrouded Header Assy SMT with Pegs Header Material: LCP, Black, UL94V-0 Mating Pin Length: 6.10 millimeters Thru Hole PCB Tail Length: 3.30 millimeters. Recommended PCB Thickness: 1.57 millimeters. Available in the following Finishes: Overall Matte Tin or Select Gold See the appropriate Sales Drawing(s) for additional information on dimensions and markings. SAFETY AGENCY APPROVALS 2.3.1 Underwriters Laboratory: UL E29179 2.3.2 Canadian Standards Association: CSA LR19980 3.0 APPLICABLE DOCUMENTS AND SPECIFICATIONS 3.1 SOLDERABILITY: Per SMES-152 Lead Free Process 3.1.1 3.1.2 3.1.3 3.1.4 Process: Wave or Reflow Peak Temperature: 260°C Maximum Time within 5°C of peak Temperature: 40 seconds Maximum Cycles: 3 cycles thru solder process Maximum 4.0 RATINGS 4.1 VOLTAGE: 250 Volts 4.2 CURRENT: 3.0 Amps Maximum  Current is dependent on connector size, contact material, plating, ambient temperature, printed circuit board characteristics and related factors. Actual current rating is application dependent and should be evaluated for each application.  Note: Current Ratings are for a single circuit, based on not exceeding 30°C temperature rise. 4.3 TEMPERATURE: (ambient +30°C)  Operating Temperature: - 40°C to +105°C  Non-Operating Temperature: - 30°C to +105°C REVISION: A1 ADD PHOTOS TITLE: SHEET No. PRODUCT SPECIFICATION SL SHROUDED HEADERS EC No: 176221 DATE: 2018-06-11 DOCUMENT NUMBER: 1719710000-PS 2 of 3 DOC TYPE: DOC PART: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS 000 KSAMIEC KSAMIEC FSMITH TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.3).DOC PRODUCT SPECIFICATION SL SHROUDED HEADERS 5.0 PERFORMANCE 5.1 ELECTRICAL REQUIREMENTS ITEM DESCRIPTION Test Condition Requirement 1 Insulation Resistance Unmate & unmount connectors: apply a voltage of 500 VDC between adjacent terminals and between terminals to ground. 1000 Mega-ohms Minimum 2 Dielectric Withstanding Voltage Unmate connectors: apply a voltage of {two times the rated voltage plus 1000 volts} VAC for 1 minute between adjacent terminals and between terminals to ground. No Breakdown, Current leakage< 5 mA 5.2 MECHANICAL REQUIREMENTS ITEM DESCRIPTION Test Condition 3 4 Pin Retention Force (in Header) Requirement Axial pullout force on the pin in the housing at a rate of 25 ± 6 mm per minute. Tri-Peg Insertion Force Recommended Hole size 3.40 ± 0.05 mm Insert (in PCB) connector at a rate of 25 ± 6 mm per minute. 5 Tri-Peg Retention Force (in PCB) 6 Pin Retention Force after Wave Solder 17.8 Newton Minimum retention force 44.5 Newton MAXIMUM insertion force Recommended Hole size 3.40 ± 0.05 mm. Pull connector at a rate of 25 ± 6 mm per minute. 4.5 Newton MINIMUM retention force Apply a wave solder process of 260°C maximum. Axial pullout force on the housing at a rate of 25 ± 6 mm per minute. 13.3 Newton Minimum retention force 5.3 ENVIRONMENTAL REQUIREMENTS: ITEM DESCRIPTION Test Condition Requirement Expose to 10 cycles of: Temperature °C Duration (Minutes) -40 +0/-3 30 +105 +3/-0 30 Per IEC 68-2-14. Visual: No Damage 9 Shock (Thermal) 10 Thermal Aging Expose to: 240 hours at 105 ± 2°C Per MIL-STD-202F Method 108A. Visual: No Damage 11 Humidity (Steady State) Expose to temperature of 40 ± 3°C at 96 ± 5% relative humidity for 240 hours. Per MIL-STD202F Method 108A Test Condition A. Visual: No Damage 12 Flowers of Sulphur Exposed to sulphur vapors for 24 hours at 65 ± 3°C. Per IEC 68-2-42. Visual: No Damage 6.0 PACKAGING: See individual drawings for packaging specification. REVISION: A1 ADD PHOTOS TITLE: SHEET No. PRODUCT SPECIFICATION SL SHROUDED HEADERS EC No: 176221 DATE: 2018-06-11 DOCUMENT NUMBER: 1719710000-PS 3 of 3 DOC TYPE: DOC PART: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS 000 KSAMIEC KSAMIEC FSMITH TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.3).DOC
