1722643006

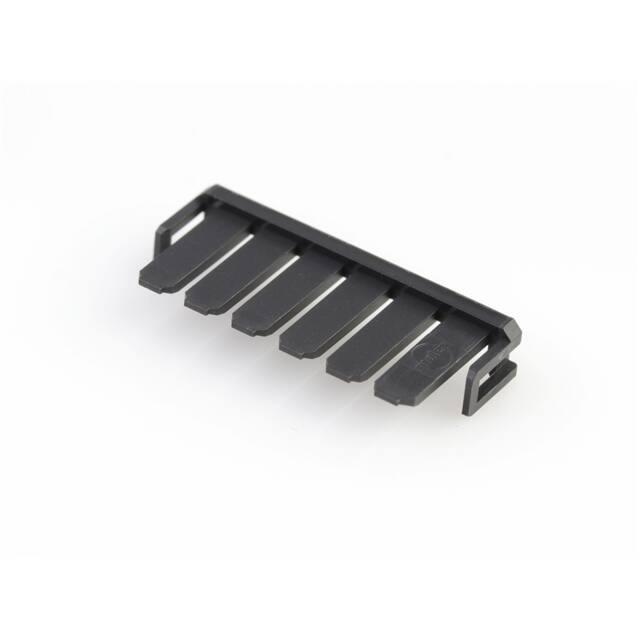

Part Number : 1722643006 Product Description : Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 6 Circuits, Black Series Number : 172264 Status : Active Product Category : Connector Accessories Documents & Resources Drawings Drawing 1722643006_sd.pdf Packaging Design Drawing 1723230005-000.pdf 3D Models and Design Files 3D Model 1722643006_stp.zip Specifications Application Specification 1722640001-AS-000.pdf Application Specification 1723230003-000.pdf Product Specification 1723230001-TS-000.pdf Product Specification 1723231000-PS-CH-000.pdf Product Specification 1723231000-PS-ES-000.pdf Product Specification 1723231000-PS-JP-000.pdf Product Specification 1723231000-PS-SK-000.pdf Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Not Low-Halogen per IEC 61249-221 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category Connector Accessories Series 172264 Description Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 6 Circuits, Black Component Type Terminal Position Assurance Product Family Ultra-Fit Power Connectors Product Name Ultra-Fit UPC 191128806176 Circuits (Loaded) 6 Circuits (maximum) 6 Color - Resin Black Lock to Mating Part Yes Material - Resin Nylon Net Weight 0.251/g Number of Rows 1 Packaging Type Bag Temperature Range - Operating -40° to +120°C Physical Use with Part(s) Description Part Number Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 6 Circuits, Natural, Glow-Wire Capable /content/molex/molex-dotcom/us/en/products/productpage.html/1722564106.html Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 12 Circuits, Natural, Glow-Wire Capable /content/molex/molex-dotcom/us/en/products/productpage.html/1722584112.html Ultra-Fit Plug Housing, 3.50mm Pitch, Single Row, 6 Circuits, Natural, Glow-Wire Capable /content/molex/molex-dotcom/us/en/products/productpage.html/2025694006.html Ultra-Fit Plug Housing, 3.50mm Pitch, Single Row, 6 Circuits, Panel Mount, Natural, Glow-Wire Capable /content/molex/molex-dotcom/us/en/products/productpage.html/2025694106.html Ultra-Fit Plug Housing, 3.50mm Pitch, Dual Row, 12 Circuits, Natural, Glow-Wire Capable /content/molex/molex-dotcom/us/en/products/productpage.html/2169454012.html Ultra-Fit Plug Housing, 3.50mm Pitch, Dual Row, 12 Circuits, Panel Mount, Natural, Glow-Wire Capable /content/molex/molex-dotcom/us/en/products/productpage.html/2169454112.html This document was generated on Jan 24, 2024
