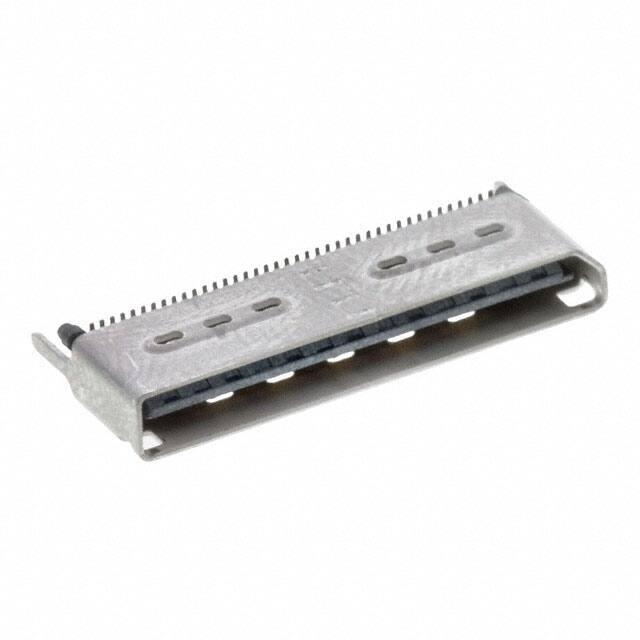

Part Number : 1731620334 Product Description : Nano-Pitch I/O Receptacle, Straight, Through Hole, with Cap, 80 Circuits Series Number : 173162 Status : Active Product Category : High-Speed I/O Connectors Documents & Resources Drawings Drawing 1731620334_sd.pdf Packaging Design Drawing PK-173307-0001-001.pdf 3D Models and Design Files 3D Model 1731620334_stp.zip Electrical Model Document EE-173162-0010-001.pdf S-Parameter Model SP-173162-0010-001.zip Specifications Application Specification AS-173162-0001-001.pdf Product Specification PS-173162-0001-001.pdf Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category High-Speed I/O Connectors Series 173162 Description Nano-Pitch I/O Receptacle, Straight, Through Hole, with Cap, 80 Circuits Application Wire-to-Board Component Type Receptacle Product Family Nano-Pitch I/O Interconnect System Product Name Nano-Pitch I/O Type N/A UPC 889056641555 UL E29179 Current - Maximum per Contact 0.5A Grounding to Panel None Shielded No Voltage - Maximum 30V AC (RMS)/DC Circuits (Loaded) 80 Circuits (maximum) 80 Color - Resin Black Agency Electrical Physical Durability (mating cycles max) 250 Flammability 94V-0 Gender Receptacle Keying to Mating Part None Lock to Mating Part Yes Material - Metal Copper Alloy Material - Plating Mating Gold Material - Plating Termination Tin Material - Resin High Temperature Thermoplastic Net Weight 1.623/g Number of Rows 2 Orientation Vertical Packaging Type Embossed Tape on Reel Panel Mount No PCB Locator Yes PCB Retention Yes PCB Thickness - Recommended 1.57mm Pitch - Mating Interface 0.50mm Pitch - Termination Interface 0.50mm Plating min - Mating 0.762µm Plating min - Termination 2.540µm Polarized to Mating Part Yes Polarized to PCB Yes Ports 1 Temperature Range - Operating -40° to +80°C Termination Interface Style Through Hole Waterproof / Dustproof No Mates With / Use With Mates with Part(s) Description Part Number Nano-Pitch I/O-to-Nano-Pitch I/O Cable Assemblies 205058 This document was generated on Jan 24, 2024
