1804140113

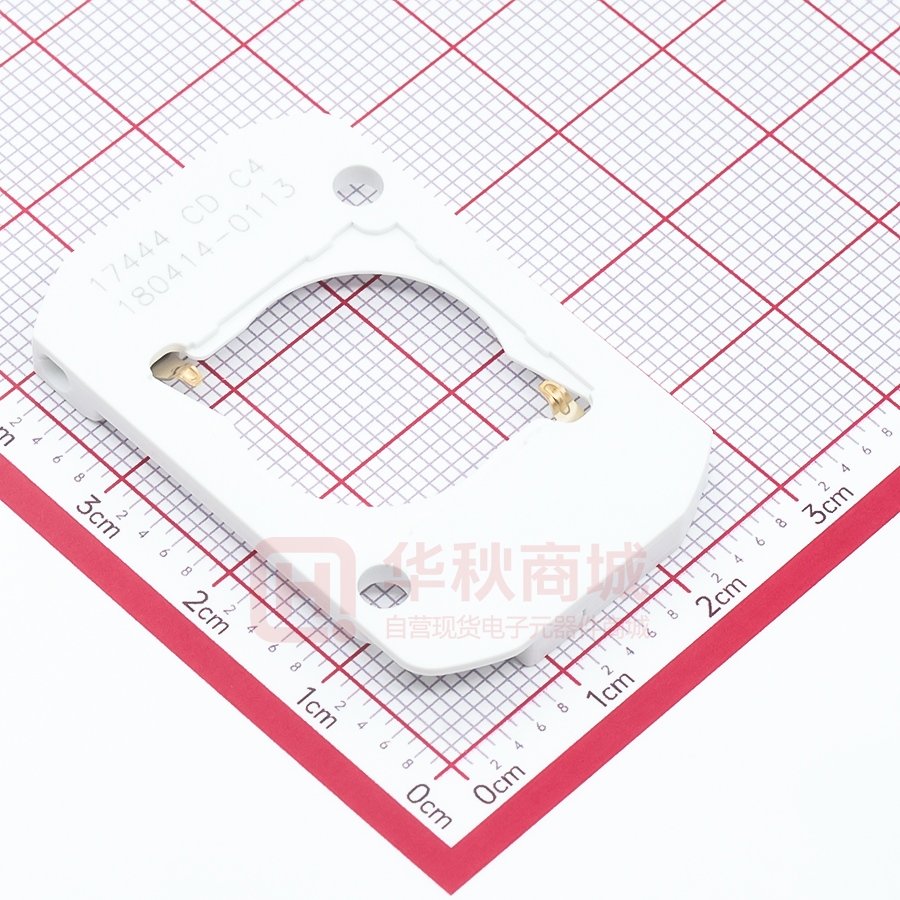

9 7 8 PART NUMBER E 6 5 4 3 DESCRIPTION 2 1 AGENCY APPROVAL MATERIAL 180414-0103 COB LED HOLDER 19.0MM X 19.0MM SQUARE POLYAMIDE (PA66) GLASS FILLED, COLOR: NATURAL UL496 FILE E345583 180414-0113 COB LED HOLDER 19.0MM X 19.0MM SQUARE POLYESTER (PBT) GLASS FILLED, COLOR: WHITE UL496 FILE E345583 180414-0203 COB LED HOLDER 19.0MM X 19.0MM SQUARE WITH TAB CAP POLYAMIDE (PA66) GLASS FILLED, COLOR: NATURAL UL496 FILE E345583 180414-0213 COB LED HOLDER 19.0MM X 19.0MM SQUARE WITH TAB CAP POLYESTER (PBT) GLASS FILLED, COLOR: WHITE UL496 FILE E345583 E HOLDER ASSEMBLY P/N 180414-0103 P/N 180414-0113 (26.0) D D PART MARKED WITH DATE CODE (YYWWD) YYWWD CD X MFG PLANT (CD) 180414-01X3 REVISION (X) PART NUMBER (180414-01X3) (16.1) (40.5) C (⌀18.0) B C (2X ⌀3.25) (4.1) B (15.7) ISOMETRIC VIEW 1 A NOTES: 1. MATERIALS: HOUSING: SEE CHART; TERMINAL: COPPER ALLOY 2. FINISHES: TERMINAL: NICKEL (Ni) UNDERPLATE 1.27 µm, SELECT TIN (Sn) 2.54µm, SELECT GOLD (Au) 0.76µm 3. PRODUCT SPECIFICATION: PS-180414-001 4. PACKAGING SPECIFICATION: PK-180419-006 5. APPLICATION SPECIFICATION: AS-180412-001 6. SEE SHEET 3 FOR APPLICATION NOTES 7. ELV AND ROHS COMPLIANT 8. ALL DIMENSIONS IN PARENTHESIS (XX.XX) ARE FOR REFERENCE ONLY. SCALE 1:1 SYMBOLS = 0 = 0 = 0 DOCUMENT STATUS 9 P1 RELEASE DATE 2018/08/30 8 C 7 6 5 4 1:1 GENERAL TOLERANCES (UNLESS SPECIFIED) ANGULAR TOL ± 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± 0.13 1 PLACE ± 0.25 0 PLACES ± = 0 01:43:47 SCALE mm = 0 = 0 FORMAT: master-tb-prod-A3 REVISION: H DATE: 2018/01/18 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS = 0 0.5 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS CURRENT REV DESC: EC NO: 603651 DRWN: SCHEN76 CHK'D: BPISZCZOR APPR: BPISZCZOR INITIAL REVISION: DRWN: MCOLE APPR: DMCGOWAN THIRD ANGLE PROJECTION DRAWING 2018/08/22 2018/08/30 2018/08/30 2012/05/24 2012/08/06 A3-SIZE 180414 3 PRODUCT CUSTOMER DRAWING 2 DOC TYPE DOC PART REVISION DOCUMENT NUMBER SD-180414-103 MATERIAL NUMBER SERIES A COB LED HOLDER 19.0 MM X 19.0 MM SQUARE PSD 001 B4 SHEET NUMBER CUSTOMER GENERAL MARKET 1 1 OF 4 9 7 8 6 5 4 3 2 1 E E HOLDER ASSEMBLY WITH TAB CAP P/N 180414-0203 P/N 180414-0213 (27.1) D PART MARKED WITH D DATE CODE (YYWWD) MFG PLANT (CD) YYWWD CD X REVISION (X) 180414-02X3 PART NUMBER (180414-02X3) C (40.5) B (⌀18.0) (16.1) C (2X ⌀3.25) (4.1) (15.7) B ISOMETRIC VIEW 2 SCALE 1:1 SYMBOLS = 0 = 0 = 0 A 9 P1 RELEASE DATE 2018/08/30 8 01:43:47 C 7 6 5 4 1:1 GENERAL TOLERANCES (UNLESS SPECIFIED) ANGULAR TOL ± 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± 0.13 1 PLACE ± 0.25 0 PLACES ± = 0 DOCUMENT STATUS SCALE mm = 0 = 0 FORMAT: master-tb-prod-A3 REVISION: H DATE: 2018/01/18 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS = 0 0.5 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS CURRENT REV DESC: EC NO: 603651 DRWN: SCHEN76 CHK'D: BPISZCZOR APPR: BPISZCZOR INITIAL REVISION: DRWN: MCOLE APPR: DMCGOWAN THIRD ANGLE PROJECTION DRAWING 2018/08/22 2018/08/30 2018/08/30 2012/05/24 2012/08/06 A3-SIZE 180414 3 PRODUCT CUSTOMER DRAWING 2 DOC TYPE DOC PART REVISION DOCUMENT NUMBER SD-180414-103 MATERIAL NUMBER SERIES A COB LED HOLDER 19.0 MM X 19.0 MM SQUARE PSD 001 B4 SHEET NUMBER CUSTOMER GENERAL MARKET 1 2 OF 4 9 7 8 5 6 4 3 2 1 E E 23.00 11.50 2X M3 OR 4-40 THREADED HOLES TORQUE: CERAMIC 0.2 N-M MIN TO 0.4 N-M MAX ALUMINUM 0.4 N-M MIN TO 0.8 N-M MAX D D 20.00 10.00 C C (⌀43) B B RECOMMENDED MOUNTING DIMENSIONIS NOTES: 1. WIRE GAUGE: 18, 20, OR 22 AWG, SOLID OR STRANDED WITH SYMBOLS = 0 TIN OVERCOAT. STRIP LENGTH 10MM +2.0/-0.0MM. A = 0 RECOMMENDED MAXIMUM DIAMETER AFTER TINNING: 1.40MM. = 0 LARGER DIAMETER WIRES ARE ACCEPTABLE IF FULLY INSERTABLE IN WIRE TRAP AND NO WITHDRAWAL WITHIN 20N FORCE. DOCUMENT STATUS 9 RELEASE DATE 2018/08/30 8 01:43:47 C 7 6 5 4 1:1 GENERAL TOLERANCES (UNLESS SPECIFIED) ANGULAR TOL ± 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± 0.13 1 PLACE ± 0.25 0 PLACES ± = 0 P1 SCALE mm = 0 = 0 FORMAT: master-tb-prod-A3 REVISION: H DATE: 2018/01/18 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS = 0 0.5 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS CURRENT REV DESC: EC NO: 603651 DRWN: SCHEN76 CHK'D: BPISZCZOR APPR: BPISZCZOR INITIAL REVISION: DRWN: MCOLE APPR: DMCGOWAN THIRD ANGLE PROJECTION DRAWING 2018/08/22 2018/08/30 2018/08/30 2012/05/24 2012/08/06 A3-SIZE 180414 3 PRODUCT CUSTOMER DRAWING 2 DOC TYPE DOC PART REVISION DOCUMENT NUMBER SD-180414-103 MATERIAL NUMBER SERIES A COB LED HOLDER 19.0 MM X 19.0 MM SQUARE PSD 001 B4 SHEET NUMBER CUSTOMER GENERAL MARKET 1 3 OF 4 9 7 8 COB MFG E D 6 TYPE 5 4 DIM 'X' DIM 'Y' DIM 'Z' 3 2 1 DIM 'D' CITIZEN CLL030, CLL032, CLU034, CLU036, CLU038 19.0 19.0 0.90 17.0 TRIDONIC SLE G5 LES15 19.0 19.0 0.90 15.0 SEOUL ZC12, ZC18 19.0 19.0 0.90 16.0 CITIZEN CLU720, CLU721 19.0 19.0 0.90 13.5 EVERLIGHT EAHP1919WA*, EAHP1919WB*, EAHP1919WC* 19.0 19.0 0.90 15.5 EVERLIGHT EA1919 36V/16W 19.0 19.0 0.90 15.5 EVERLIGHT EA1919 36V/19W 19.0 19.0 0.90 15.5 EVERLIGHT EA1919 36V/26W 19.0 19.0 0.90 15.5 VOSSLOH-SCHWABE DMC114C 19.0 19.0 1.00 11.9 VOSSLOH-SCHWABE DMC124***F, DMC125***F 19.0 19.0 1.00 13.1 VOSSLOH-SCHWABE DMC125C 19.0 19.0 1.00 13.1 VOSSLOH-SCHWABE DMC128***F 19.0 19.0 1.00 15.8 BRIDGELUX H15 19.0 19.0 1.10 16.5 BRIDGELUX GEN. 7 V13 19.0 19.0 1.00 15.0 E D C C B B (DIM 'X') (DIM 'Z') (DIM 'Y') (⌀DIM 'D') SYMBOLS = 0 = 0 COB LED A = 0 SCALE 1:1 9 P1 RELEASE DATE 2018/08/30 8 01:43:47 C 7 6 5 4 1:1 GENERAL TOLERANCES (UNLESS SPECIFIED) ANGULAR TOL ± 4 PLACES ± = 0 3 PLACES ± = 0 2 PLACES ± 0.13 1 PLACE ± 0.25 0 PLACES ± = 0 DOCUMENT STATUS SCALE mm = 0 = 0 FORMAT: master-tb-prod-A3 REVISION: H DATE: 2018/01/18 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS = 0 0.5 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS CURRENT REV DESC: EC NO: 603651 DRWN: SCHEN76 CHK'D: BPISZCZOR APPR: BPISZCZOR INITIAL REVISION: DRWN: MCOLE APPR: DMCGOWAN THIRD ANGLE PROJECTION DRAWING 2018/08/22 2018/08/30 2018/08/30 2012/05/24 2012/08/06 A3-SIZE 180414 3 PRODUCT CUSTOMER DRAWING 2 DOC TYPE DOC PART REVISION DOCUMENT NUMBER SD-180414-103 MATERIAL NUMBER SERIES A COB LED HOLDER 19.0 MM X 19.0 MM SQUARE PSD 001 B4 SHEET NUMBER CUSTOMER GENERAL MARKET 1 4 OF 4
