2002411224

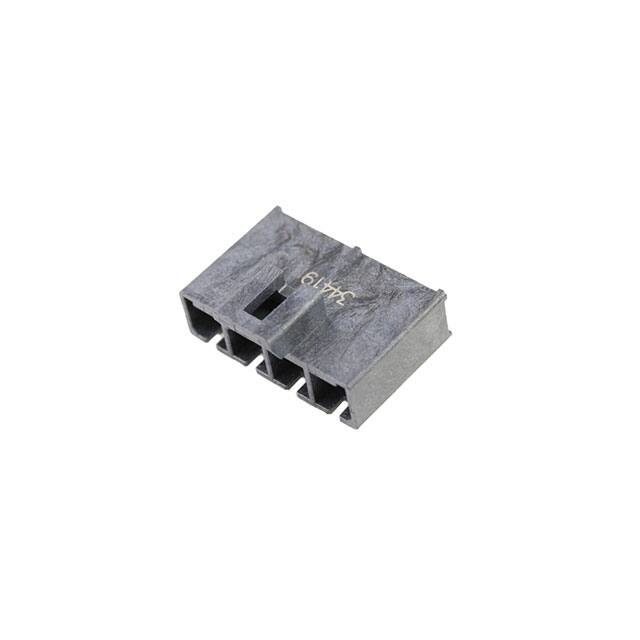

This document was generated on 11/30/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 2002411224 Active Mega-Fit Power Connectors Mega-Fit Right-Angle Header, Single Row, 5.70mm Pitch, 4 Circuits, 0.38µm Gold (Au) Plating, UL 94V-0, Glow-Wire Capable, Black Documents: 3D Model 3D Model (PDF) Drawing (PDF) Product Specification 1720631000-PS-000 (PDF) Application Specification 768232000-AS-000 (PDF) Packaging Specification 2002412000-001 (PDF) Datasheet (PDF) RoHS Certificate of Compliance (PDF) Agency Certification CSA UL 152514 E29179 General Product Family Series Application Overview Product Name UPC PCB Headers 200241 Power, Wire-to-Board Mega-Fit Power Connectors Mega-Fit 191128435673 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Capable Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PC Tail Length PCB Locator PCB Retention PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Polarized to PCB Temperature Range - Operating Termination Interface: Style No 4 4 Black 200 No 94V-0 Yes No None Yes High Conductivity Copper Gold Matte Tin Liquid Crystal Polymer 2.900/g 1 Right Angle 3.60mm No Yes 1.58mm, 2.36mm Tray 5.70mm 5.70mm 0.380µm 2.540µm Yes Yes -40° to +120°C Through Hole Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 200241 Series Mates With Mega-Fit Receptacle Housing 200456 Electrical Current - Maximum per Contact Voltage - Maximum 26.0A 600V AC (RMS)/DC Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing 768232000-AS-000 2002412000-001 1720631000-PS-000 2002412000-000 This document was generated on 11/30/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
