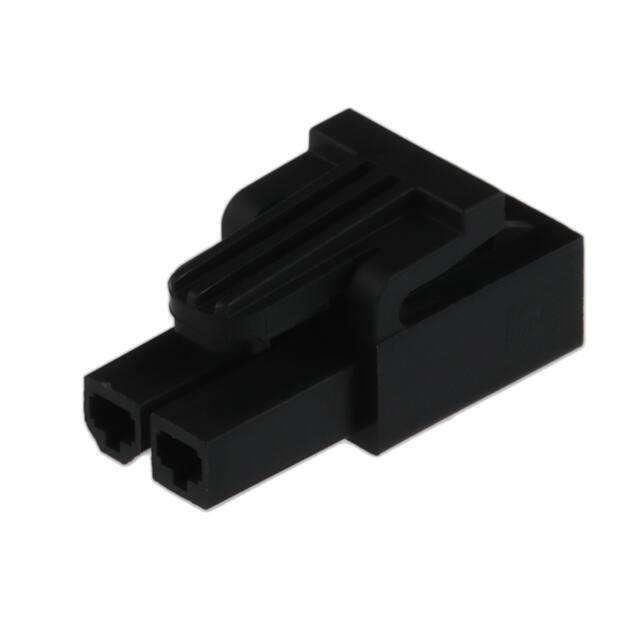

2004531002

Part Number : 2004531002 Product Description : Mini-Fit Sigma Receptacle Housing, 4.20mm Pitch, Single Row, Glow-Wire Capable, 2 Circuits Series Number : 200453 Status : Active Product Category : Connector Housings Documents & Resources Drawings Drawing 2004531002_sd.pdf Packaging Design Drawing 2004531000-PK-000.pdf 3D Models and Design Files 3D Model 2004531002_stp.zip Specifications Application Specification 2131370000-AS-000.pdf Product Specification 2029880002-PS-000.pdf Product Specification 2131370000-PS-000.pdf Test Summary 2131370001-TS-000.pdf Test Summary 2131370002-TS-000.pdf Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Not Low-Halogen per IEC 61249-221 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category Connector Housings Series 200453 Description Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Single Row, UL 94V0, Low-Halogen, 6 Circuits Application Power, Wire-to-Board, Wire-to-Wire Comments See product specification for current derating information. Product Family Mini-Fit Family Power Connectors Product Name Mini-Fit TPA2 UPC 889056445702 UL E29179 Circuits (maximum) 6 Color - Resin Black Flammability 94V-0 Gender Receptacle Glow-Wire Capable No Lock to Mating Part Yes Material - Resin Nylon Net Weight 1.550/g Number of Rows 1 Packaging Type Bag Agency Physical Panel Mount No Pitch - Mating Interface 4.20mm Pitch - Termination Interface 4.20mm Polarized to Mating Part Yes Stackable No Temperature Range - Operating -40° to +105°C Mates With / Use With Mates with Part(s) Description Part Number Mini-Fit TPA2 and Mini-Fit Sigma Single Row Plug Housings 200471 Mini-Fit TPA2 and Mini-Fit Sigma Single Row Plug Housings 200488 Mini-Fit Jr. Plug Housings 5559 Mini-Fit Jr. Vertical Headers 5566 Mini-Fit Jr. Right-Angle Headers 5569 Use with Part(s) Description Part Number Mini-Fit TPA2/Sigma Female Crimp Terminals 172718 Pre-Crimped Lead Mini-Fit Sigma Female-to-Mini-Fit Sigma Female 219670 Pre-Crimped Lead Mini-Fit Sigma Female-to-Pigtail 219671 Mini-Fit TPA2 and Mini-Fit Sigma Terminal Position Assurance (TPA) Retainers 172709 Mini-Fit TPA2 Connector Position Assurance (CPA) Retainers 203603 This document was generated on Jan 24, 2024
