2014471200

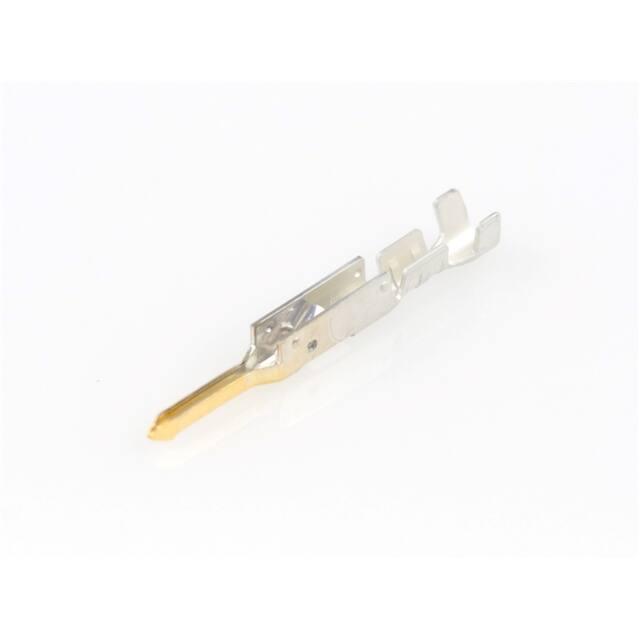

Part Number : 2014471200 Product Description : Nano-Fit Crimp Terminal, Male, 0.38µm Gold (Au) Plating, 2426 AWG Series Number : 201447 Status : Active Product Category : Crimp Terminals Documents & Resources Drawings Drawing 2014471200_sd.pdf Packaging Design Drawing 2014471000-PK-000.pdf Specifications Product Specification 2014471000-PS-000.pdf Test Summary 2014471000-TS-000.pdf Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category Crimp Terminals Series 201447 Description Nano-Fit Crimp Terminal, Male, 0.38µm Gold (Au) Plating, 24-26 AWG Application Power, Wire-to-Wire Product Family Nano-Fit Power Connectors Product Name Nano-Fit UPC 191130025527 Current - Maximum per Contact 7.5A Voltage - Maximum 250V AC (RMS)/DC Durability (mating cycles max) 25 Gender Male Material - Metal High Conductivity Copper Material - Plating Mating Gold Material - Plating Termination Matte Tin Net Weight 0.076/g Packaging Type Reel Plating min - Mating 0.380µm Plating min - Termination 2.540µm Termination Interface Style Crimp or Compression Wire Insulation Diameter 1.30mm Wire Size (AWG) 24, 26 Wire Size mm² N/A Electrical Physical Use with Part(s) Description Part Number Nano-Fit TPA Capable Single Row Plug Housings 200277 Nano-Fit Dual Row TPA Capable Plug Housings 201444 Application Tooling Global Description Part Number Hand Crimp Tool for Nano-Fit Plug Crimp Terminals, 24-26 AWG 2002186500 Extraction Tool for Nano-Fit Crimp Terminals, 24-26 AWG 2002221400 FineAdjust Applicator for Nano-Fit Wire-to-Wire Plug Terminals, 24-26 AWG, UL1061 Wire 2037023100 FineAdjust Applicator for Nano-Fit Wire-to-Wire Plug Terminals, 24-26 AWG, UL1007 Wire 2037023200 Application Tooling Japan Description Part Number S-1 Applicator for Nano-Fit Plug Terminals, 24-26 AWG, UL1061 Wire 2145523710 S-1 Applicator for Nano-Fit Plug Terminals, 24-26 AWG, UL1007 Wire 2145523720 This document was generated on Jan 24, 2024
