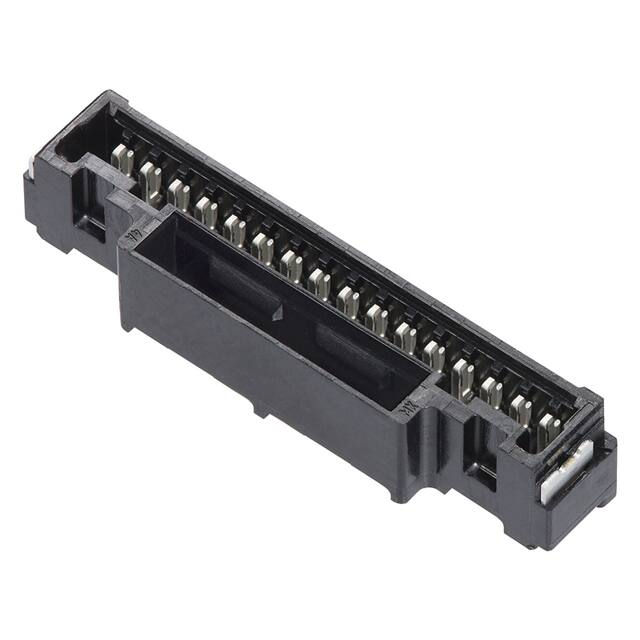

This document was generated on 10/11/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 2059570871 Active EU ELV Not Relevant 1.25mm Pitch, Micro-Lock Plus PCB Header with Potting Capability, Single Row, Vertical, Surface Mount, Tin-Bismuth Plating, Positive Lock, 8 Circuits, with Pick-andPlace Polyimide Tape, Black Agency Certification CSA UL LR19980 E29179 General Product Family Series Application Overview Product Name UPC PCB Headers 205957 Signal, Wire-to-Board microlock_plus_wiretoboard_connector_system Micro-Lock Plus 191130032266 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Glow-Wire Capable Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Polarized to Mating Part Polarized to PCB Robotic Placement Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style No 8 8 Black 30 No No No None Yes Brass Tin-Bismuth Tin-Bismuth Polyamide 332.250/mg 1 Vertical No Yes Embossed Tape on Reel 1.25mm 1.25mm 1.000µm Yes Yes Vacuum Pick-Up Tape Fully No Yes -40° to +105°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 3.6A 50V AC (RMS)/DC Material Info EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 205957 Series Mates With Micro-Lock Plus Receptacle Housing 204532 Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing AS-505565-001-001 2059579200-SPK-200 2045320001-PS-000, 2045321001-PS-000 2059573000-SD-000 This document was generated on 10/11/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
