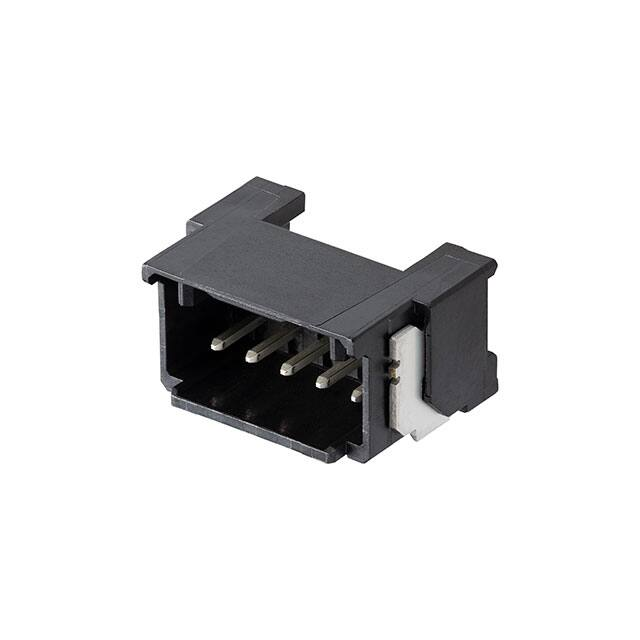

2059720051

This document was generated on 10/22/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 2059720051 Active Micro-One Wire-to-Board Connector System Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, 5 Circuits, Tin-Bismuth Plating, Black Documents: 3D Model Drawing (PDF) 3D Model (PDF) Product Specification 2059790000-PS-000 (PDF) Application Specification 2059790000-AS-000 (PDF) Packaging Specification 2059729200-SPK-200 (PDF) Datasheet (PDF) RoHS Certificate of Compliance (PDF) General Product Family Series Application Overview Product Name UPC PCB Headers 205972 Power, Wire-to-Board Micro-One Wire-to-Board Connector System Micro-One 191130093403 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Glow-Wire Capable Lock to Mating Part Material - Metal Material - Plating Mating Material - Resin Net Weight Number of Rows Orientation PCB Retention Packaging Type Pitch - Mating Interface Polarized to PCB Shrouded Temperature Range - Operating Termination Interface: Style No 5 5 Black 30 No No Yes Brass Tin-Bismuth Polyamide 912.681/mg 1 Right Angle Yes Embossed Tape on Reel 2.00mm Yes Fully -40° to +105°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 4.0A 250V AC (RMS)/DC Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing 2059790000-AS-000 2059729200-SPK-200 2059790000-PS-000 2059720000-SD-000 This document was generated on 10/22/2021 Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 205972 Series Mates With Micro-One Receptacle Housing 205979 , 212724 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
