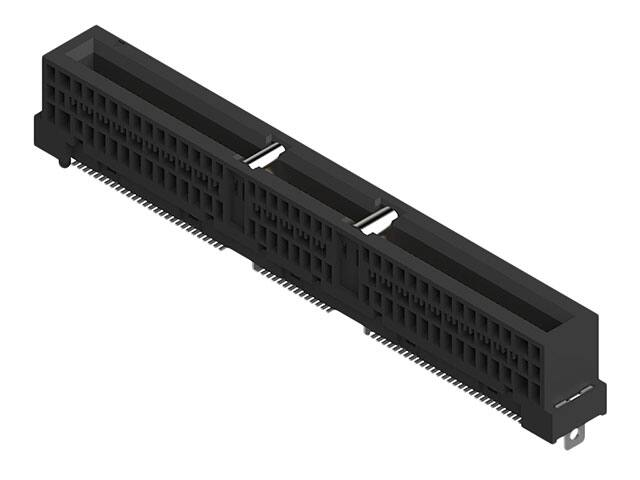

This document was generated on 08/26/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 2066530140 Active Sliver Edge Card Connector and Cable Assemblies 0.60mm Pitch Sliver Edge Card Connector, Vertical, 32 Gbps, 1.57mm PCB Thickness, 4C, 140 Circuits, with Metal Key Option Documents: 3D Model 3D Model (PDF) Drawing (PDF) Product Specification 2066530001-PS-000 (PDF) Application Specification 2066530001-AS-000 (PDF) Packaging Specification 2066530140-PKG (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only Agency Certification CSA UL LR19980 E29179 General Product Family Series Component Type Data Rate Edge Card Thickness High Power Bay (30.0A or more) Orientation Overview Product Name Standard Based UPC Edge Card Connectors 206653 Edgecard to PCB 32.0 Gbps 1.57mm No Vertical Sliver Edge Card Connector and Cable Assemblies Sliver General 193264190966 Physical (p)ower-(s)ignal Configuration Circuit Size Range Circuits (Loaded) Color - Resin Durability (mating cycles max) Flammability Keying to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight PCB Locator PCB Retention PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Plating min - Mating Plating min - Termination Temperature Range - Operating Termination Interface: Style 140s - 0p 65-200 Circuits 140 Black 200 94V-0 Yes Copper Alloy Gold Matte Tin Liquid Crystal Polymer 3.003/g Yes Yes 1.57mm Embossed Tape on Reel 0.60mm 0.762µm 2.540µm -55° to +85°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 1.1A 29V AC (RMS)/DC Material Info EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 206653 Series Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing 2066530001-AS-000 2066530140-PKG 2066530001-PS-000 2066530140-000 This document was generated on 08/26/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
