2068320802

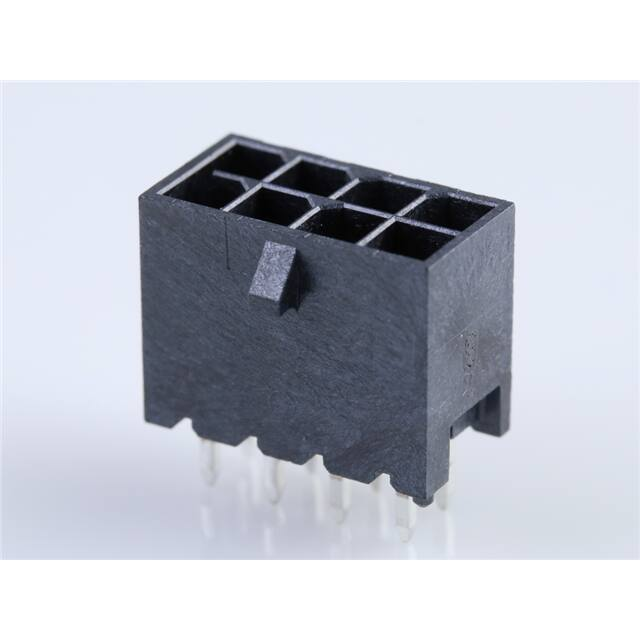

This document was generated on 11/11/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 2068320802 Active Micro-Fit+ Connector System Micro-Fit+ Vertical Header, 3.00mm Pitch, Dual Row, 8 Circuits, 0.38µm Gold (Au) Plating, UL 94V-0, Glow-Wire Capable, Black, Tray Documents: 3D Model Drawing (PDF) 3D Model (PDF) Product Specification 2064600000-PS-000 (PDF) Packaging Specification 2068320000-PK-000 (PDF) Test Summary 2064600000-TS-000 (PDF) Datasheet (PDF) RoHS Certificate of Compliance (PDF) Agency Certification CSA UL LR19980 E29179 General Product Family Series Application Overview Product Name UPC PCB Headers 206832 Power, Wire-to-Board Micro-Fit+ Connector System Micro-Fit+ 193264162406 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Flammability Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PC Tail Length PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Polarized to Mating Part Polarized to PCB Shrouded Temperature Range - Operating Termination Interface: Style No 8 8 Black 200 94V-0 Yes Yes Yes High Copper Alloy Gold Matte Tin Liquid Crystal Polymer 1.026/g 2 Vertical 3.18mm 1.57mm Tray 3.00mm 3.00mm 0.380µm Yes Yes Yes -40° to +105°C Through Hole Electrical Current - Maximum per Contact Voltage - Maximum 12.5A 600V AC (RMS)/DC Material Info Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 206832 Series Mates With Micro-Fit+ Receptacle 206461 Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing Test Summary 2068320000-PK-000 2064600000-PS-000 2068320000-SD-000 2064600000-TS-000 This document was generated on 11/11/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
