2077601081

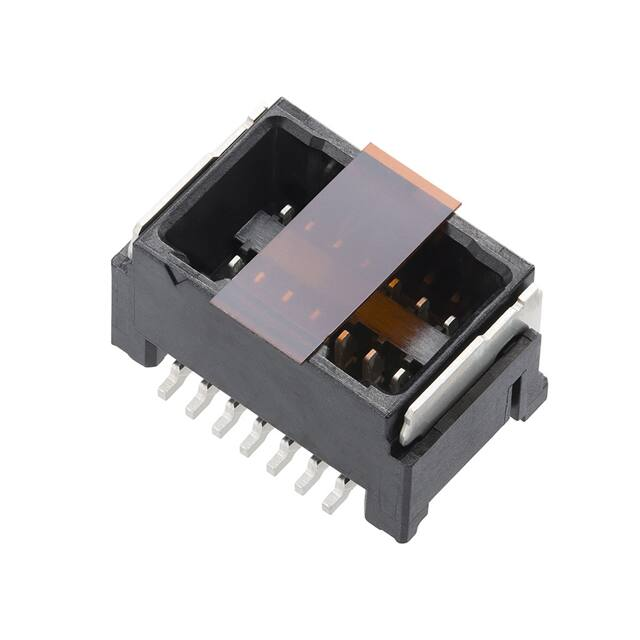

This document was generated on 11/29/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 2077601081 Active Micro-Lock Plus Wire-to-Board Connector System 1.25mm Pitch, Micro-Lock Plus PCB Header with Potting Capability, Dual Row, Vertical, Surface Mount, Tin-Bismuth Plating, 10 Circuits, Black, with Pick-and-Place Polyimide Tape Documents: 3D Model 3D Model (PDF) Drawing (PDF) Product Specification 2045230001-PS-000 (PDF) Product Specification 2045231001-PS-000 (PDF) Application Specification AS-505432-001-001 (PDF) Packaging Specification 2077609200-SPK-200 (PDF) Datasheet (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only EU ELV Not Relevant Agency Certification UL E29179 General Product Family Series Application Overview Product Name UPC PCB Headers 207760 Signal, Wire-to-Board Micro-Lock Plus Wire-to-Board Connector System Micro-Lock Plus 193264084944 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Capable Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Polarized to Mating Part Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style No 10 10 Black 30 No 94V-1 No No None Yes Brass Tin-Bismuth Tin-Bismuth Polyamide 894.390/mg 2 Vertical No Yes Embossed Tape on Reel 1.25mm 1.25mm 1.000µm Yes Yes Fully No Yes -40° to +105°C Surface Mount EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 207760 Series Mates With Micro-Lock Plus Receptacle Housing 204523 Electrical Current - Maximum per Contact Voltage - Maximum 2.0A 50V AC (RMS)/DC Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing AS-505432-001-001 2077609200-SPK-200 2045230001-PS-000, 2045231001-PS-000 2077600000-SD-000 This document was generated on 11/29/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
