2081001

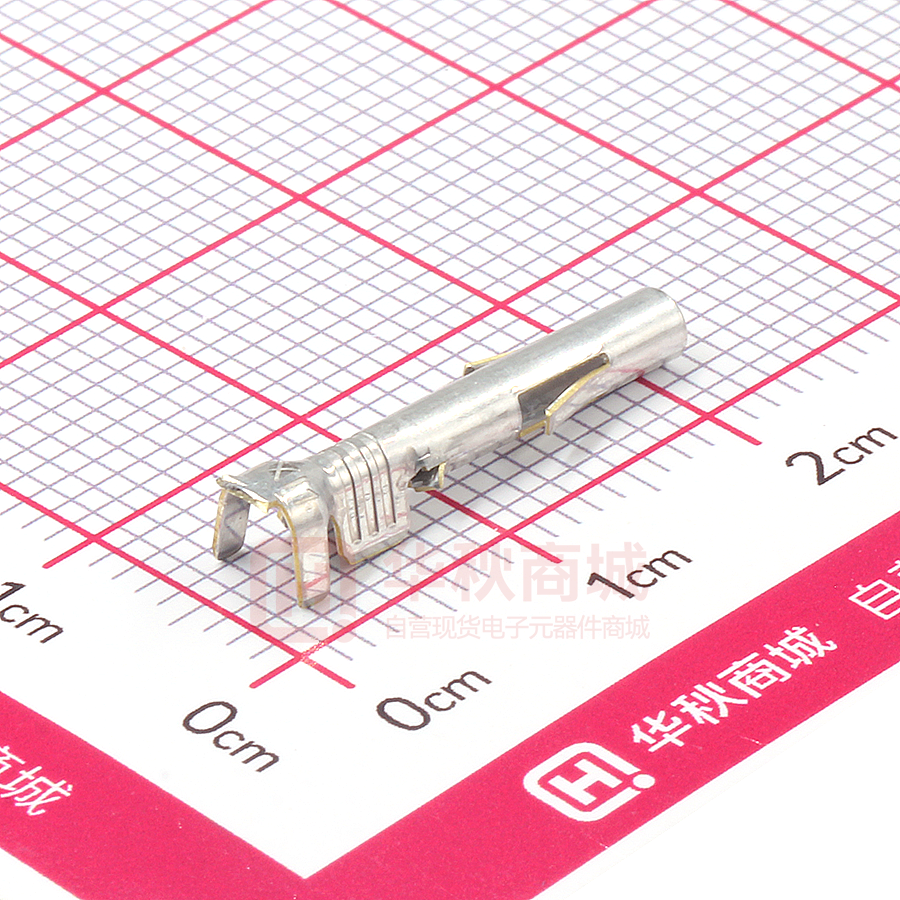

Part Number : 02081001 Product Description : MLX Female Crimp Terminal 42024, 20-14 AWG, Reel, Brass, Tin (Sn) Plating Series Number : 42024 Status : Active Product Category : Crimp Terminals Engineering Number : 42024-1A1 Packaging Alternative : 02081002 (Bag) Documents & Resources Drawings 002081001_sd.pdf Specifications PS-42022-0001-001.pdf TS-42022-0001-001.pdf Product Environment Compliance Compliance GADSL/IMDS Compliant with Exemption 44 China RoHS EU ELV Compliant per 2000/53/EC Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2024)7663-DC (21 Jan 2025) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category Crimp Terminals Series 42024 Description MLX Female Crimp Terminal 42024, 20-14 AWG, Reel, Brass, Tin (Sn) Plating Application Power, Wire-to-Board, Wire-to-Wire Product Name MLX UPC 800753615878 Gender Female Material - Metal Brass Material - Plating Mating Tin Material - Plating Termination Tin Net Weight 0.406/g Packaging Type Reel Plating min - Mating 0.508µm Plating min - Termination 0.508µm Termination Interface Style Crimp or Compression Wire Insulation Diameter 1.52-3.30mm Wire Size (AWG) 14, 16, 18, 20 Wire Size mm² N/A Lead-Free Process Capability N/A Physical Solder Process Data Application Tooling Global Description Part Number Extraction Tool for MLX 2.13mm Diameter Pin and Socket Crimp Terminals 11010168 PremiumGrade Hand Crimp Tool for MLX Pin and Socket Terminals, 20-14 AWG 638116800 FineAdjust Applicator for Crimp Terminals, 20-14 AWG Wire with 2.08-2.50mm Diameter Insulation 639007500 FineAdjust Applicator for Crimp Terminals, 20-14 AWG Wire with 2.65-3.30mm Diameter Insulation 639009800 FineAdjust Applicator for Crimp Terminals, 20-14 AWG Wire with 2.41-2.95mm Diameter Insulation 639009900 T2 Terminator for MLX Crimp Terminals, 20-14 AWG 639107500 T2 Terminator Tooling Die for Crimp Terminals, 20-14 AWG Wire 639109800 T2 Terminator Tooling Die for Crimp Terminals, 20-14 AWG Wire 639109900 This document was generated on Apr 01, 2025
