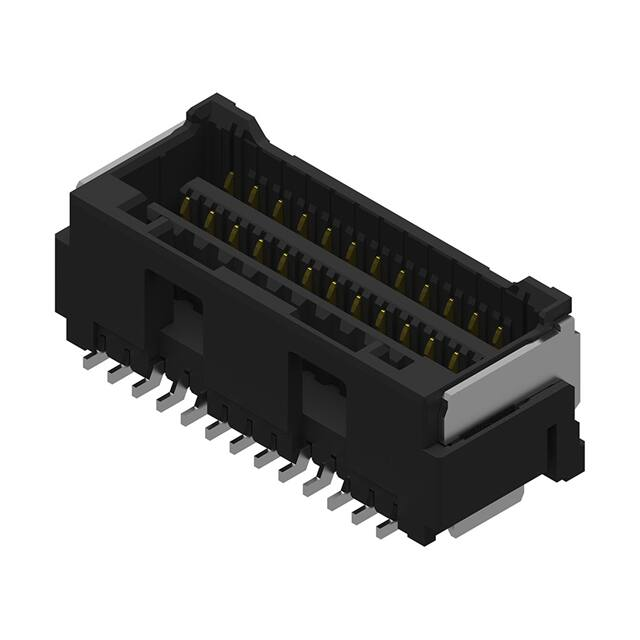

2132271011

厂商：
MOLEX10(莫仕)
封装：
SMD,P=1.5mm
描述：
线对板针座 2x5P 立贴间距:1.5mm

数据手册：

下载2132271011.pdf

立即购买

详情介绍
数据手册
价格&库存

2132271011 数据手册

This document was generated on 10/11/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 2132271011 Active CLIK-Mate Wire-to-Board Connectors 1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Dual Row, Surface Mount, Vertical, 0.10µm Gold (Au) Plating, 10 Circuits, Black Documents: 3D Model Drawing (PDF) 3D Model (PDF) Product Specification 5031490002-PS-000 (PDF) Product Specification 5031491002-PS-000 (PDF) Packaging Specification 2132279200-SPK-200 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Application Overview Product Name UPC PCB Receptacles 213227 Signal, Wire-to-Board CLIK-Mate Wire-to-Board Connectors CLIK-Mate 193264242696 Physical Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Glow-Wire Capable Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Resin Net Weight Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating Plating min - Termination Polarized to Mating Part Polarized to PCB Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style 10 10 Black 30 No Yes Yes Yes Copper Alloy Gold Polyamide 1160.000/mg 2 Vertical No Yes Embossed Tape on Reel 1.50mm 1.50mm 0.102µm 0.102µm Yes No No Yes -40° to +105°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 2.0A 100V AC (RMS)/DC Material Info Reference - Drawing Numbers Packaging Specification Product Specification 2132279200-SPK-200 5031490002-PS-000, 5031491002-PS-000 EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Not Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 213227 Series Mates With CLIK-Mate Housing 503149 Sales Drawing 2132270000-SD-000 This document was generated on 10/11/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

下载 PDF

2132271011

物料型号为2132271011，属于Molex公司的CLIK-Mate系列，是一种1.50mm间距的双排线对板连接器，具有10个电路，黑色，垂直安装，表面贴装，金(Au)镀层，适用于信号传输的线对板应用。

器件简介：CLIK-Mate线对板连接器，提供10个电路，最大30次插拔寿命，不耐热丝测试，与配对部分有导引、键控和锁定功能。

引脚分配：该连接器为双排，共10个电路。

参数特性：电路数为10，最大30次插拔寿命，黑色树脂，铜合金材质，金镀层，聚酰胺树脂，净重1160毫克，垂直方向，表面贴装，1.50mm间距，最小金镀层厚度0.102微米，极化与配对部分，操作温度范围-40°C至+105°C。

功能详解：该连接器支持信号传输，具有表面贴装兼容性，最大电流2.0A，最大电压100V AC(RMS)/DC。

应用信息：适用于需要信号传输的线对板连接。

封装信息：采用凹版胶带卷装，包装规格为2132279200-SPK-200。

有关该物料的更多信息，如3D模型、产品规格和包装规格等，可访问Molex官网获取最新资料。
