2147532032

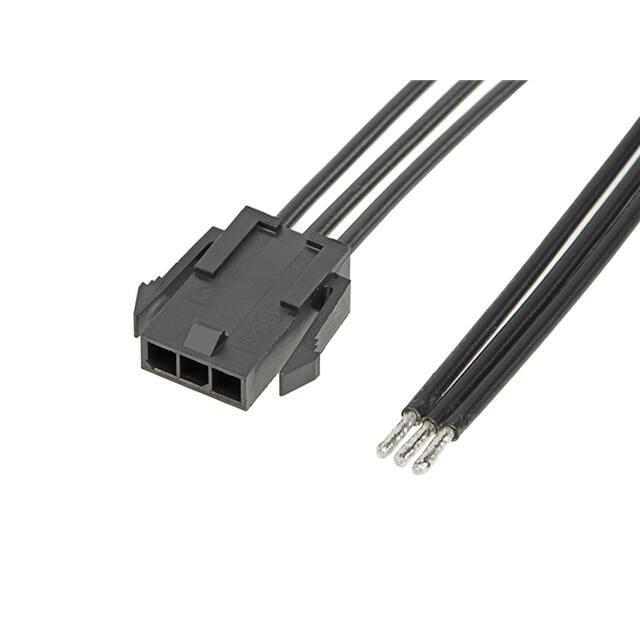

Part Number : 2147532032 Product Description : Micro-Fit 3.0 Male-toPigtail Off-the-Shelf (OTS) Cable Assembly, Single Row, 300.00mm Length, Gold (Au) Plating, 3 Circuits, Black Series Number : 214753 Status : Active Product Category : Power and Signal Cable Assemblies Documents & Resources Drawings Drawing 2147532032_sd.pdf 3D Models and Design Files 3D Model 2147532032_stp.zip Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Not Low-Halogen per IEC 61249-221 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category Power and Signal Cable Assemblies Series 214753 Description Micro-Fit 3.0 Male-to-Pigtail Off-theShelf (OTS) Cable Assembly, Single Row, 300.00mm Length, Gold (Au) Plating, 3 Circuits, Black Application Power, Wire-to-Wire Assembly Configuration Dual Ended Connectors Connector to Connector Micro-Fit 3.0-to-Pigtail Product Family Micro-Fit Connector System Product Name Micro-Fit 3.0 Type Discrete Wire Assembly UPC 193264586356 Current - Maximum per Contact 8.5A Voltage - Maximum 300V AC/DC Cable Length 300.00mm Circuits (Loaded) 3 Circuits (maximum) 3 Color - Resin Black Gender Male-Pigtail Lock to Mating Part Yes Material - Metal Phosphor Bronze Material - Plating Mating Gold Material - Plating Termination Tin Material - Resin Nylon Net Weight 11.228/g Electrical Physical Number of Rows 1 Overmolded No Packaging Type Bag Pitch - Mating Interface 3.00mm Plating min - Mating 0.762µm Plating min - Termination 2.540µm Single Ended Yes Termination Interface Style Crimp or Compression Wire/Cable Type Discrete Wire, UL 10002 Wire Insulation Diameter 1.85mm max. Wire Size (AWG) 18 Mates With / Use With Mates with Part(s) Description Part Number Micro-Fit 3.0 Single Row Receptacle Housings 43645 This document was generated on Jan 24, 2024
