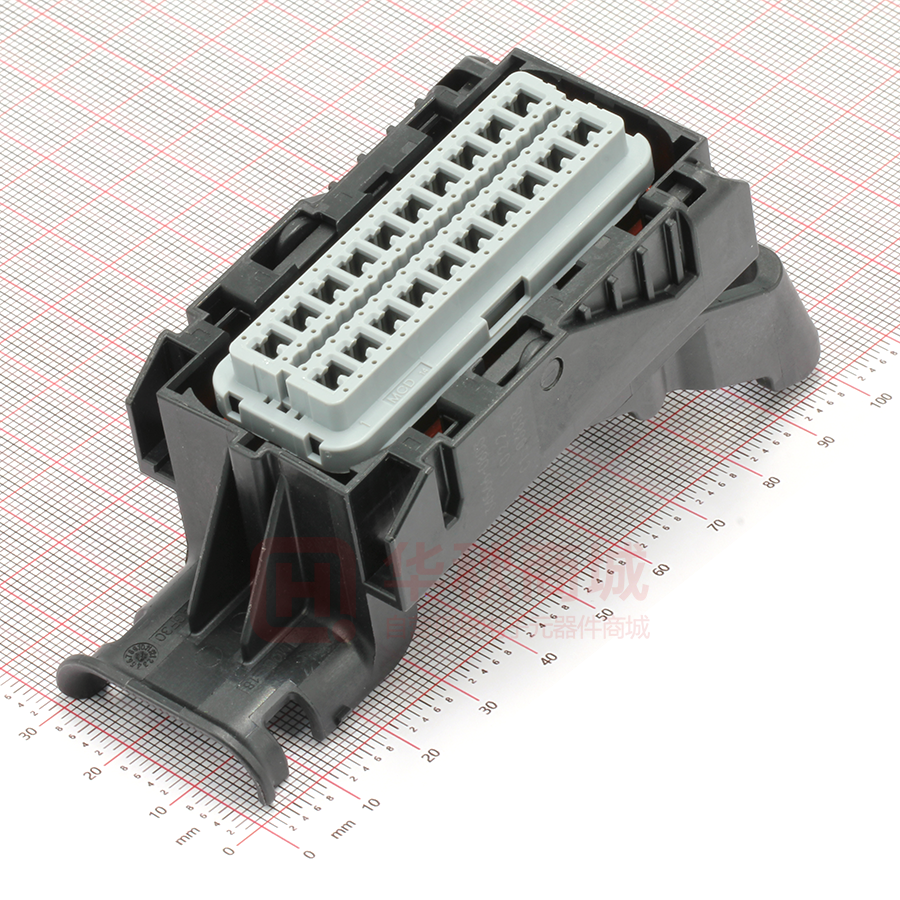

34566-0803

PRODUCT SPECIFICATION TABLE OF CONTENTS 1.0 Scope 2.0 Product Description 2.1 Product Name and Part Number 2.2 Dimensions, Materials and Markings 2.3 Applicable/ Integral components 2.4 Accessories/ Auxiliary components 2.5 Features and Benefits 2.6 Known Applications 3.0 Applicable Documents and Specifications 4.0 Safety Agency Approvals 5.0 Ratings / Performance 6.0 Packaging 7.0 Gages and Fixtures 8.0 Other Information/Miscellaneous REVISION: G ECR/ECN INFORMATION: EC No: UAU2014-0510 DATE: 2013/ 09 / 25 DOCUMENT NUMBER: PS-34566-0000 TITLE: 34566/34576 SEALED CONNECTOR SYSTEM MX123 QUAD ROW SHEET No. 1 of 8 CREATED / REVISED BY: CHECKED BY: APPROVED BY: S. RAJENDRANATH V. KOSHY V. KOSHY PRODUCT SPECIFICATION 1.0 SCOPE This specification covers the sealed 2.54 mm (0.10”) centerline pitch quad-row MX123 connector product line (wire to board) utilizing a 0.64 mm system terminated with 22 AWG to 18 AWG wire and ISO 0.35mm² to 1.0mm² wire using crimp technology & hybrid versions utilizing: i. 2.80 mm system terminated with 14 AWG wire. ii. 6.35 mm system terminated with 6.0mm² ISO wire. For information not covered in the product specification, please refer to appropriate Sales Drawing (SD) or Application Specification AS-34566-001 2.0 PRODUCT DESCRIPTION REVISION: G ECR/ECN INFORMATION: EC No: UAU2014-0510 DATE: 2013/ 09 / 25 DOCUMENT NUMBER: PS-34566-0000 TITLE: 34566/34576 SEALED CONNECTOR SYSTEM MX123 QUAD ROW SHEET No. 2 of 8 CREATED / REVISED BY: CHECKED BY: APPROVED BY: S. RAJENDRANATH V. KOSHY V. KOSHY PRODUCT SPECIFICATION 2.1 PRODUCT NAME AND PART NUMBER Mates/ Assembles To: Description Document # Series # SD - 34566 - 001 34566 SD - 34566 - 001 34566 SD - 34566 - 001 34822 SD - 34576 - 001 34576 18 ckt Receptacle SD - 34576 - 001 (to be validated) Connector 34851 Receptacle Connector Receptacle 73 ckt Connector 66 ckt Receptacle (to be validated) Connector Receptacle 56 ckt Connector 80 ckt Description Document # Direct Connect Interface Direct Connect 73 ckt Interface Direct Connect 66 ckt Interface Direct Connect 56 ckt Interface 12582682/ 12642695 12582682/ 12642695 12582682/ 12642695 12582683/ 12642694 Direct Connect Interface 12582683/ 12642694 80 ckt 18 ckt Series # 31387 31387 31387 31386 34852 Refer Document# for applicable Part Numbers. See PK-31300-019 for Packaging related information. For printed circuit board, solder etc. information, please see mating series # 31387 2.2 DIMENSIONS, MATERIALS AND MARKINGS All dimensions, materials and ID locations can be found on the applicable Document # in the above table. REVISION: G ECR/ECN INFORMATION: EC No: UAU2014-0510 DATE: 2013/ 09 / 25 DOCUMENT NUMBER: PS-34566-0000 TITLE: 34566/34576 SEALED CONNECTOR SYSTEM MX123 QUAD ROW SHEET No. 3 of 8 CREATED / REVISED BY: CHECKED BY: APPROVED BY: S. RAJENDRANATH V. KOSHY V. KOSHY PRODUCT SPECIFICATION COMPONENTS OF THE MX123 HARNESS CONNECTOR ASSEMBLY COMPONENT REVISION: G MATERIAL HOUSING 30% glass filled SPS/nylon blend TPA/ PLR 30% glass filled SPS/nylon blend GROMMET CAP 30% glass filled SPS/nylon blend SEALS (MAT SEAL & RING SEAL) Inherently lubricated silicone SLIDES (L & R) 30% glass filled PBT w/ PTFE MATE ASSIST LEVER 30% glass filled SPS/nylon blend CPA 10% glass filled PPE/ nylon blend ECR/ECN INFORMATION: EC No: UAU2014-0510 DATE: 2013/ 09 / 25 DOCUMENT NUMBER: PS-34566-0000 TITLE: 34566/34576 SEALED CONNECTOR SYSTEM MX123 QUAD ROW SHEET No. 4 of 8 CREATED / REVISED BY: CHECKED BY: APPROVED BY: S. RAJENDRANATH V. KOSHY V. KOSHY PRODUCT SPECIFICATION 2.3 APPLICABLE/ INTEGRAL COMPONENTS: Part Number Packaging Drawing # Sales Drawing Plating Description 33467-0003 SD-33468-001 Au 22 AWG 33467-0021 33467-0022 SD-33468-002 Au 0.35 mm2 33467-0006 33467-0005 SD-33468-001 Au 18-20 AWG 33467-0023 33467-0024 SD-33468-002 Au 0.50 - 0.75 mm2 34736-1001 34736-2001 SD-33468-001 Ag 22 AWG 34736-0025 34736-0026 SD-33468-002 Ag 0.35 mm2 34736-1002 34736-2002 SD-33468-001 Ag 18-20 AWG 34736-0027 34736-0028 Ag 0.50 - 0.75 mm2 Sn 14 AWG www.yazaki.com Sn/ Ag 6.0 mm² www.fci.com 34565-0003 SD-33468-002 Ford: 97BG-14474BDA Ford: XL3T-11474BA SD-34565-001 - Dress Cover 66/73/80 CKT 34575-0003 SD-34575-001 - Dress Cover 49/56/18 CKT D-Wind B-Wind Left Payoff Right Payoff 33467-0004 7116-4152-02 (YAZAKI) F385900 SEE TERMINAL PRODUCT SPECIFICATION PS-33468-001 PK-31300-180 2.4 ACCESSORIES / AUXILIARY COMPONENTS: Description Part Number Material Document # Packaging Drawing # MX64 Cavity Seal Plug 34586 – 0001 15% Glass filled Polyester (20% Regrind) SD-34586-001 PK-31300-438 MX64 Terminal service tool 63813 – 1400 N/A AS–34566-001 N/A REVISION: G ECR/ECN INFORMATION: EC No: UAU2014-0510 DATE: 2013/ 09 / 25 DOCUMENT NUMBER: PS-34566-0000 TITLE: 34566/34576 SEALED CONNECTOR SYSTEM MX123 QUAD ROW SHEET No. 5 of 8 CREATED / REVISED BY: CHECKED BY: APPROVED BY: S. RAJENDRANATH V. KOSHY V. KOSHY PRODUCT SPECIFICATION 2.5 FEATURES AND BENEFITS: • Receptacle and header housings with 6 unique mechanical polarization options and unique color coding offers the ability to use multiple connectors on one module without the risk of cross-mating incorrect harness connectors • • • • • Wire dress available in 2 options: 0 and 180° orientation allows for wire-routing design flexibility Anti-scooping features are friendly to “blind-mate” conditions Integrated PLR and CPA components reduce assembly complexity Optional header terminal filtering eliminates cross talk between adjacent circuits PCB tail customization available with solder-tail or compliant-pin technology, allowing for PCB design flexibility • Header placement flexibility allows top or bottom header loading to streamline module manufacturing process’s • • Precious plating enables stable contact resistance under extreme temperature and vibration conditions Lever retention lock on harness connector retains lever in pre-lock position for ease of installation 2.6 KNOWN APPLICATIONS: • • • • • On Transmission (‘T’ control modules) and On Engine (‘E’ control modules.) Automotive, Industrial and Recreational Vehicles. Safety/ Chassis. Body and Interior. Information and Entertainment. 3.0 APPLICABLE DOCUMENTS AND SPECIFICATIONS Description Document Number Sales Drawing See section 2.1 Application Specification AS-34566-001 Packaging Specification See section 2.1 4.0 SAFETY APPROVALS Agency REVISION: G Approval Status CSA File Number Not Applicable TUV License number Not Applicable UL File Number Not Applicable IMDS Available upon request Environmental Compliance Available on molex.com ECR/ECN INFORMATION: EC No: UAU2014-0510 DATE: 2013/ 09 / 25 DOCUMENT NUMBER: PS-34566-0000 TITLE: 34566/34576 SEALED CONNECTOR SYSTEM MX123 QUAD ROW SHEET No. 6 of 8 CREATED / REVISED BY: CHECKED BY: APPROVED BY: S. RAJENDRANATH V. KOSHY V. KOSHY PRODUCT SPECIFICATION 5.0 RATINGS/ PERFORMANCE/ VALIDATION Item Description 5.1.1 5.1.2 Rating Operating Voltage 14 Volts DC Maximum. Total Connection Resistance (contact resistance) per the following: 8milliΩ Maximum Dry circuit (low level) Resistance is determined by limiting the open circuit voltage of 20mV and 100mA maximum At rated current (Voltage drop) apply a 5 Ampere/ 1.0mm² current Terminal Current Rating / De-rating 5.1.3 5.1 Electrical Current rating is dependent on many factors, including but not limited to application, connector size, ambient temperature, blade size, etc. Hence evaluate current rating for each application 0.64mm See PS-33468-001 2.8mm - 14 AWG Sn - per USCAR-2 25.6 Amperes@ 25° C 15.8 Amperes@ 125° C 6.3mm 5.1.4 Discontinuities 5.1.5 Isolation Resistance 5.2.1 5.2 Temperature 5.2.2 TBD No Discontinuities > 7Ω for more than 1µS 100MegΩ minimum when 500 V DC between adjacent terminals and terminals to ground Operating Temperature -40° C to 125° C Non- operating Temperature -40° C to 125° C 5.3 Flammability The burn rate of the plastic material when tested to ISO 3795 does not exceed 100 mm/min. 5.4 Durability Connectors are cycled 10 times prior to environmental tests. 5.5 Seal-ability IP67K and IP6K9K REVISION: G ECR/ECN INFORMATION: EC No: UAU2014-0510 DATE: 2013/ 09 / 25 DOCUMENT NUMBER: PS-34566-0000 TITLE: 34566/34576 SEALED CONNECTOR SYSTEM MX123 QUAD ROW SHEET No. 7 of 8 CREATED / REVISED BY: CHECKED BY: APPROVED BY: S. RAJENDRANATH V. KOSHY V. KOSHY PRODUCT SPECIFICATION Product conforms to the following specifications: 1. GMW 3191 August 2000; Temperature Class 3, Vibration Class 1 and Sealing Class3 2. USCAR-2 Rev. 3; Temperature Class 3 3. IP67K and IP6K9K For Validation results • • CONTACT YOUR MOLEX SALES ENGINEER , OR See TS-34566-002 http://midasweb.global.molex.com:7041/midas/FileDownloadServlet?elid=CGDZZDKN 6.0 PACKAGING Parts are packaged to protect against damage during handling, transit and storage. Product must remain in the supplied packaging prior to assembly in production. 7.0 GAGES AND FIXTURES Gages and fixtures are referenced in the appropriate Control Plans. 8.0 OTHER INFORMATION/ MISCELLANEOUS A. FLASH / KNOCK OUT PATTERNS For existing Knock out pattern part #, refer to appropriate Sales Drawing. For adding new Knock out below: patterns, click link http://ahonet.global.molex.com/scripts/Configurator/Configurator.aspx B. MOLEX REPRESENTS AND WARRANTS TO BUYER FOR A PERIOD OF ONE (1) YEAR FROM THE DATE OF DELIVERY OF THE PRODUCTS THAT: 1) 2) THE PRODUCTS SHALL CONFORM TO THE MOLEX SPECIFICATIONS FOR THE PRODUCTS IN FORCE AT THE DATE OF DELIVERY OF THE PRODUCTS TO BUYER, AND THE PRODUCTS SHALL BE FREE FROM DEFECTS IN MATERIALS AND MANUFACTURING. EXCEPT AS EXPRESSLY PROVIDED ABOVE, MOLEX MAKES NO WARRANTY, EXPRESS OR IMPLIED, REGARDING THE PRODUCTS. ALL IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. IN ADDITION, MOLEX EXPRESSLY DISCLAIMS ANY WARRANTY OBLIGATIONS IN THOSE INSTANCES WHERE THE FAILURES RESULTED FROM THE MODIFICATION OF THE PRODUCTS BY BUYER OR ITS CUSTOMERS, IMPROPER HANDLING, USE OR INSTALLATION OF THE PRODUCTS BY BUYER OR ITS CUSTOMERS, OR ANY OTHER CAUSE BEYOND THE CONTROL OF MOLEX. REVISION: G ECR/ECN INFORMATION: EC No: UAU2014-0510 DATE: 2013/ 09 / 25 DOCUMENT NUMBER: PS-34566-0000 TITLE: 34566/34576 SEALED CONNECTOR SYSTEM MX123 QUAD ROW SHEET No. 8 of 8 CREATED / REVISED BY: CHECKED BY: APPROVED BY: S. RAJENDRANATH V. KOSHY V. KOSHY
