34791-5181

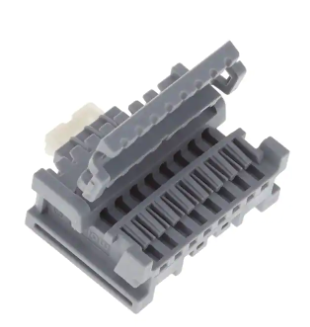

This document was generated on 09/26/2019 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0347915181 Active Mini50 Connection Systems Mini50 Unsealed Receptacle, Single Row, Bridged, with CPA, 8 Circuits, Polarization Option B, Gray Documents: 3D Model Drawing (PDF) Product Specification PS-34791-020-001 (PDF) Application Specification AS-34791-020-001 (PDF) Application Specification AS-34791-020-CH-001 (PDF) Application Specification AS-34791-020-FR-001 (PDF) Packaging Specification PK-31301-538-001 (PDF) RoHS Certificate of Compliance (PDF) Product Literature (PDF) Series image - Reference only EU ELV Compliant General Product Family Series Application Overview Polarization Product Literature Order No Product Name UPC Crimp Housings 34791 Automotive, Power, Wire-to-Board Mini50 Connection Systems B 987650-5442 Mini50 889056224512 Physical Circuits (maximum) Color - Resin Gender Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Polarized to Mating Part Stackable Temperature Range - Operating 8 Gray Receptacle No Yes Yes PBT 1.437/g 1 Bag No 2.00mm 2.00mm Yes No -40° to +105°C EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/71/2019 (16 July 2019) Halogen-Free Status Not Relevant For more information, please visit Contact US China ROHS ELV RoHS Phthalates Search Parts in this Series 34791 Series Mates With Mini50 Vertical Header 34792 , Mini50 Right-Angle Through Hole Header 34793 , Mini50 Right-Angle Surface Mount Header 34912 Use With CTX50 Unsealed Terminals 560023 Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing Not Relevant Compliant Not Contained AS-34791-020-001, AS-34791-020-CH-001, AS-34791-020-FR-001 PK-31301-538-001 PS-34791-020-001 SD-34824-003-001 This document was generated on 09/26/2019 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 34791-5181
