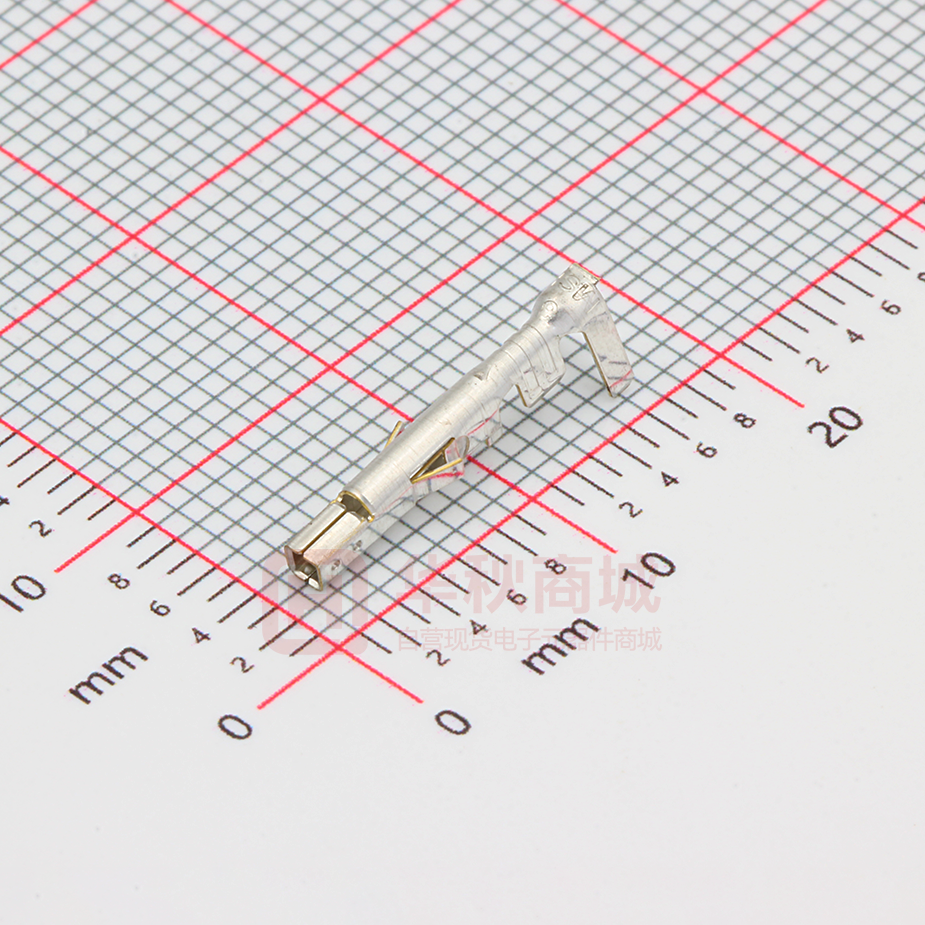

39000038

12 11 10 9 8 7 5 6 4 3 2 1 NOTES 1. MATERIAL: SEE CHART. 2. FINISH: SEE CHART. 3. PRODUCT SPECIFICATION: PS-5556-001, PS-5556-002, PS-5556-003. 4. PACKAGING SPECIFICATION: PK-5556-001 FOR CHAIN TERMINALS PK-5556-003 FOR LOOSE TERMINALS. 5. MATES WITH: 5558, 5566, 5569, 30069, 30070, 42440, 42404, 43879, 43810, 44068. 6. APPLICABLE HOUSING: 5557, 30067, 44516, OR 42474. THE NUMBER OF SERRATIONS TO BE ONE FOR WIRE RANGE #22-28. 7 8. WHEN TERMINALS ARE INSTALLED IN THE HOUSING THE WIRES ARE TO BE DRESSED IN SUCH A MANNER TO ALLOW THE TERMINALS TO FLOAT FREELY IN THE POCKET. 9. THIS TERMINAL IS DESIGNED FOR SINGLE WIRE CRIMPING. 10. PART CONFORMS TO CLASS "B" REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002. 11 TEXT ON PART IS FOR REFERENCE ONLY. TEXT AND TEXT LOCATION MAY VARY DEPENDING ON PART NUMBER AND/OR TOOL. REF (CUT OFF TAB LENGTH) H G H G F F 2.55 .100 2.15 .085 E 2.55 .100 2.15 .085 E CONTACT DIMPLE CONFIGURATIONS 7 #18-24 TERMINAL SHOWN REFLOWED MATTE TIN 0.00090/(.000035) MIN. (PREPLATE) (FINISH IS BRIGHT IN APPEARANCE, THICKNESS AS APPLIED PRIOR TO REFLOW) D REFLOWED MATTE TIN 0.00090/(.000035) MIN. OVER COPPER 0.00050/(.000020) MIN. (PREPLATE) (FINISH IS BRIGHT IN APPEARANCE, THICKNESS AS APPLIED PRIOR TO REFLOW) C B PLATING D PHOS BRONZE C BRASS B MATERIAL SYMBOLS = 0 = 0 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE IN/MM 10:1 GENERAL TOLERANCES (UNLESS SPECIFIED) = 0 = 0 = 0 A MM ± 3 PLACES ± ± 0.008 2 PLACES ± 0.2 ± 0.008 ± 0.2 ± 1 PLACE = 0 0 PLACES ± ANGULAR TOL DOCUMENT STATUS 12 FORMAT: Eng-lega-master-tb-prod-C REVISION: D DATE: 2018/01/18 P1 RELEASE DATE 11 2018/06/17 10 THIS DRAWING REPLACES DRAWING SD-5556**** 17:06:33 9 8 7 6 C = 0 INCH 4 PLACES ± = 0 = 0 CURRENT REV DESC: CORRECT DIM F TOL. ± ± 3.0 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 5 EC NO: 600516 DRWN: SALHAMY CHK'D: JBELL APPR: FSMITH INITIAL REVISION: DRWN: HIRAMOTO APPR: FSMITH THIRD ANGLE PROJECTION 4 2018/06/15 2018/06/15 2018/06/17 MINI FIT JR OVERALL TIN FEMALE CRIMP TERMINAL PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 1991/05/18 2011/02/21 DRAWING SERIES C-SIZE 5556 3 55560000-SD MATERIAL NUMBER PSD 000 CUSTOMER SEE CHART 2 A1 SHEET NUMBER GENERAL MARKET 1 OF 1 1 A
