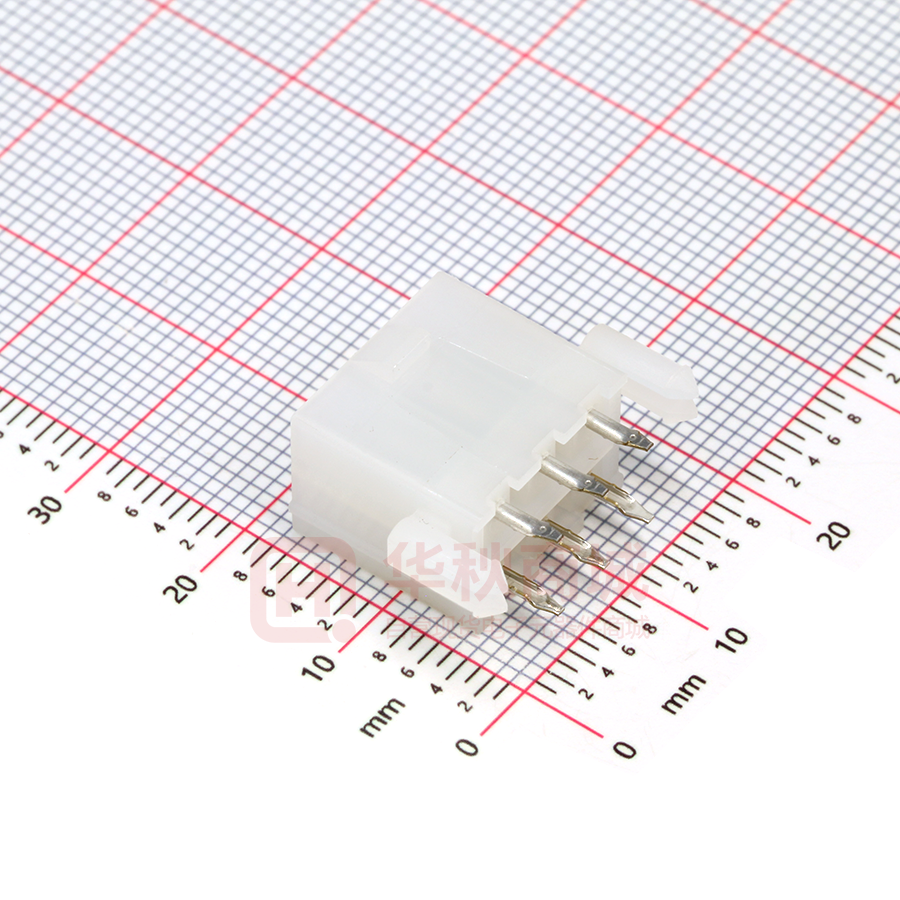

This document was generated on 09/14/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0039299063 Active Mini-Fit Family Power Connectors Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural Documents: 3D Model 3D Model (PDF) Drawing (PDF) Product Specification PS-5556-001-001 (PDF) Agency Certification CSA UL General Product Family Series Application Comments Packaging Specification PK-5566-001-001 (PDF) Test Summary TS-5556-002-001 (PDF) Test Summary TS-5566-002-001 (PDF) RoHS Certificate of Compliance (PDF) LR19980 E29179 Overview Product Name UPC PCB Headers 5566 Power, Wire-to-Board The 5566 header should be used with standard Mini-Fit female terminals. If increased amperage of up to 13A per circuit is needed, please consider using the Mini-Fit Plus HCS family 45750 terminals with 46015 headers; . See Molex Product specification PS-5666-001 for current de-rating information. Mini-Fit Family Power Connectors Mini-Fit Jr. 800754375849 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Capable Guide to Mating Part Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PC Tail Length PCB Locator PCB Retention PCB Thickness - Recommended Packaging Type Pitch - Mating Interface Pitch - Termination Interface Plating min - Mating No 6 6 Natural 30 No 94V-2 No No None Yes Brass Tin Tin Nylon 1.374/g 2 Vertical 3.50mm Yes Yes 1.60mm Tray 4.20mm 4.20mm 0.889µm Series image - Reference only EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)4569-DC (8 July 2021) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 5566 Series Mates With Mini-Fit Jr. Receptacle Housing 5557 Mini-Fit Jr. TPA Cable Assembly 45135 Mini-Fit Jr. Cable Assembly 245135 , Mini-Fit TPA2 Receptacle Housing 172708 Plating min - Termination Polarized to Mating Part Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style 0.889µm Yes Yes Fully No No -40° to +105°C Through Hole Electrical Current - Maximum per Contact Voltage - Maximum 9.0A 600V Solder Process Data Duration at Max. Process Temperature (seconds) Lead-freeProcess Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 005 WAVE 001 240 Material Info Engineering Number 5566-06A2 Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing Test Summary PK-5566-001-001 PS-5556-001-001 55660021-SD-000 TS-5556-002-001, TS-5566-002-001 This document was generated on 09/14/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
