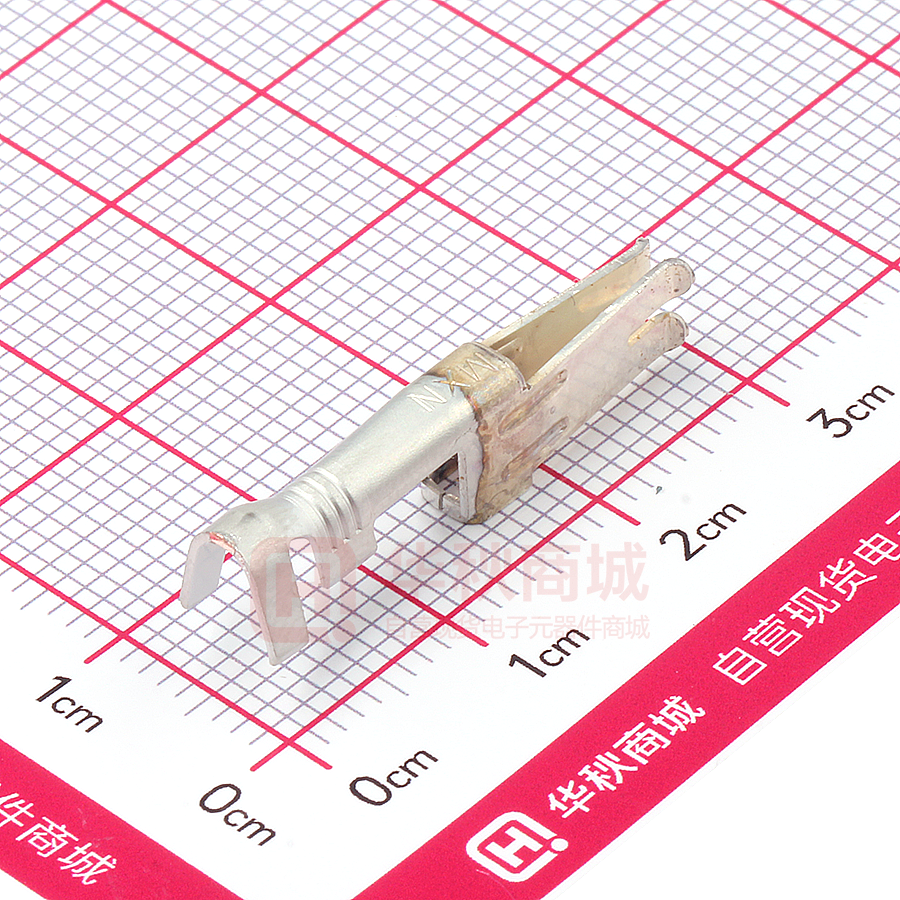

42815-0144

12 11 10 9 7 8 4 3 2 1 NOTES: 1. MATERIAL: COPPER ALLOY 151, 0.50mm THICK. 2. PLATING: OVERALL *TIN: 0.00254 MIN. BRIGHT TIN OVER 0.00127 MIN. NICKEL. SELECT GOLD: 0.00076 MIN. SELECT GOLD IN CONTACT AREA, 0.00127 MIN. SELECT *TIN IN CRIMP AREA, OVER 0.00127 MIN. NICKEL. SELECT SILVER: 0.00254 MIN. SELECT SILVER IN CONTACT AREA, 0.00254 MIN. SELECT *TIN IN CRIMP AREA, OVER 0.00127 MIN. NICKEL. 3. PRODUCT SPECIFICATION: PS-42815-001. 4. PACKAGING INFORMATION: PK-42815-001. 5. PART IS DESIGNED IN METRIC. 6. TERMINALS FOR USE WITH STRANDARED WIRE ONLY, STRANDED TINNED WIRE IS RECOMMENDED. 7 AFTER CRIMPING, THIS DIMENSION IS 3.55mm MINIMUM. 8. CRIMP SPECIFICATION: 638301000. 9. WHEN USING TIN-PLATED TERMINALS FOR APPLICATIONS INVOLVING VIBRATION AND/OR THERMAL CYCLING, MOLEX STRONGLY RECOMMENDS THE USE OF NYE LUBRICANT, NYOGEL 760G, ON THE MATING AREA OF THE TERMINAL. LUBRICANT SHOULD BE APPLIED AFTER THE TERMINALS ARE INSERTED INTO THE HOUSING. 10. PARTS CONFORM TO CLASS 'B' REQUIREMENT OF COSMETIC SPECPS-45499-002. 11. REFER AS-42815-001 FOR TIN PLATED TERMINALS RECOMMENDED LUBRICATION PROCEDURE. H G 2.14 1.97 3.05 1.00 ±0.20 F 5 6 0.50 MAX. CUT-OFF IN CRIMP TOOLING H G F E E 27.60 7 3.80 ±0.15 0.90 A B 4.80 D A D 6.20 B ISOMETRIC VIEW C C 5.94 REF. 3.80 REF. 5.69 REF. B MATERIAL NO. PLATING STATUS TIN 428150041 PLANNED FOR OBSOLESCENCE 428150042 SELECT GOLD ACTIVE B 428150144 SELECT SILVER ACTIVE 3.92 REF. R 1.14 REF. R 1.57 REF. SECTION A-A INSULATION CRIMP THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION SECTION B-B CONDUCTOR CRIMP DIMENSION UNITS SCALE MM 4:1 GENERAL TOLERANCES (UNLESS SPECIFIED) MM A ± 3 PLACES ± ± 2 PLACES ± 0.25 ± ± 0.4 ± 0 PLACES ± ANGULAR TOL DOCUMENT STATUS 12 P1 RELEASE DATE 11 2018/05/04 10 INCH 4 PLACES ± 1 PLACE FORMAT: Eng-lega-master-tb-prod-C REVISION: D DATE: 2017/10/06 CURRENT REV DESC: MIGRATED TO ECTR ± ± 0.5 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 12:38:12 9 8 7 6 5 EC NO: 171562 MINIFIT SR. FEMALE CRIMP 2017/08/16 TERMINAL, 14-16 AWG SELECT GOLD & SILVER PLT DRWN: ABABU01 CHK'D: ISHWARG APPR: ISHWARG INITIAL REVISION: DRWN: MFIRLEJ APPR: JCOMERCI THIRD ANGLE PROJECTION 4 2018/05/04 2018/05/04 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2002/05/15 2002/05/15 DRAWING SERIES C-SIZE 42815 3 SD-42815-020 MATERIAL NUMBER PSD 001 CUSTOMER SEE CHART 2 C SHEET NUMBER GENERAL MARKET 1 OF 1 1 A
