473460001

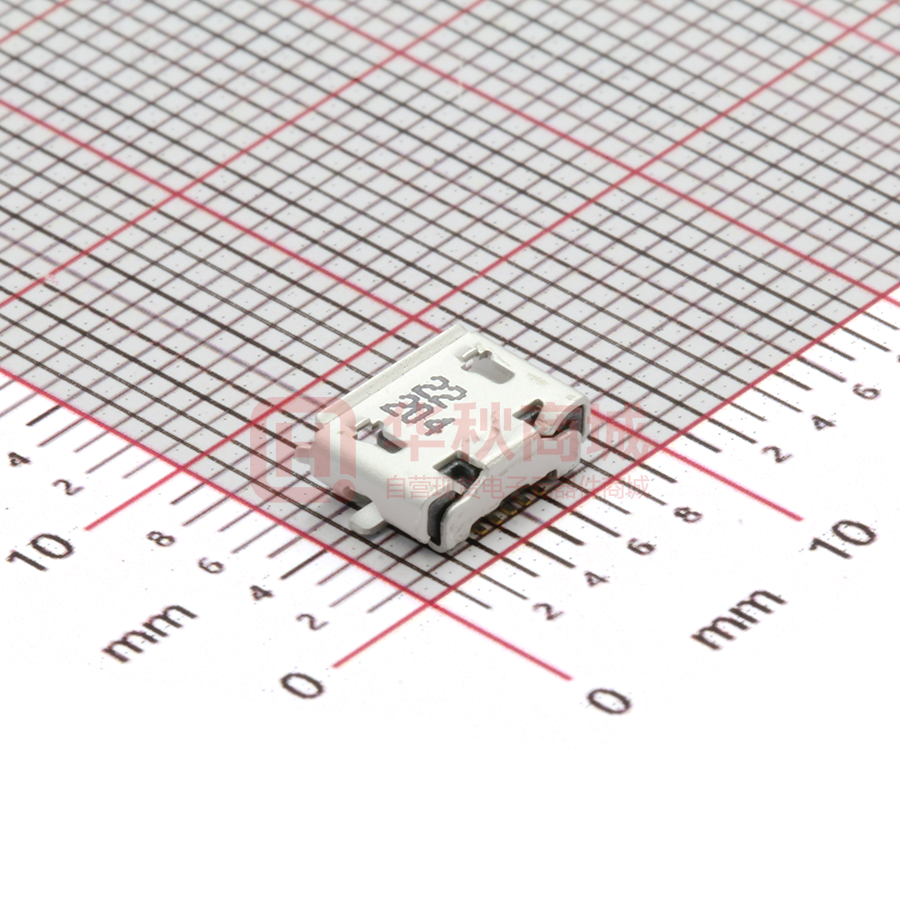

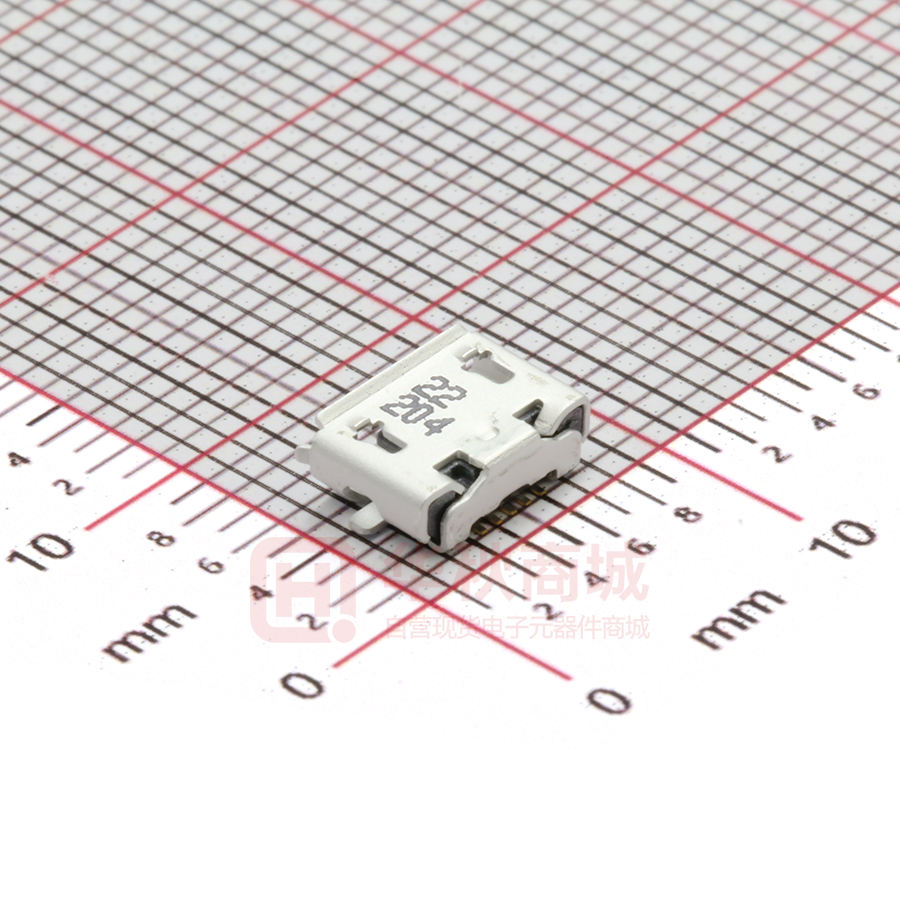

This document was generated on 08/04/2017 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 0473460001 Active Overview: Description: Consumer USB Products Micro-USB B Receptacle with Flange, Bottom Mount, Surface Mount, Lead-Free Documents: 3D Model Drawing (PDF) Product Specification PS-47346-001-001 (PDF) Agency Certification UL Packaging Specification PK-47346-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only E107635 General Product Family Series Application Comments Component Type Overview Product Name Type UPC I/O Connectors 47346 Wire-to-Board Signal contacts 1.0A, Power contacts 1.8A Receptacle Consumer USB Products USB 2.0 Micro-B 822350955478 Physical Boot Color Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Flammability Gender Keying to Mating Part Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Net Weight Number of Rows Orientation PCB Retention Packaging Type Panel Mount Pitch - Mating Interface Pitch - Termination Interface Polarized to Mating Part Ports Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style Waterproof / Dustproof N/A 5 5 Black 10000 94V-0 Receptacle Yes No Copper Alloy Gold Gold High Temperature Thermoplastic 0.247/g 1 Right Angle None Embossed Tape on Reel No 0.65mm 0.65mm Yes 1 Yes -30°C to +85°C Surface Mount No Electrical Current - Maximum per Contact Grounding to Panel Shield Type 1.8A, 1.0A Yes Full Shield EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/30/2017 (7 July 2017) Halogen-Free Status Low-Halogen Need more information on product environmental compliance? Email productcompliance@molex.com Please visit the Contact Us section for any non-product compliance questions. China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 47346 Series Shielded Voltage - Maximum Yes 30V AC (RMS) Solder Process Data Duration at Max. Process Temperature (seconds) Lead-freeProcess Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 010 REFLOW 001 260 Material Info Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing PK-47346-001 PS-47346-001-001 SD-47346-001-000 This document was generated on 08/04/2017 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 47346-0001
