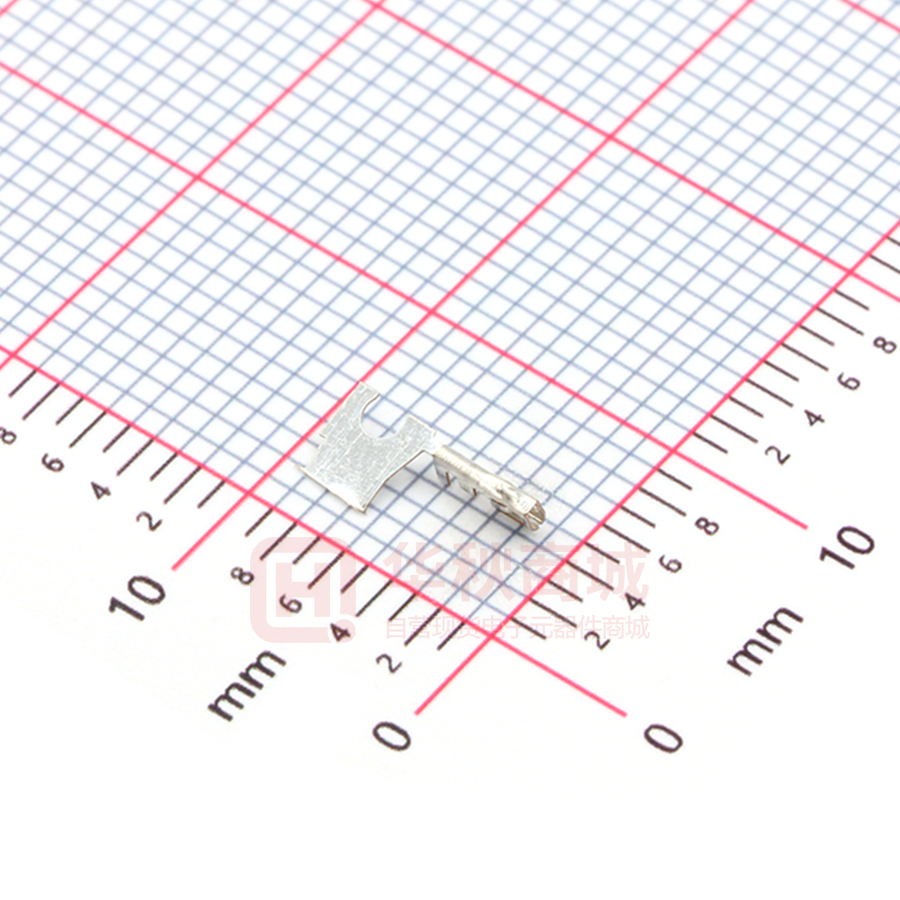

5013340000

10 9 7 8 5 6 4 3 2 1.07 0.96 1.25 F 0.98 F ⌀ 1.5 SECTION B-B SECTION A-A E 1 E NOTES: 1. 適合ハウジング: 501330**** 4 1.75 APPLICABLE HOUSING 1.7 0.65 0.55 0.78 A 501939**** 2. めっき仕様：表題欄参照 PLATING:SEE TABLE B 3. 圧着条件については、 圧着仕様書(CS-501193-001)を参照願います。 D D 4. 製品の取扱いについては、コネクタ取扱い 説明書(5013300000 PS A00,A01)を参照願います。 (0.12) 1.3 PLEASE REFER TO CRIMP SPECIFICATION (CS-501193-001). 0.28 A C 金型番号(番号無しの製品もあります) DIE NO.(THERE IS NON-MARK ITEMS) Z PLEASE REFER TO INSTRUCTION MANUAL (5013300000 PS A00,A01). B C TREAD MARK MXJ 5013340100 バラ状 LOOSE 5013340000 連鎖状 CHAIN 1.0μm MIN. VIEW Z めっき仕様:すずめっき オーダー番号 (リフロー処理,前めっき) ODER NO. PLATING:TIN PLATING (REFLOW TREATMENT,PRE-PLATED) B THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION MATERIAL りん青銅　すずめっき TIN PLATING DOCUMENT STATUS FORMAT: master-tb-prod-A3 REVISION: H DATE: 2018/01/18 10 P1 RELEASE DATE 9 2018/06/22 FINISH 　　　　　　　　　SEE NOTE WIRE RANGE 　　　　　　　　　AWG#28-32 INS. RANGE 　　　　　　　　　⌀0.4-0.8 08:13:47 8 7 6 DIMENSION UNITS SCALE mm 20:1 CURRENT REV DESC: REDRAWN AND REVISED GENERAL TOLERANCES (UNLESS SPECIFIED) PHOSPHOR BRONZE t=0.12 A B 端子形状 FORM 5 ANGULAR TOL ± 3.0 ° 4 PLACES ± 0.2 3 PLACES ± 0.2 2 PLACES ± 0.2 1 PLACE ± 0.2 0 PLACES ± 0.2 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 4 EC NO: 178320 DRWN: MOYAMA CHK'D: SAKIYAMA APPR: TKANEKO INITIAL REVISION: DRWN: KYAMADA02 APPR: TKANEKO THIRD ANGLE PROJECTION DRAWING 2018/06/21 2018/06/22 2018/06/22 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2017/10/05 2018/06/21 SERIES A3-SIZE 501334 3 PICO-CLASP 1.0 W/B CONN CRIMP REC TERM (TIN PLATING) 5013340000-SD MATERIAL NUMBER CUSTOMER SEE TABLE PSD 000 B SHEET NUMBER 1 OF 1 2 1 A
