502352-0200

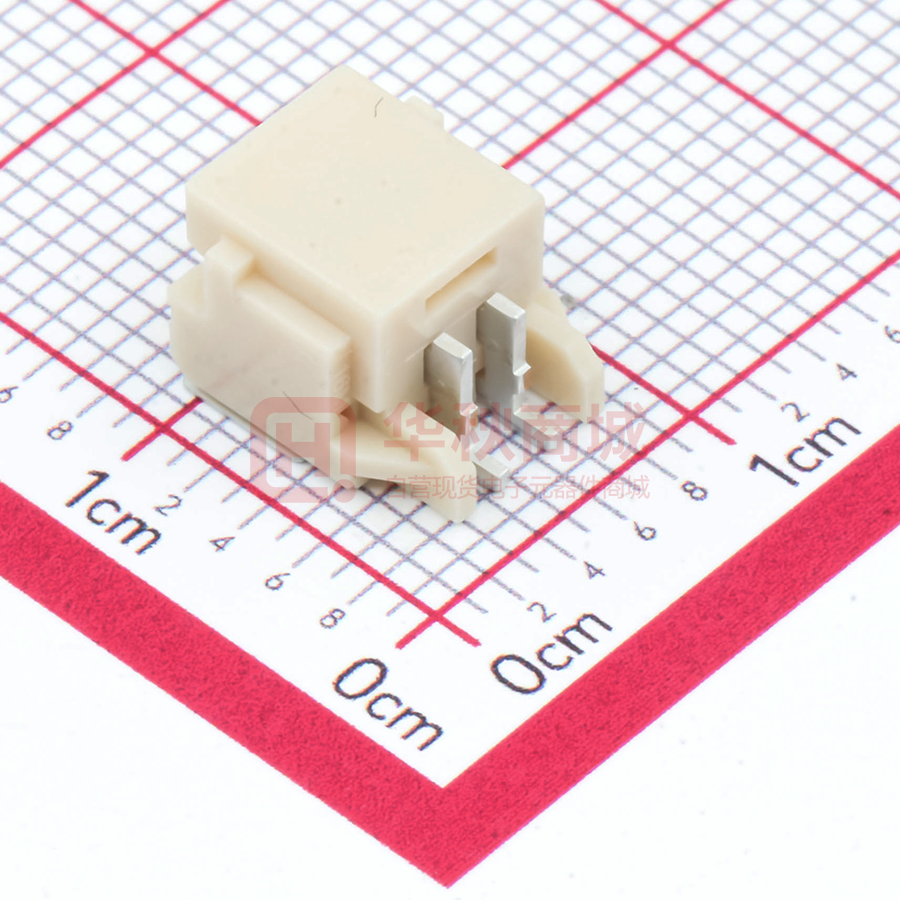

This document was generated on 10/18/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 5023520200 Active DuraClik Connector System DuraClik Wire-to-Board Header, Single Row, Right-Angle, 2 Circuits, Tin (Sn) Plating, Natural Documents: 3D Model Drawing (PDF) Product Specification PS-502351-001-001 (PDF) General Product Family Series Application Comments Packaging Specification PK-502352-002-JP-001 (PDF) Packaging Specification SPK-502352-001-001 (PDF) RoHS Certificate of Compliance (PDF) Overview Product Name UPC PCB Headers 502352 Signal, Wire-to-Board The Operating Temperature Range when used with DuraClik series 502351 is -40°C to +105°C. It is -40°C to 125°C when used with DuraClik ISL series 560123 or TPA series 505151. DuraClik Connector System DuraClik 800756731711 Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Glow-Wire Capable Keying to Mating Part Lock to Mating Part Mated Height Material - Metal Material - Plating Mating Material - Resin Net Weight Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface Polarized to Mating Part Polarized to PCB Stackable Temperature Range - Operating Termination Interface: Style No 2 2 Natural 30 No No Yes Yes 6.40mm Copper Alloy Tin over Nickel Polyamide 0.402/g 1 Right Angle No Yes Embossed Tape on Reel 2.00mm Yes Yes No -40° to +105°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 3.0A 125V Solder Process Data Duration at Max. Process Temperature (seconds) 004 Series image - Reference only EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Not Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Compliant Not Contained Search Parts in this Series 502352 Series Mates With DuraClik Crimp Housings 502351 , 560123 , 505151 Lead-freeProcess Capability Max. Cycles at Max. Process Temperature Process Temperature max. C REFLOW 001 255 Material Info Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing PK-502352-002-JP-001, SPK-502352-001-001 PS-502351-001-001 SD-502352-001-001, SD-502352-002-001 This document was generated on 10/18/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
