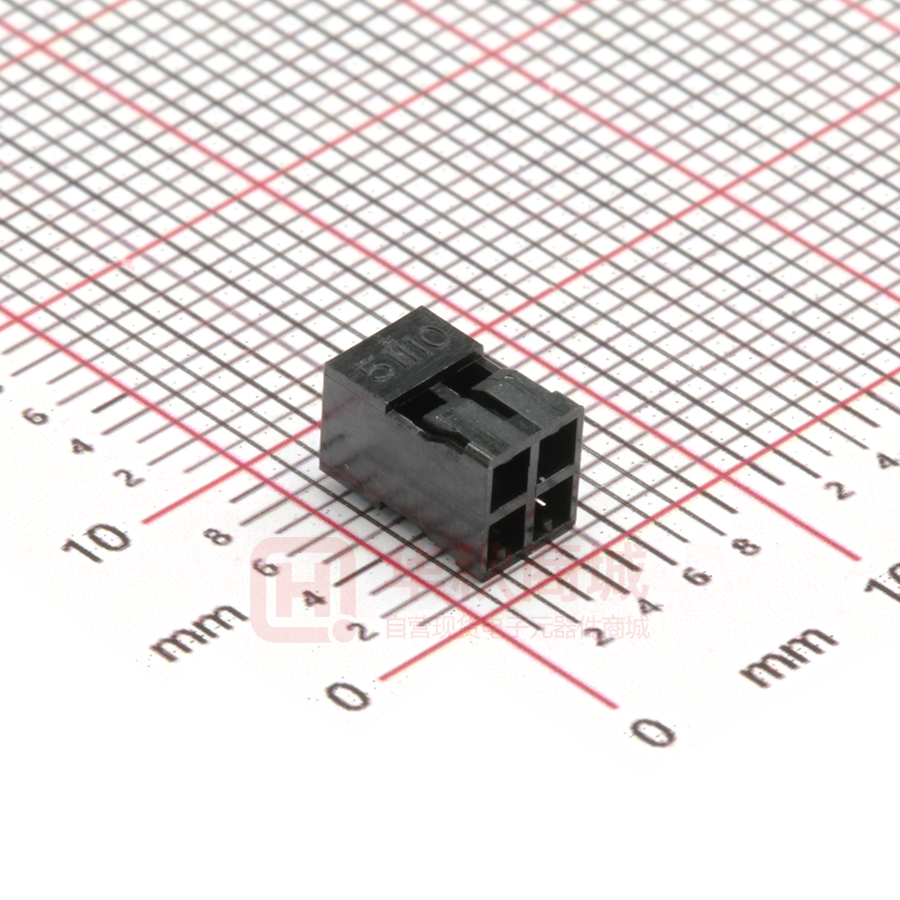

51110-0460

9 7 8 5 6 4 3 2 1 PART NUMBERS WITHOUT VOID CIRCUIT OPTION E 6 1ST CIRCUIT IDENTIFICATION 6 PART NUMBER CKT SIZE DIM X DIM Y 51110-0460 4 2.00 4.20 51110-0660 6 4.00 6.20 51110-0860 8 6.00 8.20 51110-1060 10 8.00 10.20 51110-1260 12 10.00 12.20 E LEGENDRAY FOR WITH OUT VOIDED CKT 7.00 -B- CKT. #1 D 51110 - XX60 2.00 CIRCUIT SIZE 4.20 ℄ 4.80 PART NUMBERS WITH VOID CIRCUIT OPTION CKT. #2 C ⌖ ⌀0.10 A B 2.00 (TYP) D VOIDED CKT PART NUMBER CKT SIZE DIM X DIM Y 51110-1261 51110-0460 4 2.00 4.20 C TYP. DIM X DIM Y -ANOTES : 1. MATERIAL : GLASS FILLED POLYESTER UL RATED 94V-0, COLOUR BLACK. 2. FOR ILLUSTRATION PURPOSES, 8CKT SIZE HOUSING IS AS SHOWN. 3. PARTS TO BE USED WITH CRIMP TERMINAL PART NUMBER: 50394-8***. 4. APPLICABLE WIRE RANGE : AWG # 24 - #30'" 5. WIRE INSULATION RANGE : DIAMETER 1.40mm MAXIMUM. B 6. B MSH LOGO, CAVITY ID AND 1ST CKT IDENTIFICATION TO BE LOCATED APPROXIMATELY AS SHOWN. THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION DIMENSION UNITS SCALE mm NTS CURRENT REV DESC: REDRAWN AND REVISED GENERAL TOLERANCES (UNLESS SPECIFIED) A MM 4 PLACES ± 3 PLACES ± 2 PLACES ± ± 0.2 ± 0 PLACES ± ± ANGULAR TOL DOCUMENT STATUS 9 P1 RELEASE DATE 2018/12/20 8 ± ± 1 PLACE FORMAT: Met-lega-master-tb-prod-A3 REVISION: D DATE: 2018/01/18 INCH ± ± 3.0 ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 03:15:14 7 6 5 4 EC NO: 608139 DRWN: RMV02 CHK'D: GJEEVANSURES APPR: ISHWARG INITIAL REVISION: DRWN: SEE APPR: THIRD ANGLE PROJECTION 3 2018/10/04 2018/12/19 2018/12/20 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 1995/05/22 SD-51110-XX60 MATERIAL NUMBER DRAWING SERIES A3-SIZE 51110 2 A 2MM GRID,WTB CONN. CRIMP RECEPT. HSG. SEE TABLE PSD 001 B SHEET NUMBER CUSTOMER GENERAL MARKET 1 1 OF 1
