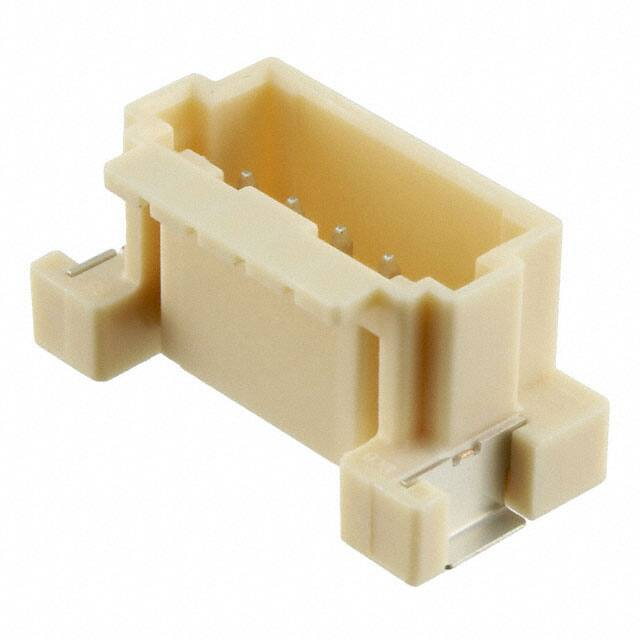

Molex’s DuraClik family of connectors was designed for on-board instrumentation applications such as steering wheels and shift levers that are subject to high vibration. Automotive customers required a connector system that provided more robust features than most standard 2.00mm pitch systems, and DuraClik is meeting these needs. This preliminary datasheet covers the planned addition of a new vertical version to the family. Based on market demand, the new vertical versions will be launched around July, 2012, in initial circuit sizes from two to eight, with other circuit sizes available based on customer requests. DuraClik was originally introduced in a right-angle version to support market requirements. The new vertical version is designed to provide more flexibility to meet various space constraint and harness installation needs. The new vertical version uses the same housing and terminals as the right-angle series. This provides easier sourcing, and also enables customers to set-up a mating configuration with a vertical header on one end and a right-angle header on the other. This makes it easier for operators in the assembly-line process by providing a visual mating polarization difference. PRELIMINARY DATASHEET DuraClikTM 2.00mm (.079”) Pitch Wireto-Board Connectors, Vertical, Single Row, SMT, with Anti-Vibration Features FEATURES AND BENEFITS Features Benefits • Wide solder tabs • Secure PCB retention for high-vibration applications • Audible “click” when mated • Added mating assurance • Secure inner-lock design • Provides space savings and latch protection versus outer-locking designs • Operating temperature up to 105 degrees C • Meets automotive passenger compartment temperature requirements • Enclosed contact design • Provides contact protection against dust and damage • Polarization features • Prevent mismating MARKETS AND APPLICATIONS • Automotive On-Board Instrumentation • High-vibration applications • Wiper/Blinker lever • Passenger compartment applications • Shift lever • Air conditioner • Navigation meters • Steering wheel switches Molex’s line of DuraClik connectors has expanded to include a new vertical version FEATURES AND BENEFITS PRELIMINARY DATASHEET Inner positive lock design provides space savings and latch protection The enclosed design of Molex’s DuraClik terminal provides protection against dust and damage DuraClikTM 2.00mm (.079”) Pitch Wireto-Board Connectors, Vertical, Single Row, SMT, with Anti-Vibration Features Wide ledge accommodates pick-and-place straight from embossed tape Large solder tabs provide superior hold-down force up to 100N (10kgf) to maintain secure PCB retention and mating contact even in high vibration applications www.molex.com/link/product/duraclik.html Order No. 987650-5852 Singapore/pdf/RS/MMC/2011.05 © 2011, Molex
