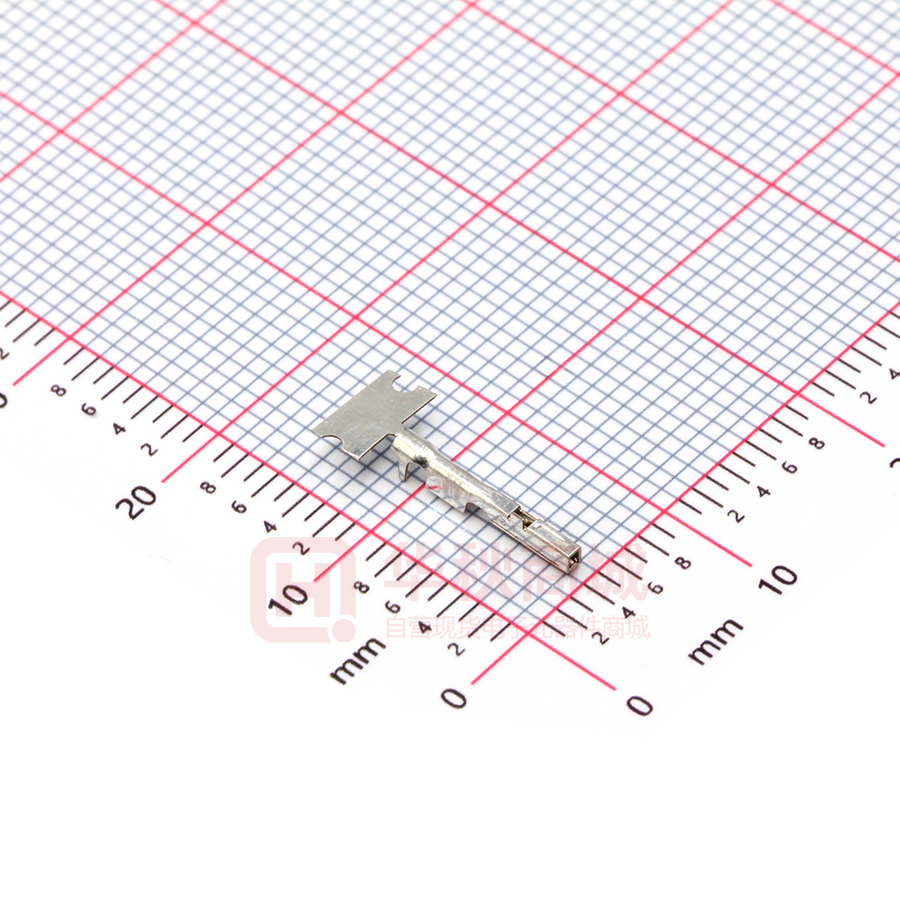

This document was generated on 11/12/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 5600230448 Active Overview: Description: Mini50 Connection Systems CTX50 Receptacle Terminal, Unsealed, Tin Plating, L-Grip, D-Wind, Left Payoff Documents: Drawing (PDF) Product Specification 5600230001-PS (PDF) Product Specification TS-560023-001-001 (PDF) Application Specification AS-560023-001-001 (PDF) Application Specification AS-560023-001-CH-001 (PDF) Application Specification AS-560023-001-FR-001 (PDF) Packaging Specification PK-31301-319 (PDF) RoHS Certificate of Compliance (PDF) Product Literature (PDF) Series image - Reference only EU ELV Compliant General Product Family Series Application Crimp Quality Equipment Overview Product Literature Order No Product Name UPC Crimp Terminals 560023 Power, Wire-to-Board Yes Mini50 Connection Systems 987650-5442 CTX50 889056029063 Physical Durability (mating cycles max) Gender Grip Code Material - Metal Material - Plating Mating Net Weight Packaging Type Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² 10 Female L Copper Alloy Tin 0.049/g Reel Crimp or Compression 1.10-1.40mm N/A 0.35 Electrical Current - Maximum per Contact Voltage - Maximum 4.0A 14V DC Solder Process Data Lead-freeProcess Capability N/A EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Search Parts in this Series 560023 Series Use With Mini50 Unsealed Single Row Receptacle 34791 , Mini50 Unsealed Dual Row Receptacle 34824 Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing Green Image Compliant Not Contained AS-560023-001-001, AS-560023-001-CH-001, AS-560023-001-FR-001 PK-31301-319 5600230001-PS, TS-560023-001-001 5600230001-000, SD-560023-002-000 This document was generated on 11/12/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 560023-0448 560023-0448 (Cut Strip) 560023-0448 (Loose Piece) 560023-0448 (Mouser Reel)
