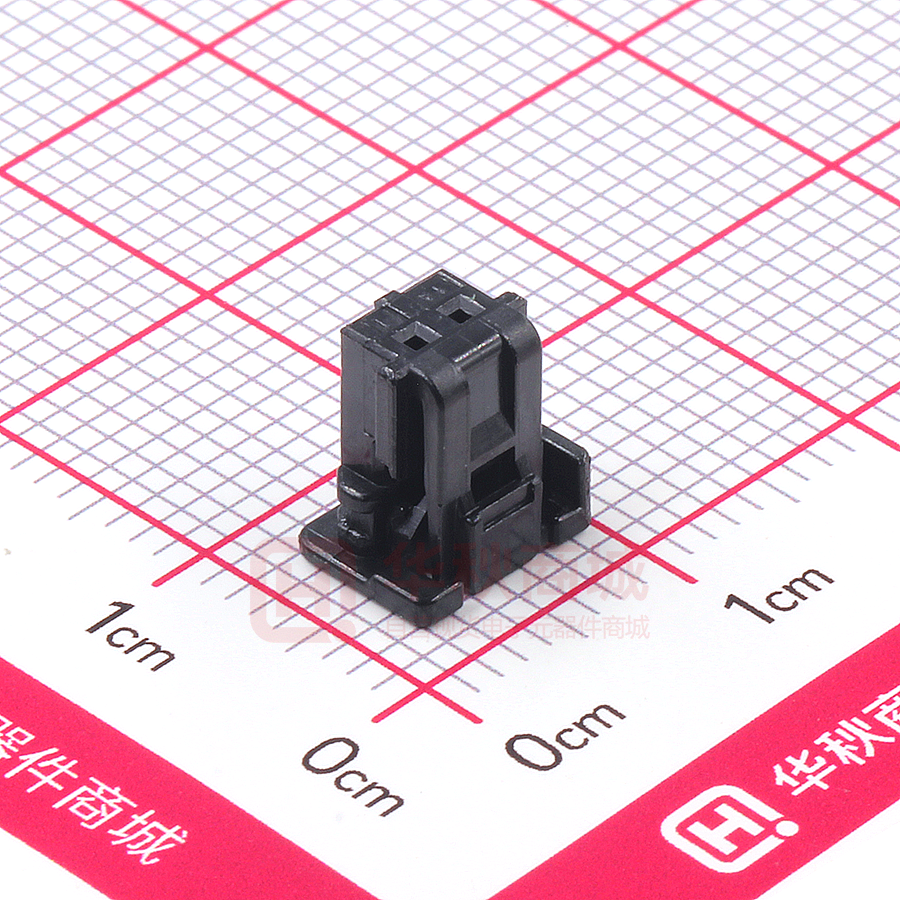

560123-0201

10 9 7 8 6 5 4 3 2 1 GENERAL TOLERANCE USED ON 10 MAX 30 MAX 50 MAX 70 MAX 100 MAX 120 MAX 250 MAX 250 OVER ANGLE ECCENT ±0.15 ±0.20 ±0.30 ±0.40 ±0.50 ±0.75 ±0.90 ±1.4 0.1 ±0.5˚ F F 8.5 8 E E ISO VIEW 6.1 4.7 D D �3.35� MATERIAL 6.2 2.14 CIRCUIT No. CAV. No. C C CIRCUIT No. DIE No. 2 (PITCH) 4.7 MATERIAL NUMBER B NOTES: 1. MATERIALS : POLYESTER (PBT), GLASS UNFILLED, UL94 V-0 2. MATE WITH : 502352, 560020 SERIES 3. APPLICABLE TERMINAL : 560124 SERIES 4. APPLICABLE ISL : 560125 SERIES 5. GENERAL TOLERANCE : SEE TABLE 6. EVL AND RoHS COMPLIANT 7. PRODUCT SPECIFICATION : PS-560123-00* 8. PACKING SPECIFICATION : PK-560123-001 SERIES No. A DOCUMENT STATUS FORMAT: master-tb-prod-A3 REVISION: J DATE: 2020/01/14 P1 RELEASE DATE 9 2021/07/05 8 7 6 5 MATERIAL NO. COLOR 560123-0200 5601230200 WHITE 560123-0201 5601230201 BLACK 560123-0202 5601230202 RED 560123-0204 5601230204 BLUE B FUNCTIONAL THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION SCALE SYMBOLS DIMENSION UNITS CURRENT REV DESC: = 0 = 0 = 0 mm 5:1 GENERAL TOLERANCES (UNLESS SPECIFIED) ANGULAR TOL ± 4 PLACES ± DIVISIONAL 3 PLACES SYMBOLS ± 2 PLACES ± 1 PLACE ± 0 PLACES ± ° DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS 01:53:59 ORDER NO. 4 NEW 2.0 PITCH W/B CONN. 0.5mm REC. 2WAY HSG DURACLIK SERIES EC NO: 668822 DRWN: SAKIM CHK'D: HIIJIMA APPR: HIIJIMA INITIAL REVISION: DRWN: YIBAEK APPR: SRTAK THIRD ANGLE PROJECTION 2021/07/01 2021/07/05 2021/07/05 PRODUCT CUSTOMER DRAWING DOC TYPE DOC PART REVISION DOCUMENT NUMBER 2014/07/03 2014/08/26 DRAWING SERIES A3-SIZE 560123 3 SD-560123-001 MATERIAL NUMBER PSD 001 CUSTOMER SEE TABLE 2 GENERAL MARKET C3 SHEET NUMBER 1 OF 1 1 A
