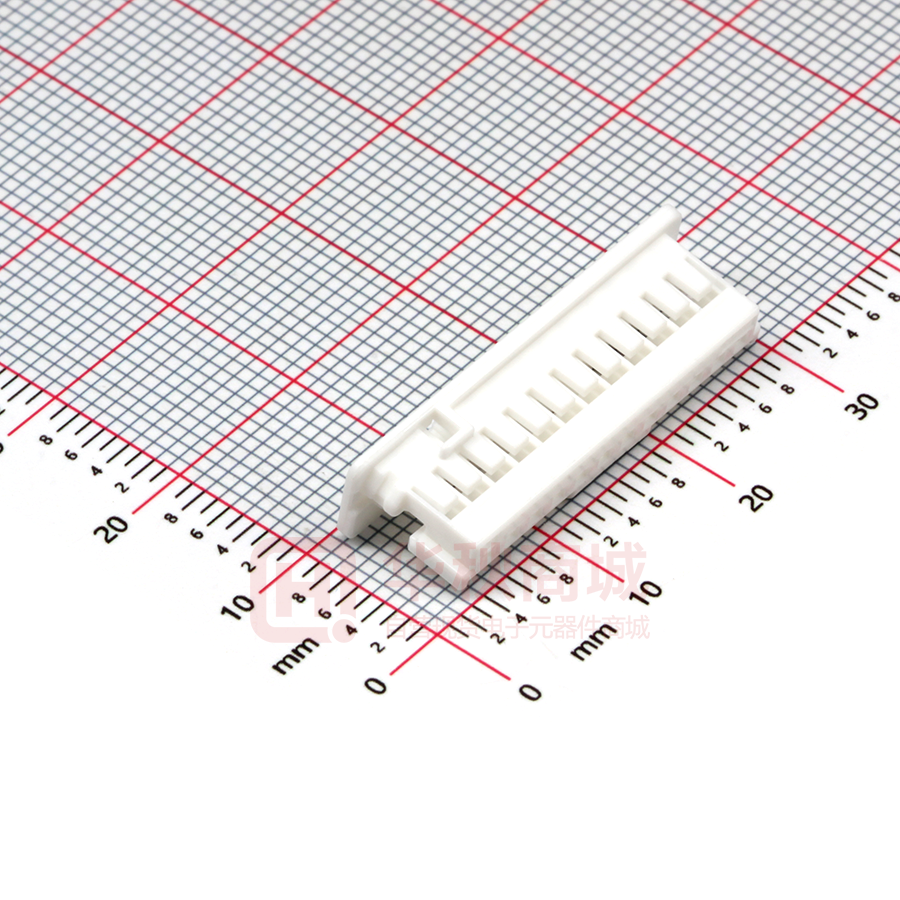

560123-1200

This document was generated on 07/06/2022 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: 5601231200 Active Overview: Description: DuraClik Connector System DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 12 Circuits Documents: Drawing (PDF) 3D Model (PDF) 3D Model Product Specification PS-560123-001-001 (PDF) Product Specification PS-560123-003-001 (PDF) Application Specification AS-560123-001-001 (PDF) Packaging Specification PK-560123-001-001 (PDF) Test Summary 5601230600-TS (PDF) Datasheet (PDF) RoHS Certificate of Compliance (PDF) Agency Certification UL E29179 General Product Family Series Application Overview Product Name UPC Crimp Housings 560123 Automotive, Signal, Wire-to-Board DuraClik Connector System DuraClik 889056359894 Physical Circuits (maximum) Color - Resin Gender Glow-Wire Capable Keying to Mating Part Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Panel Mount Pitch - Mating Interface Polarized to Mating Part Stackable Temperature Range - Operating 12 White Receptacle No None Yes PBT 0.662/g 1 Bag No 2.00mm Yes No -40° to +130°C EU ELV Compliant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2022)4187-DC (10 June 2022) Halogen-Free Status Not Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Compliant Not Contained Search Parts in this Series 560123 Series Mates With DuraClik Right-Angle Header 502352 DuraClik Vertical Header 560020 Use With DuraClik ISL Terminal 560124 DuraClik ISL Retainer 5601251200 Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing Test Summary Series image - Reference only AS-560123-001-001 PK-560123-001-001 PS-560123-001-001, PS-560123-003-001 SD-560123-007-001 5601230600-TS This document was generated on 07/06/2022 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
