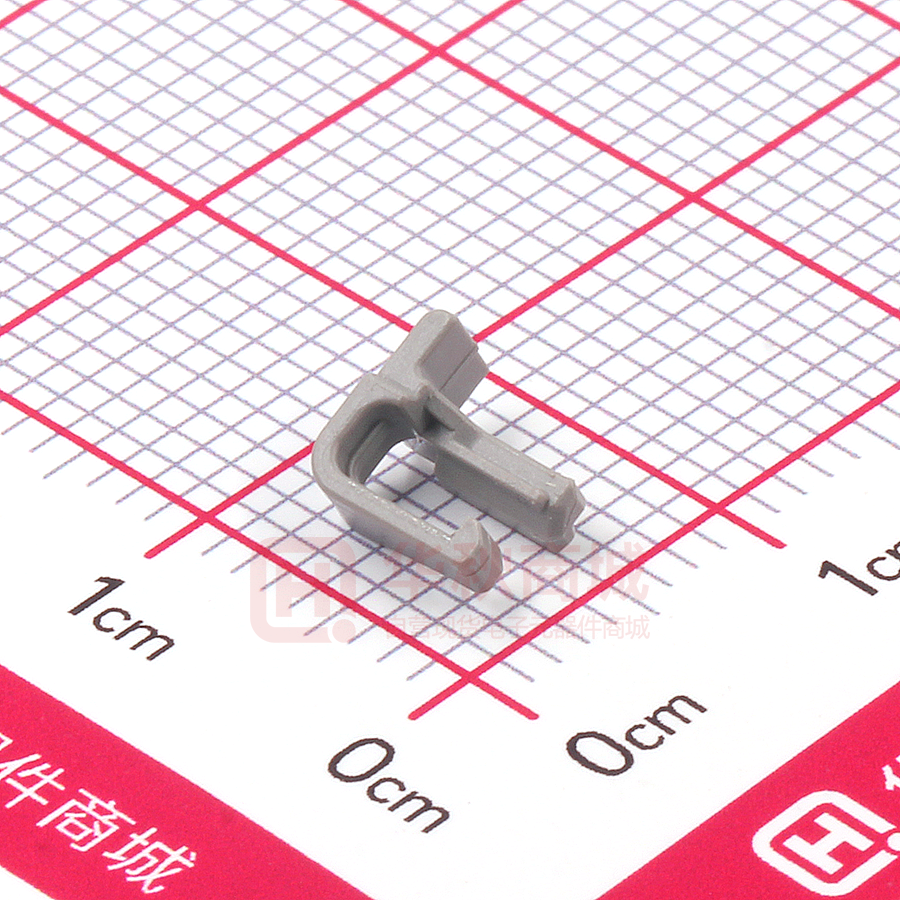

5601250200

This document was generated on 06/22/2022 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 5601250200 Active DuraClik Connector System DuraClik ISL Wire-to-Board Terminal Position Assurance (TPA) Retainer, 2 Circuits, Gray Documents: Drawing (PDF) 3D Model (PDF) 3D Model Product Specification PS-560123-001-001 (PDF) Product Specification PS-560123-003-001 (PDF) Application Specification AS-560123-001-001 (PDF) Packaging Specification PK-560125-001-001 (PDF) Datasheet (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only EU ELV Compliant General Product Family Series Application Component Type Overview Product Name UPC Accessories 560125 Automotive Terminal Position Assurance DuraClik Connector System DuraClik 887191705545 Physical Circuits (Loaded) Circuits (maximum) Color - Resin Lock to Mating Part Material - Resin Net Weight Number of Rows Packaging Type Polarized to Mating Part Temperature Range - Operating 2 2 Gray Yes PBT 0.051/g 1 Bag Yes -40° to +130°C Solder Process Data Lead-freeProcess Capability N/A Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing EU RoHS China RoHS Compliant REACH SVHC Not Contained Per D(2021)10043-DC (17 Jan 2022) Halogen-Free Status Not Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Compliant Not Contained Search Parts in this Series 560125 Series Use With DuraClik ISL Terminal Housing 5601230200 , 5601230201 , 5601230202 , 5601230204 AS-560123-001-001 PK-560125-001-001 PS-560123-001-001, PS-560123-003-001 SD-560125-001-001 This document was generated on 06/22/2022 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
