0670687041
Active
USB Products and Solutions

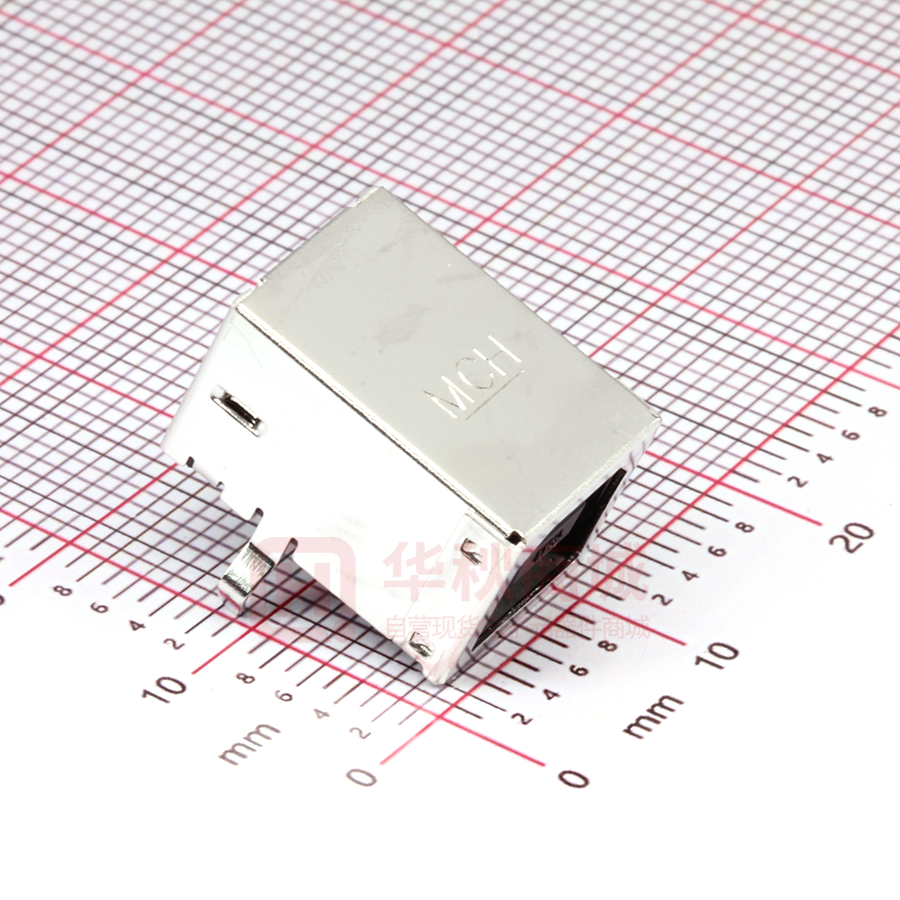

Universal Serial Bus (USB) Shielded I/O Type B Receptacle, Right-Angle with Kinked
Solder Tabs, Color Black, 0.76µm Gold (Au) Plating, Tray Pack, Lead-Free
Documents:
3D Model
3D Model (PDF)
Drawing (PDF)
Product Specification PS-67998-0000-001 (PDF)
Packaging Specification PK-67068-001-001 (PDF)
Test Summary TS-67068-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Type
UPC
I/O Connectors
67068
Wire-to-Board
Single
Receptacle
USB Products and Solutions
USB 2.0
B
822348723119
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Flammability
Gender
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire Size AWG
N/A
4
4
94V-0
Female
Yes
Gold
Tin
3.124/g
2
Right Angle
2.80mm
Yes
Yes
1.60mm
Tray
No
2.50mm
2.50mm
0.762µm
Yes
Yes
1
Yes
0° to +50°C
Through Hole
No
N/A
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per D(2020)9139-DC (19
Jan 2021)
Halogen-Free
Status
Not Low-Halogen
For more information, please visit Contact US
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
67068 Series
Mates With
USB Type B Plug
Electrical
Current - Maximum per Contact
Shield Type
Shielded
Voltage - Maximum
1.5A
Full Shield
Yes
30V (RMS)
Solder Process Data
Lead-freeProcess Capability
Process Temperature max. C
WAVE
260
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-67068-001-001
PS-67998-0000-001
SD-67068-003
TS-67068-001-001
