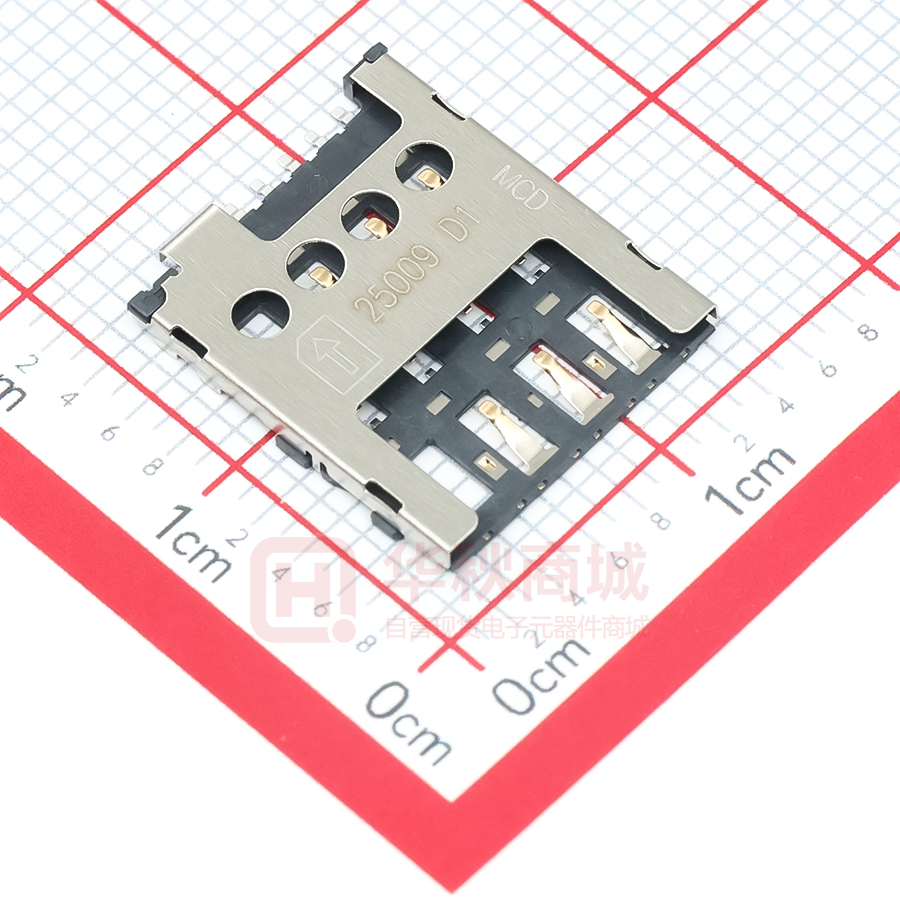

Optimize space savings with highly compact and reliable hinged and push-pull style micro-SIM card sockets for ultra-slim mobile devices Molex has added a 1.40mm height, hinged socket (series 78800) to its array of push-pull style micro-SIM card interconnects (series 78723, 78727, 78646). This low-profile socket is ideal for ultraslim smartphones with limited vertical space between SIM socket and the phone battery-cover. Maximizing space savings and facilitating easy, top-loading of SIM card, the socket is the designer’s choice for mid-board layouts that preclude the use of front- or side-entry style sockets. Measuring only 16.96 (L) by 13.69 (W) by 1.40mm (H), the socket is more compact than competing equivalents. The socket’s U-shaped metal hinge provides high pulling force between lid and shell to ensure robust card retention, electrical contact and reliability. A uniquely designed locking mechanism allows a partial tilt of the lid into lock position; or full opening at 180-degrees to the horizontal, for easy removal and placement of SIM card. Molex’s push-pull style micro-SIM card sockets come with anti-shorting, card polarization and other features for high user- and electrical reliability. Integral solder tabs on the socket shells provide robust PCB hold-down during soldering. Insert-molded LCP housings maintain design and dimension precisions while sustaining high-temperature operations. micro-SIM Card Sockets, 6-Circuit, Halogen-free, Lead-free 1.40mm Hinged and 1.35, 1.40 and 1.45mm Height Push-Pull Styles Hinged style 78800 1.40mm Height, without detect switch Push-pull style 78723 1.35mm Height, without detect switch 78727 1.40mm Height, with detect switch 78646 1.45mm Height, without detect switch The socket terminals of this family have rounded profiles to facilitate smooth card insertion and withdrawal. Aligned in reverse direction, the terminals prevent contact stubbing and allow gradual ‘lead-in’ of the SIM card when inserted. This unique terminal geometry ensures high contact integrity and connectivity when mated. Molex’s hinged and push-pull style sockets come in standard 6-circuit configuration. Customers can request for 8-circuit push-pull style sockets if needed. Parts are shipped in tape-on-reel packaging. All Molex micro-SIM sockets featured in this release are halogen-free, ELV- and RoHS-compliant for environmental sustainability. Hinged and Push-Pull Style Micro-SIM Card Sockets, Halogen-free, Lead-free For more information, visit our website at: www.molex.com/link/micro-sim.html Features and Benefits Ultra-low-profile height of 1.35mm (78723), 1.40mm (78727 and 78800) Ideal for ultra-slim smart phone applications Card polarization features (all series) Ensure correct card orientation when used with socket Top-loading style socket allowing 180-degree opening of lid (78800) Eliminates any possibility of terminal crush as the SIM card is mounted top-down Anti-short feature using raised housing walls of the socket (78723, 78727) and kinked shell design (78646) Prevents shorting of any exposed edge of (improperly pared) SIM card contact pads with the surrounding metal shell Integral metal-shell spring tab (78723) Ensures high normal force (0.30N) and good electrical contact with inserted micro-SIM card Detect Switch with First-Mate-Last-Break capability (78727) Enables detection of micro-SIM card when inserted Specifications Reference Information Packaging: Embossed Tape on Reel Use With: micro-SIM card Designed In: mm RoHS: Yes Halogen Free: Yes Glow Wire Compliant: No Electrical Voltage (max.): 5V DC (78723, 78800), 10V DC (78727), 15V DC (78646) Current (max.): 0.5A per contact Low Level Contact Resistance (max.): 100 milliohms Dielectric Withstanding Voltage: 500 VAC Insulation Resistance (min.): 1000 megaohms Mechanical Contact Normal Force (min.): 0.30N (78723 and 78727) 0.20N at min. deflection (78646) 0.20N at 0.32mm working height (78800) Lock/Unlock Force (with and without card): 15N max./0.5N min. respectively Contact Normal Force : 0.20N(min.); 1.30N(max.) (78800) Card Insertion Force (max.): 8N (78723), 10N (78727) Card Withdrawal Force (min.): 0.7N (78723), 0.5N (78727) Durability (max.): 500 cycles at 100 milliohms (78723 and 78727) 1500 cycles at 100 milliohms (78646) 5,000 cycles at 100 milliohms L  LCR and 0.20N Contact Normal Force (78800) 500 cycles at 100 milliohms LLCR w  ith 15N (max.) Locking Force and 0.50N (min.) Unlocking Force (78800) Physical Housing: LCP (glass-filled), UL94V-0, Black Contact: Phosphor Bronze (78800) Copper Alloy (others) Metal Shell: Stainless Steel (no plating for Series 78800) micro-SIM Card Sockets, 6-Circuit, Halogen-free, Lead-free 1.40mm Hinged and 1.35, 1.40 and 1.45mm Height Push-Pull Styles Plating: Contact Area — 0.38μm (15μ”) Gold (Au) Solder Tail — 1.27μm (50μ”) Matte Tin (Sn) Underplating — 1.27μm (50μ”) Nickel (Ni) Shell Solder Tab: 1.27μm (50μ”) Matte Tin (Sn) over 1.27μm (50μ”) Nickel (Ni) underplate Detect Contact: 0.127μm (5μ”) Gold (Au) over 1.27μm (50μ”) Nickel (Ni) underplate (78727) Detect Spring: 0.127μm (5μ”) Gold (Au) over 1.27μm (50μ”) Nickel (Ni) underplate (78727) Operating Temperature: -40 to +85°C (78723 and 78727) -30 to +85°C (78646 and 78800) Product Family 1.40mm height push-pull style micro-SIM card socket with detect switch (Series 78727) 1.40mm height, hinged style micro-SIM card socket (Series 78800) 1.35mm height, push-pull style micro-SIM card socket (Series 78723) 1.45mm height push-pull style micro-SIM card socket (Series 78646) Product Features – Hinge Style Locking A “U” shape metal hinge provides high pulling force between the lid and shell body, preventing the lid from being pulled out accidentally Socket hinges (highlight) micro-SIM Card Sockets, 6-Circuit, Halogen-free, Lead-free 1.40mm Hinged and 1.35, 1.40 and 1.45mm Height Push-Pull Styles Backward rotation of socket hinge at housing frame keyhole enabling full 180-degree lid tilt The tip of the hinge now faces outwards to allow lid to open partially or fully (Remark: Product photo on datasheet cover page shows partially opened lid in ‘lock’ position) Hinge is locked Hinge is unlocked Hinge rotates backwards to open lid Hinge features of Series 78800 micro-SIM card socket Anti-Shorting Features of Series 78723, 78727, 78646 Push-Pull Style Micro-SIM Sockets Series 78723 (left) and 78727 (right) micro-SIM card socket use raised housing-wall as anti-short feature Series 78646 socket uses a kinked metal shell design as anti-short feature Wide Finger Area (Yellow Boxes) and Card Polarization Features of Series 78723, 78727 and 78646 Push-Pull Micro-SIM Card Socket micro-SIM Card Sockets, 6-Circuit, Halogen-free, Lead-free 1.40mm Hinged and 1.35, 1.40 and 1.45mm Height Push-Pull Styles Chamfered edge icon to guide user in correct micro-SIM card insertion Series 78646 micro-SIM card socket Two angled-shell card-polarization features act as stoppers to ensure correct fit of micro-SIM card to socket Series 78723 micro-SIM card socket Series 78727 socket uses a cardorientation-spring to block a wrongly oriented (and inserted) micro-SIM card mid-way to prevent damage to socket Series 78727 micro-SIM card socket Other Product Features of 78723 and 78727 Micro-SIM Card Socket Spring tab feature Metal shell of socket Socket terminal Socket housing With Spring Tab Spring tab maximum working distance Metal shell Space for Spring Tab to press micro-SIM card against the contacts below it Terminal micro-SIM card Reduced terminal working distance Socket housing By incorporating spring tabs, terminals of Series 78723 socket can achieve a 0.30N minimum normal force for improved card-to-socket (electrical) contact Series 78727 detect switch for First-Mate-Last-Break capability micro-SIM Card Sockets, 6-Circuit, Halogen-free, Lead-free 1.40mm Hinged and 1.35, 1.40 and 1.45mm Height Push-Pull Styles Markets and Applications Consumer – Mobile phones – Ultra-slim smart phones – Tablet PCs – Mobile *Wi-Fi devices – **GSM/UMTS modems – PC cards GSM / UMTS modems – Wireless LAN cards Mobile Wi-Fi devices Tablet PCs, mobile and smart phones Ordering Information Order No. Profile Height 78646-3001 1.45mm 78723-1001 1.35mm 78727-0001 78800-0001 Detect Switch Without With 1.40mm Circuits 6 (Please contact Global Product Manager for 8-circuit version enquiries) Without *Wi-Fi is a registered trademark of the Wi-Fi Alliance **GSM/UMTS - Global System for Mobile Communications / Universal Mobile Telecommunications System www.molex.com/link/micro-sim.html Order No. 987650-8853 Printed in USA/KC/2013.05 ©2013 Molex
