50133-40000

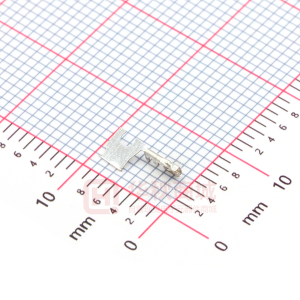

This document was generated on 05/24/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 5013340000 Active picoclasp 1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Crimp Terminal, 28-32 AWG, Leadfree, Tin Plating, Reel Documents: 3D Model Drawing (PDF) Product Specification PS-501331-001 (PDF) Product Specification PS-501940-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Crimp Quality Equipment Overview Product Name Crimp Terminals 501334 Yes picoclasp Pico-Clasp™ EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Receptacle Phosphor Bronze Tin Tin Reel 40.00 1.000 40.00 1.00 Crimp or Compression 0.80mm (.031") max. 28, 30, 32 N/A Material Info Reference - Drawing Numbers Packaging Specification Product Specification SPK-501334-001 PS-501331-001, PS-501940-001, RPS-501331-001, RPS-501331-002, RPS-501331-003, RPS-501331-005, RPS-501331-006, RPS-501331-007, RPS-501568-002, RPS-501940-001, RPS-501940-002, RPS-501940-003, RPS-501940-004 SD-501334-001 Search Parts in this Series 501334Series Mates With 501331 PCB Header Use With 501330 Crimp Housing Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Fine Adjust™ 0639019400 Applicator for 1.00mm (.039") Pitch Wire-to-Board Crimp Terminal Hand Crimp Tool 0638191500 for 1.00mm (.039") Sales Drawing Pico-Clasp™ Wireto-Board Crimp Terminal, 28-32 AWG T2 Terminator Die 0638583000 Japan Description Product # Applicator for M211A 5780163000 Bench Press, 28-32 AWG, for 501193 and 501334 Crimp Terminal Hand Extraction Tool 5780166000 This document was generated on 05/24/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
