502352-0200

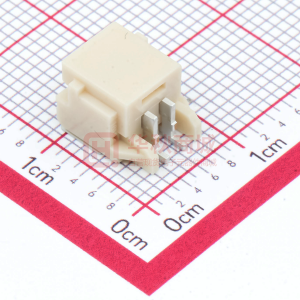

This document was generated on 04/07/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Description: 5023520200 Active 2.00mm (.079") Pitch DuraClik™ Wire-to-Board Header, Single Row, Right Angle, 2 Circuits Documents: 3D Model Drawing (PDF) Product Specification PS-502351-001 (PDF) RoHS Certificate of Compliance (PDF) Series PCB Headers 502352 Wire-to-Board DuraClik™ image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Not Reviewed Halogen-Free Status Not Reviewed Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Application Product Name Physical Breakaway Circuits (Loaded) Color - Resin Durability (mating cycles max) First Mate / Last Break Glow-Wire Compliant Keying to Mating Part Lock to Mating Part Mated Height (in) Mated Height (mm) Material - Metal Material - Plating Mating Material - Plating Termination Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Polarized to Mating Part Polarized to PCB Stackable Temperature Range - Operating Termination Interface: Style No 2 Natural 30 No No Yes Yes 0.252 In 6.40 mm Copper Alloy Tin Tin 1 Right Angle No Yes Embossed Tape on Reel 0.079 In 2.00 mm Yes Yes No -40°C to +105°C Surface Mount Search Parts in this Series 502352Series Mates With 502351 Crimp Housing. 50212 , 50372 Crimp Terminal Electrical Current - Maximum per Contact Voltage - Maximum 3A 125V Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-502351-001, RPS-502351-001 SD-502352-001, SD-502352-002 This document was generated on 04/07/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
