502381-0000

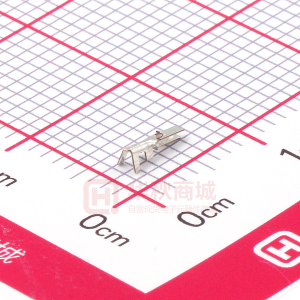

This document was generated on 06/07/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 5023810000 Active clikmate_wiretoboard_connectors 1.25mm (.049") Pitch CLIK-Mate™ Wire-to-Board Crimp Terminal, Reel Documents: Application Specification (PDF) Drawing (PDF) Product Specification PS-502382-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only Crimp Terminals 502381 Yes Yes clikmate_wiretoboard_connectors CLIK-Mate™ EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Crimp Quality Equipment MolexKits Overview Product Name Physical Durability (mating cycles max) Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Wire Insulation Diameter Wire Size AWG Wire Size mm² 30 Plug Copper Alloy Tin Tin Reel 0.8-1.0mm 26, 28 N/A Electrical Current - Maximum per Contact Voltage - Maximum 1A 50V AC (RMS)/DC Search Parts in this Series 502381Series Mates With 502382 PCB Receptacle, 502386 PCB Receptacle Use With 502380 Crimp Housing Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Hand Tool for 0638194400 1.25mm (.049") CLIK-Mate™ Wireto-Board Crimp Terminal, 26-28 AWG Material Info Reference - Drawing Numbers Packaging Specification Product Specification SPK-502381-001 PS-502382-001, RPS-502382-003, RPS-502382-005, RPS-502382-006, RPS-502382-008, RPS-502382-010, RPS-502382-011, RPS-502382-012, RPS-502382-013 SD-502381-001 Sales Drawing Fine Adjust 0639006600 Applicator for 1.25mm (.049") Pitch Wire-to-Board Connector Dual Plug Terminals, 26-28 AWG T2 Terminator 0639106600 Tooling Die for 1.25mm (.049") Pitch Wire-to-Board Connector Dual Plug Terminals, 26-28 AWG Japan Description Product # Applicator for M211A 5780343000 Bench Press, 26-28 AWG, for 501930 Crimp Terminal This document was generated on 06/07/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
