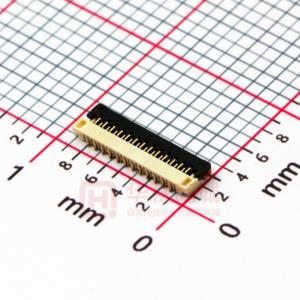

502790-3091

This document was generated on 04/19/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Description: 5027903091 Active 0.50mm (.020") Pitch FPC Connector, ZIF, Easy-On™, Double Bottom Contact, 30 Circuits Documents: 3D Model Drawing (PDF) Product Specification PS-502790-001 (PDF) RoHS Certificate of Compliance (PDF) Series FFC/FPC Connectors 502790 Easy-On™ image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Not Reviewed Halogen-Free Status Not Reviewed Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Product Name Physical Circuits (Loaded) Contact Position Durability (mating cycles max) Entry Angle Mated Height (in) Mated Height (mm) Material - Metal Material - Plating Mating Material - Plating Termination Number of Rows Orientation PCB Retention Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Polarized to PCB Stackable Temperature Range - Operating Termination Interface: Style Wire/Cable Type 30 Bottom 20 90° Angle 0.098 In 2.50 mm Phosphor Bronze Gold Gold 1 Right Angle Yes Embossed Tape on Reel 0.020 In 0.50 mm Yes No -20°C to +85°C Surface Mount FPC only Search Parts in this Series 502790Series Electrical Current - Maximum per Contact Voltage - Maximum 0.5A 50V Material Info Reference - Drawing Numbers Product Specification PS-502790-001, RPS-502790-001, RPS-502790-005, RPS-502790-006, RPS-502790-007, RPS-502790-009, RPS-502790-010, RPS-502790-011 SD-502790-001, SD-502790-002 Sales Drawing This document was generated on 04/19/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
