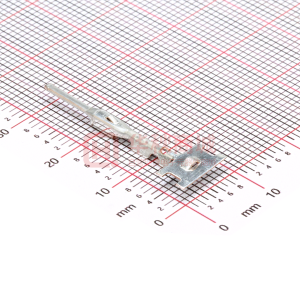

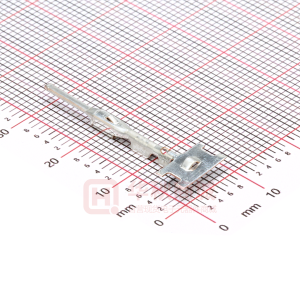

33000-0003

This document was generated on 05/27/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0330000003 Active mx150_sealed_connector_system MX150™ Male Terminal, Tin (Sn) Plating, 22 AWG, Right Reel Payoff, Contact Material Thickness 0.30mm (.012") Documents: Drawing (PDF) RoHS Certificate of Compliance (PDF) Series Crimp Terminals 33000 Right Reel Payoff Yes mx150_sealed_connector_system MX150™ image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Comments Crimp Quality Equipment Overview Product Name Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Male High Performance Alloy (HPA) Tin Tin Reel 20 0.5 20 0.5 Crimp or Compression 2.60mm (.102") max. 22 0.35, 0.50 Electrical Current - Maximum per Contact Voltage - Maximum 22A 250V Search Parts in this Series 33000Series Use With 33482 Dual Row Housing, 33481 Single Row Housing, 33486 Hybrid Housing Material Info Reference - Drawing Numbers Sales Drawing SD-33000-001 Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Hand Crimp Tool, 0638112600 18-22AWG This document was generated on 05/27/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
