35747-0210

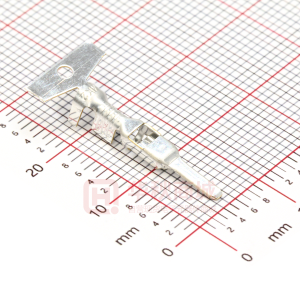

This document was generated on 05/27/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0357470210 Active versablade Crimp Terminal 35747, 16-18 AWG Documents: Drawing (PDF) Product Specification PS-35150-001 (PDF) Product Specification PS-35180-002 (PDF) Product Specification PS-35182-003 (PDF) Product Specification PS-35524-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only Crimp Terminals 35747 Yes versablade VersaBlade™ EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Crimp Quality Equipment Overview Product Name Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Male Brass Tin Tin Reel 32.00 0.800 32.00 0.80 Crimp or Compression 3.40mm (.134") max. 16, 18 N/A Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-35150-001, PS-35180-002, PS-35182-003, PS-35524-001 SD-35747-001 Search Parts in this Series 35747Series Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # T2 Terminator Die 0638529100 FineAdjust™ 0638629100 Applicator This document was generated on 05/27/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
