43030-0006

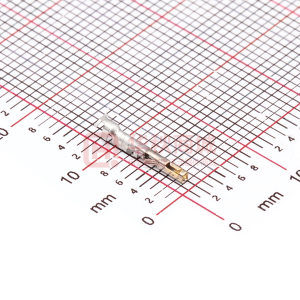

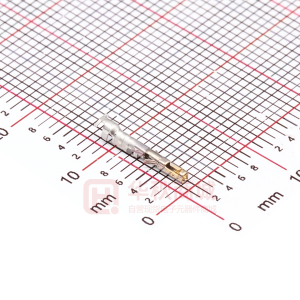

This document was generated on 05/27/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0430300006 Active microfit_30 Micro-Fit 3.0™ Crimp Terminal, Female, with Select Gold (Au) Plated Tin/Brass Alloy Contact, 26-30 AWG, Reel Documents: Drawing (PDF) Product Specification PS-43045 (PDF) RoHS Certificate of Compliance (PDF) Series General Product Family Series Crimp Quality Equipment Overview Product Literature Order No Product Name Crimp Terminals 43030 Yes microfit_30 USA-106 Micro-Fit 3.0™ image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Phosphor Bronze Gold Tin Reel 30 0.76 100 2.5 Crimp or Compression 1.27mm (.050") max. 26, 28, 30 N/A Material Info Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing Test Summary PK-43030-001 PS-43045, RPS-43045-003, RPS-43045-004 SD-43030-**** TS-43045-002 Search Parts in this Series 43030Series Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Insertion Tool for 0638120800 Micro-Fit 3.0™ Crimp Terminal FineAdjust™ 0639001600 Applicator, Use with Small Wire Insulation Diameter FineAdjust™ 0639004400 Applicator for MicroFit™ Crimp Terminal, 26-30 AWG T2 Terminator 0639104400 Tooling Die for Micro-Fit 3.0™ Crimp Terminal, 26-30 AWG Hand Crimp Tool 0638190000 Extraction Tool 0011030043 Japan Description Product # Applicator for M211A 0572983000 Bench Press, 20-30 AWG, for 43030 Crimp Terminal This document was generated on 05/27/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
