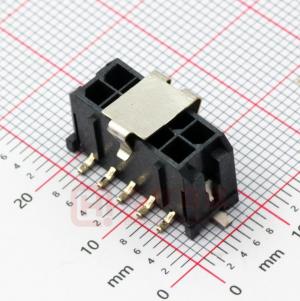

43045-1018

厂商：
MOLEX5
封装：
描述：
43045-1018 - 3.00mm (.118") Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Vertical, with Sol...

数据手册：

下载43045-1018.pdf

立即购买

详情介绍
数据手册
价格&库存

43045-1018 数据手册

This document was generated on 05/24/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0430451018 Active microfit_30 3.00mm (.118") Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Vertical, with Solder Tab, 10 Circuits, Tin (Sn) Plating, Glow Wire Compatible Documents: 3D Model Drawing (PDF) Product Specification PS-43045 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only LR19980 R72081037 E29179 EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Agency Certification CSA TUV UL General Product Family Series Application Comments Overview Product Literature Order No Product Name PCB Headers 43045 Wire-to-Board Glow Wire Equivalent Part Number 430451018. High Temperature, Square Pin, Solder Type microfit_30 USA-106 Micro-Fit 3.0™ Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) Flammability Glow-Wire Compliant Mated Height (in) Mated Height (mm) Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Number of Rows Orientation PCB Locator PCB Retention PCB Thickness Recommended (in) PCB Thickness Recommended (mm) Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) No 10 10 Black 30 94V-0 Yes 0.680 In 17.27 mm Brass Tin Tin High Temperature Thermoplastic 2 Vertical Yes Yes 0.062 In 1.60 mm Embossed Tape on Reel 0.118 In 3.00 mm 35 0.88 35 0.88 Yes Fully No N/A Search Parts in this Series 43045Series Mates With 43025 Temperature Range - Operating Termination Interface: Style -40°C to +105°C Surface Mount Electrical Current - Maximum per Contact Voltage - Maximum 5A 250V Solder Process Data Duration at Max. Process Temperature (seconds) Lead-free Process Capability Max. Cycles at Max. Process Temperature Process Temperature max. C 30 Reflow Capable (SMT only) 3 260 Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing Test Summary AS-43555-001 PK-70873-05** PS-43045, RPS-43045-003, RPS-43045-004 SD-43045-007 TS-43045-001 This document was generated on 05/24/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

下载 PDF

43045-1018

1. 物料型号： - 型号：0430451018 - 系列：Micro-Fit 3.0™ - 状态：Active（活跃）

2. 器件简介： - 描述：3.00mm 8 Pin 单排、垂直、10电路，锡（Sn）镀层，波峰焊兼容 - 产品家族：PCB Headers（PCB插座） - 系列：43045 - 应用：Wire-to-Board（线对板） - 概述：高温、方端子、焊接类型Micro-Fit™ 30

3. 引脚分配： - 电路（已加载）：10 - 电路（最大）：10 - 排列：双排垂直

4. 参数特性： - 颜色 - 树脂：黑色 - 耐用性（最大插拔次数）：30 - 阻燃性：94V-0 - 波峰焊兼容：是 - 焊接材料：锡 - 材料 - 金属：黄铜 - 材料 - 树脂：高温热塑性塑料 - 行数：2 - 方向：垂直 - PCB定位：是 - PCB保持：是 - PCB厚度推荐（英寸）：0.062 - PCB厚度推荐（毫米）：1.60mm - 间距 - 配合接口（英寸）：0.118 - 间距 - 配合接口（毫米）：3.00 mm - 镀层最小：配合（微英寸）：35 - 镀层最小：配合（微米）：0.88 - 镀层最小：终止（微英寸）：35 - 镀层最小：终止（微米）：0.88 - 极化到PCB：是 - 护套：全护套 - 可堆叠：否 - 表面贴装兼容（SMC）：不适用

5. 功能详解： - 与Micro-Fit (3.0) 插座系列43025配合使用 - 电气：最大电流每接触5A，最大电压250V - 焊接过程数据：无铅回流能力（SMT仅）260°C，最大周期数3

6. 应用信息： - 温度范围 - 操作：-40°C至+105°C - 表面贴装：华强PCB和华强芯城提供相关服务

7. 封装信息： - 包装类型：压花胶带卷装 - 封装：双排垂直SMT
