46235-5002

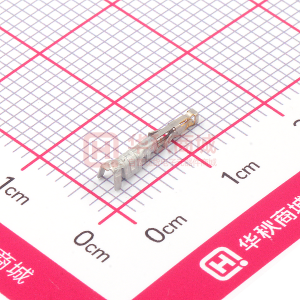

This document was generated on 05/17/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0462355002 Active Micro-Fit, 3.0™ Micro-Fit 3.0™ High Mating Cycle, Reduced Mating Force, Crimp Terminal, Female, with .0.76µm (30µ") Selective Gold (Au) over Nickel (Ni), 20-24 AWG, with Lubricant Documents: Drawing (PDF) Product Specification PS-46235-001 (PDF) RoHS Certificate of Compliance (PDF) Series General Product Family Series Comments Crimp Quality Equipment Overview Product Name Crimp Terminals 46235 90% increase in mating cycles (250 cycles) and up to 50% reduction in mating force Yes Micro-Fit, 3.0™ Micro-Fit 3.0™ image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Not Reviewed Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Physical Durability (mating cycles max) Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² 250 Female Copper-Zinc-Tin Gold Nickel Reel 0.76 30 50 1.27 Crimp or Compression 1.85mm (.073") max. 20, 22, 24 N/A Search Parts in this Series 46235Series Use With Micro-Fit 3.0™ Receptacle Housing 43025 , 43645 , 44133 Electrical Voltage - Maximum 600V Material Info Reference - Drawing Numbers Packaging Specification Product Specification Sales Drawing Test Summary PK-46235-001 PS-46235-001 SD-46235-001 TS-46235-001, TS-46235-501 This document was generated on 05/17/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
