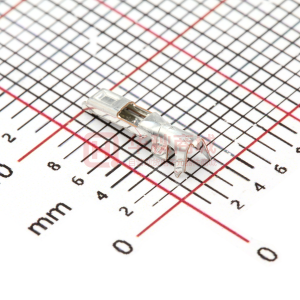

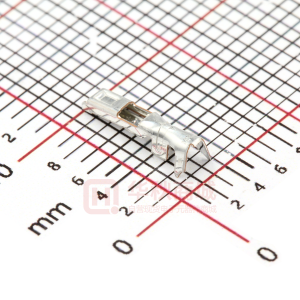

This document was generated on 06/01/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0501488000 Active splash_proof Splash Proof Crimp Terminal 50148, Reel Documents: 3D Model Drawing (PDF) Product Specification PS-52213-001 (PDF) Product Specification PS-52213-002 (PDF) RoHS Certificate of Compliance (PDF) image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Series General Product Family Series Crimp Quality Equipment Overview Product Name Crimp Terminals 50148 Yes splash_proof Splash Proof Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Phosphor Bronze Tin Tin Reel Crimp or Compression 1.40-1.70mm (.055-.067") 20, 22 N/A Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-52213-001, PS-52213-002, RPS-501202-001, RPS-52266-001, RPS-55870-005 SD-50148-8*00 Search Parts in this Series 50148Series Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # T2 Terminator Die 0638517100 FineAdjust™ 0638617100 Applicator Extraction Tool 0638132700 Hand Crimp Tool 0638118600 Japan Description Product # Applicator for M211A 0571443000 Bench Press, for 50147 and 50148 Crimp Terminal This document was generated on 06/01/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
